Solution C: Rack Mounting Full Rack Mixer Ampliﬁer

To install a full-rack width unit, refer to Figure 2.2.5 and follow the steps below:

1. Attach the front angle brackets to each side of the front of the ampliﬁer using the

screws provided.

2. Attach the rear ﬂat brackets to each side of the rear of the ampliﬁer with the

screws provided.

3. Install the unit into the cabinet using the rack mount screws through the front

angle brackets. For details of installation in the chassis of the cabinet, refer to

the user guide of your cabinet.

4. Align the rear angle brackets with the proper holes at the rear of the cabinet and

attach using rack mount screws.

5. With the rear angle brackets to the outside of the ﬂat brackets, attach them each

using a screw passing through two washers, the rear ﬂat bracket and the rear

angle bracket as shown in the ﬁgure.

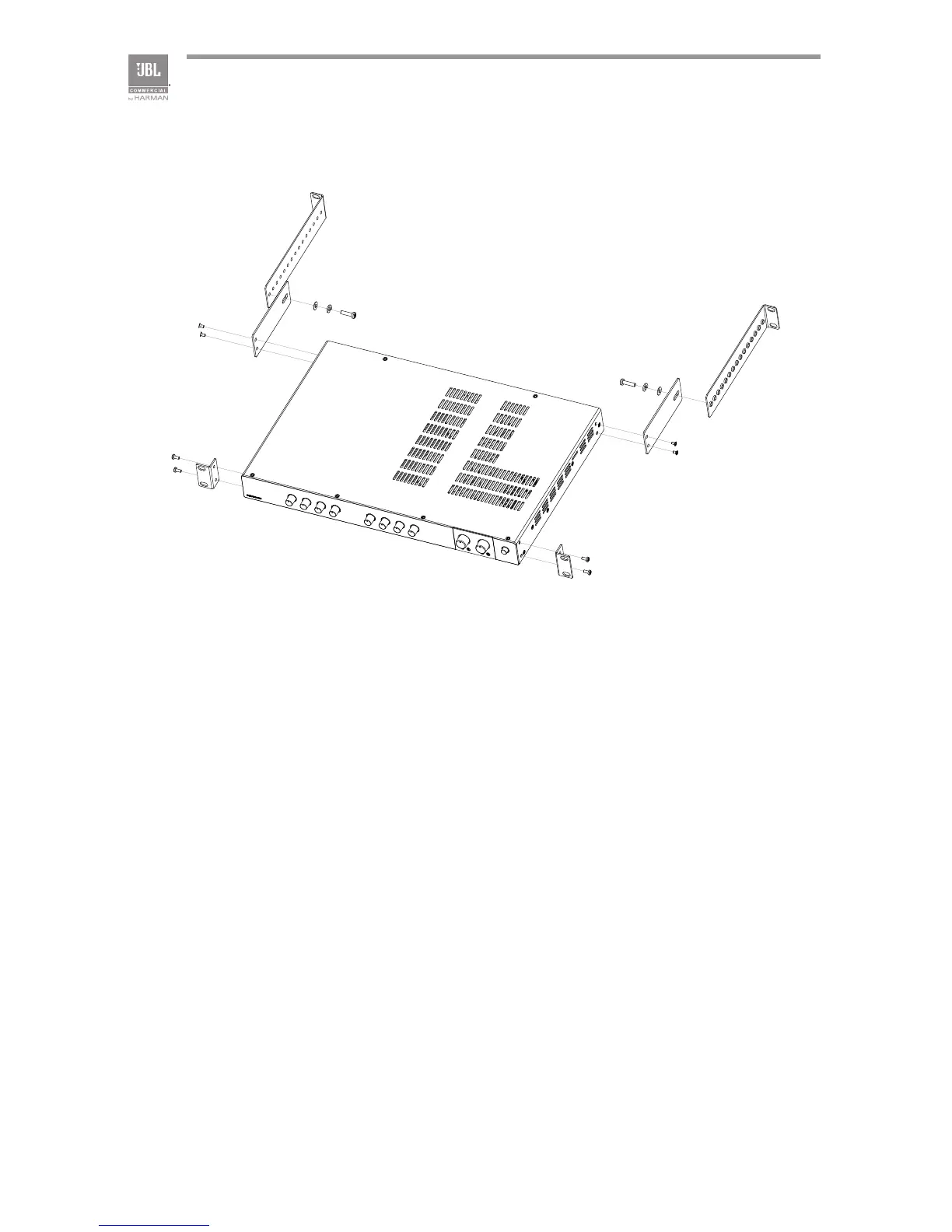

Figure 2.2.5 Rack Mounting Full Rack Mixer Ampliﬁer
