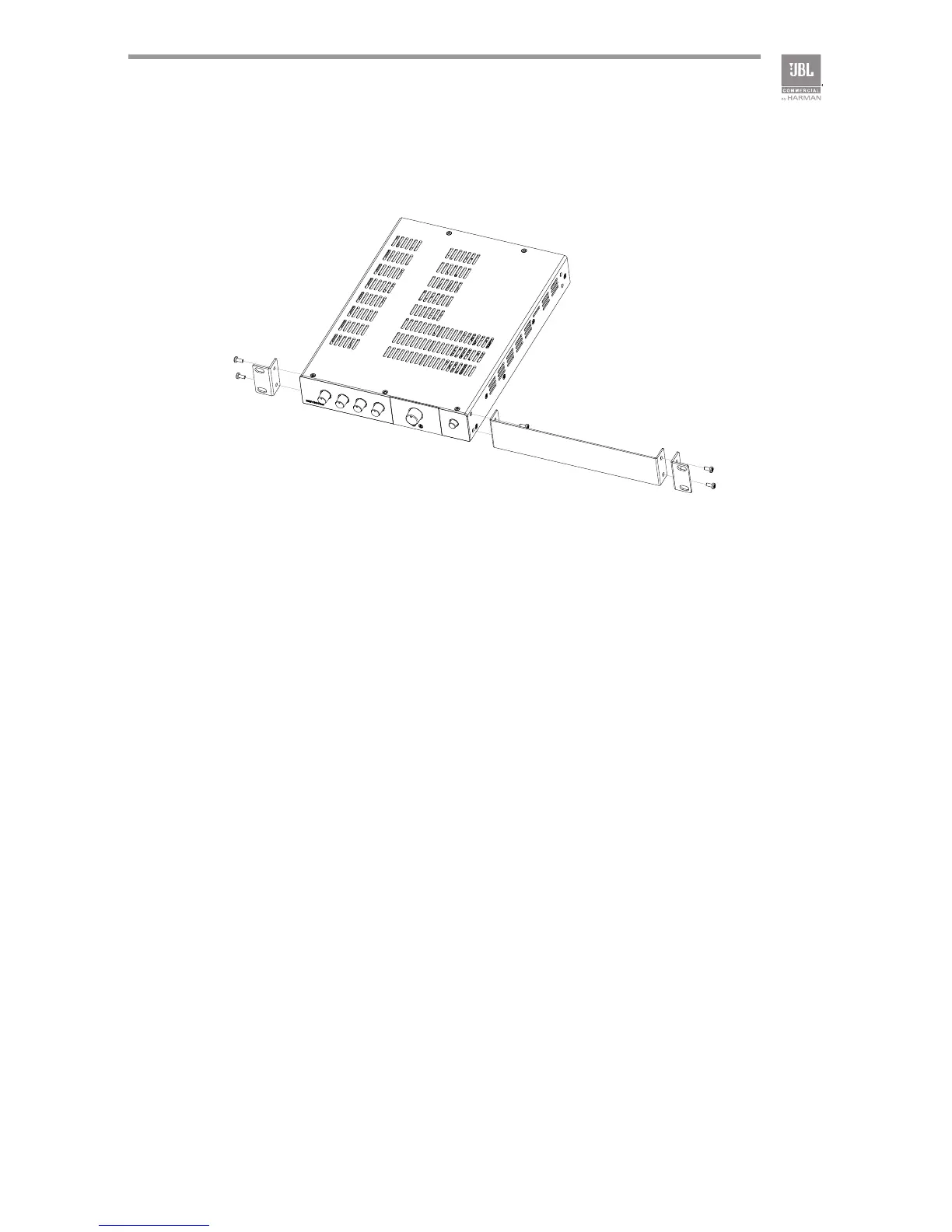

Figure 2.2.4 Rack Mounting a Half Rack Mixer Ampliﬁer

Solution B: Rack Mounting Single Half Rack Mixer Ampliﬁer

To install a single half-rack unit, refer to Figure 2.2.4 and follow the steps below:

1. Determine which side of the rack opening will be used for the ampliﬁer and

attach the long angle bracket to the other side at the front of the ampliﬁer using

the screws provided.

2. Attach the front angle brackets to each side of the front of the assembly, as

shown in the diagram, with the screws provided.

3. Install the assembly into the cabinet using the rack mount screws through the

front angle brackets. For details of installation in the chassis of the cabinet, refer

to the user guide of your cabinet.
