1. Speaker output connectors:
Connect speakers to terminals observing proper polarity: connect each speaker’s positive (+) lead to the appropriate positive (+) terminal, and negative (-)
lead to the appropriate negative (-) terminal.
• The GTR-102 features L+, L-, R+, and R- terminals

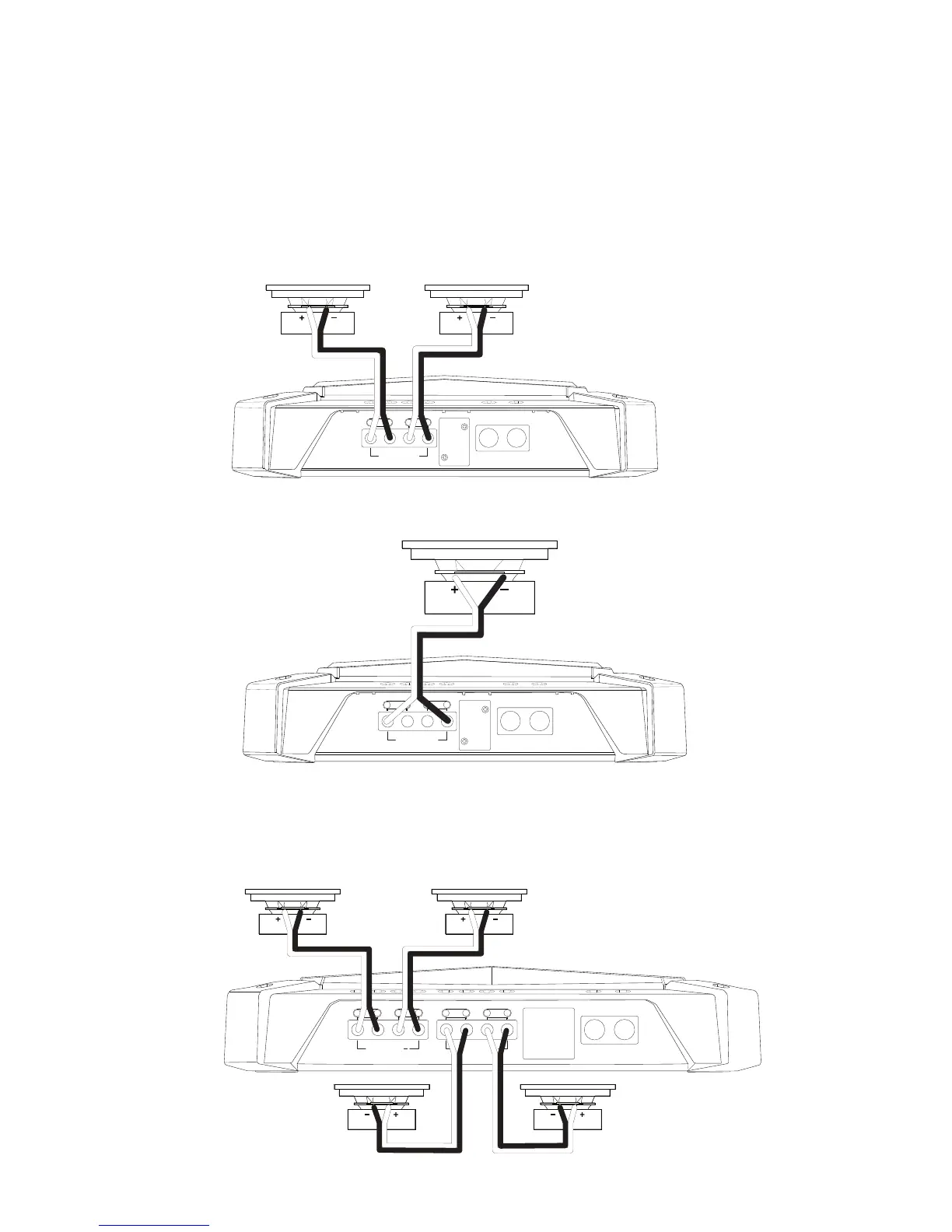

◆ For 2-channel operation connect the left speaker to the L+ and L- terminals, and right speaker to the Front R+ and R- terminals.
◆ For mono (bridged) operation connect the speaker’s positive (+) lead to the L+ terminal, and the negative (-) lead to the R- terminal.
• The GTR-104 features Front L+, L-, R+, and R- terminals, and Rear L+, L-, R+, and R- terminals.
◆ For 4-channel operation connect the front left speaker to the Front L+ and L- terminals, and front right speaker to the Front R+ and R- terminals.
Connect the rear left speaker to the Rear L+ and L- terminals, and rear right speaker to the Rear R+ and R- terminals.
—
+
