JBL GX-A3001 Service Manual

12

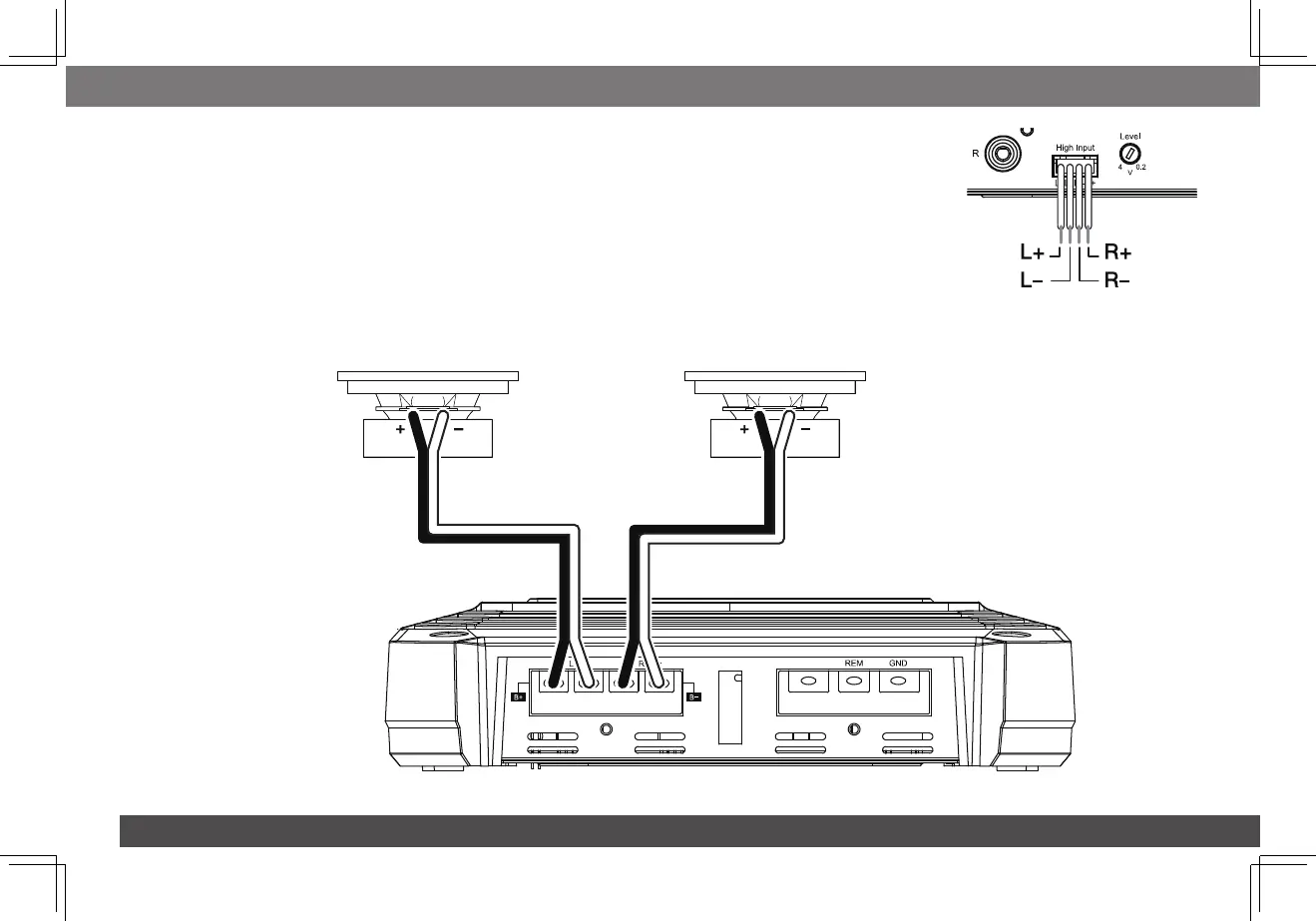

usIng the speaker-leVel Inputs
If your source unit doesn’t have line-level outputs you can use the included speaker-level input harness to connect
theamplifiertothesourceunit’sspeakeroutputs.Fromlefttoright,theconductorsare:L+,L–,R–,R+(seethe
illustration to the right). The speaker-level connectors on all GX-series amp models follow this wiring configuration.
Follow the instructions in the previous sections, substituting the speaker-level connectors for the line-level
connectors.
gX-a602 speaker connectIons; 2-channel operatIon
Minimum speaker impedance: 2 ohms (each)
ConnecttheleftandrightspeakerstotheFLandFR(+)and(–)terminals.
Fuse 25A
+12V
Speaker
Front Left Speaker Front Right Speaker

JBL GX-A3001 Specifications

General

Amplifier class	-
Frequency range	10 - 320 Hz
Audio output channels	1.0 channels
Peak power per channel	415 W
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (2 Ohm)	300 W
RMS power output per channel (4 Ohm)	200 W
DC-in jack	Yes
Line inputs (RCA)	2
Speakers connectivity type	RCA
Product color	Black

Weight and Dimensions

Depth	52 mm
Width	206 mm
Height	291 mm
