gX-a602 Input connectIons: 2-channel operatIon

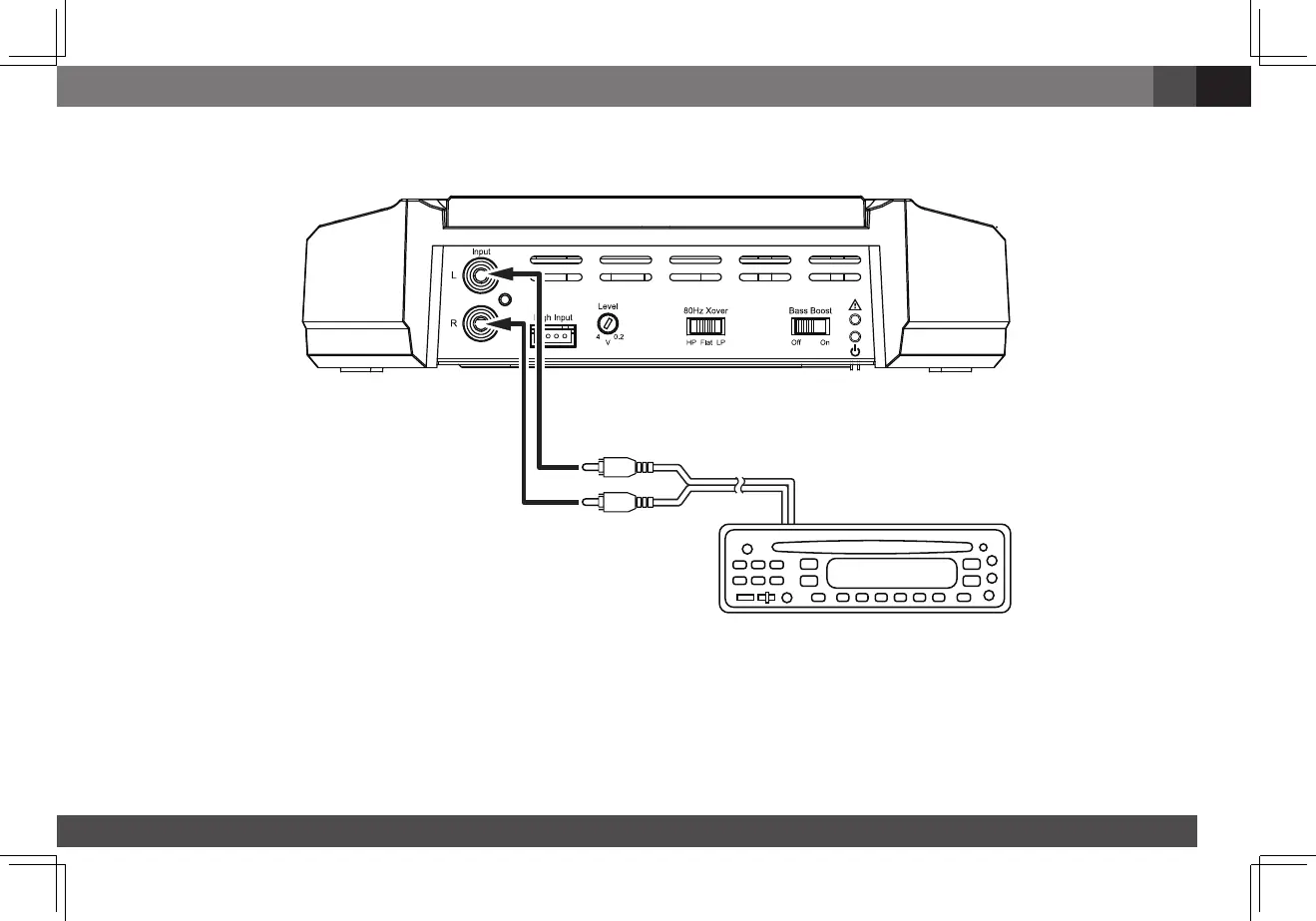

Connectyoursourceunitorprocessor’slineoutputsasshownintheillustrationbelow.
L+L–R–R+
Line Outputs
Source Unit
See Set The Crossover Controls, onpage20,forinformationaboutsettingtheamplifier’scontrolsfor2-channeloperation.
To use the speaker level inputs instead of the line-level inputs, see Using The Speaker-Level Inputs, on page 12.
