JBL GX-A3001 Service Manual

14
gX-a602 speaker connectIons: brIdged operatIon

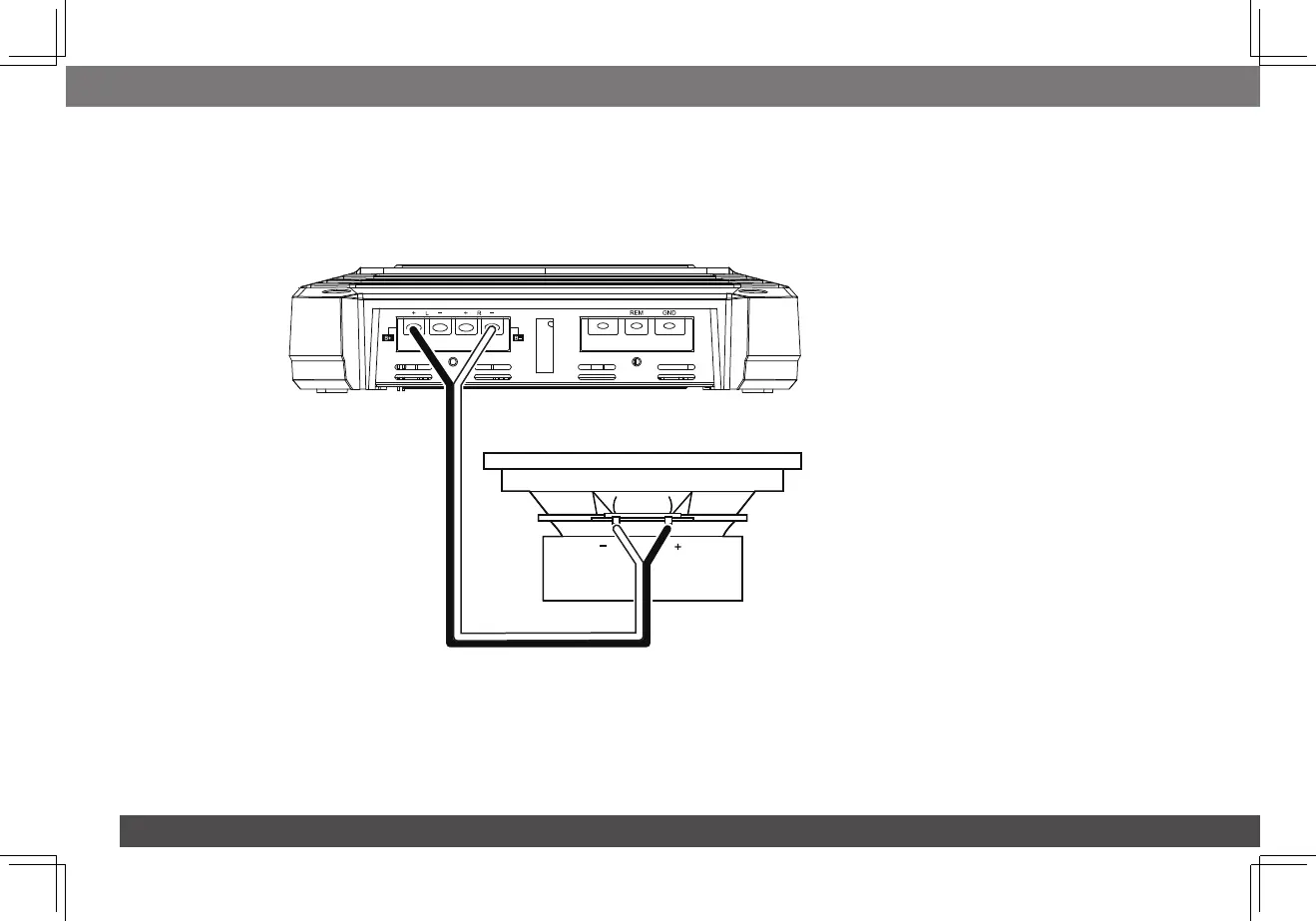

Bridged operation provides a single high-power channel for a subwoofer
Minimum speaker impedance: 4 ohms
ConnectthesubwoofertotheRL(+)andRR(–)terminals.NOTE: You can connect two 2-ohm subwoofers in series to maintain the required 4-ohm
impedance for bridged operation.
Fuse 25A
+12V
Speaker
Subwoofer

JBL GX-A3001 Specifications

General

Amplifier class	-
Frequency range	10 - 320 Hz
Audio output channels	1.0 channels
Peak power per channel	415 W
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (2 Ohm)	300 W
RMS power output per channel (4 Ohm)	200 W
DC-in jack	Yes
Line inputs (RCA)	2
Speakers connectivity type	RCA
Product color	Black

Weight and Dimensions

Depth	52 mm
Width	206 mm
Height	291 mm
