gX-a602 Input connectIons: brIdged operatIon

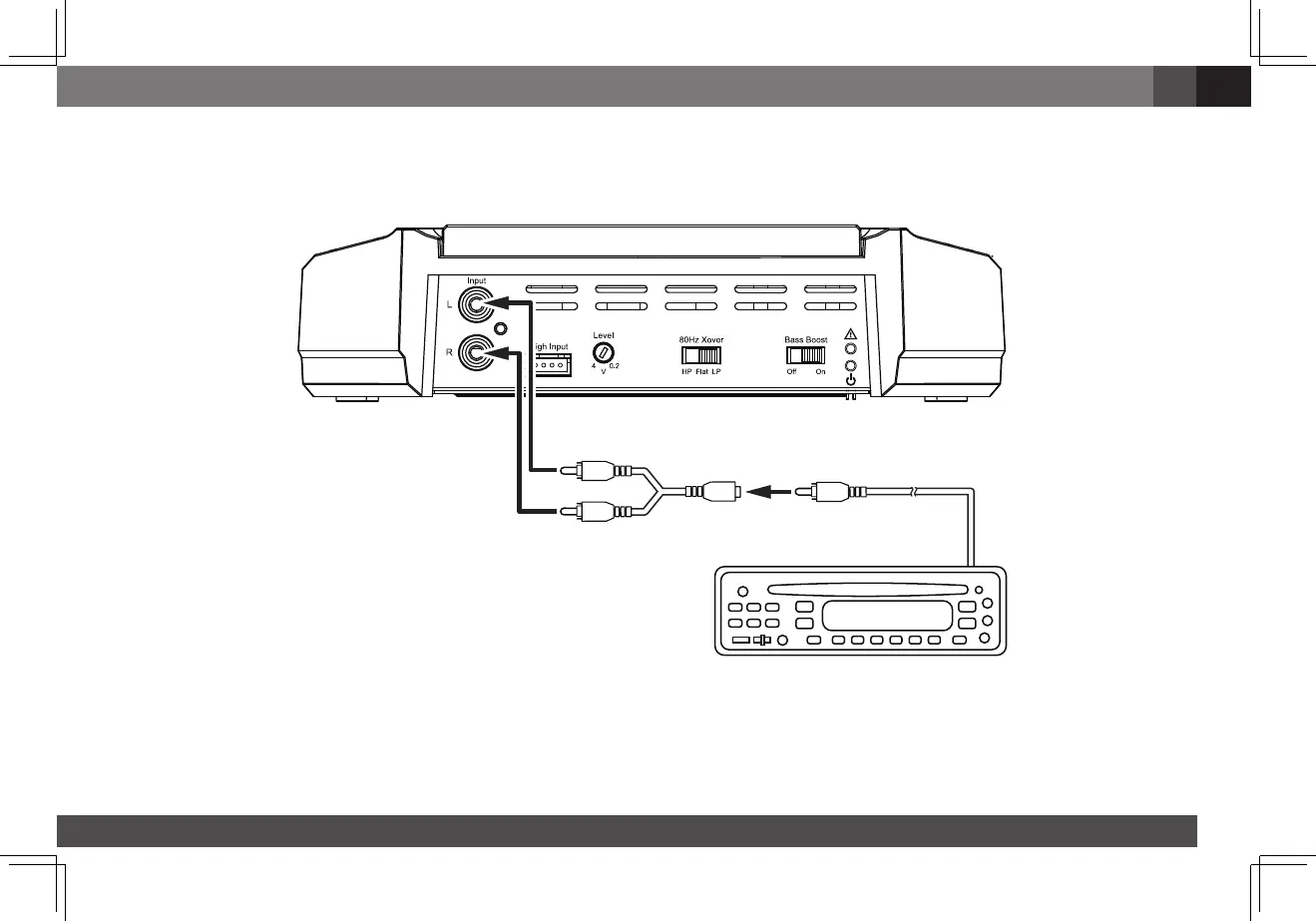

Connectyoursourceunitorprocessor’ssubwooferlineoutputtotheamplifier’sleftinput,asshownintheillustrationbelow.
NOTE: Usea"Y"-adaptertoconnectthesourceunittotheamplifier’sleftandrightinputjacks.
L+L–R–R+
Source Unit
"Y"-Adapter
Subwoofer
Output
See Set The Crossover Controls, onpage20,forinformationaboutsettingtheamplifier’scontrolsforbridgedoperation.
To use the speaker-level inputs instead of the line-level inputs, see Using The Speaker-Level Inputs, on page 12.

JBL GX-A3001 Specifications

General

Amplifier class	-
Frequency range	10 - 320 Hz
Audio output channels	1.0 channels
Peak power per channel	415 W
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (2 Ohm)	300 W
RMS power output per channel (4 Ohm)	200 W
DC-in jack	Yes
Line inputs (RCA)	2
Speakers connectivity type	RCA
Product color	Black

Weight and Dimensions

Depth	52 mm
Width	206 mm
Height	291 mm
