JBL GX-A602 Service Manual

12
usIng the speaker-leVel Inputs
If your source unit doesn’t have line-level outputs you can use the included speaker-level input harness to connect
theamplifiertothesourceunit’sspeakeroutputs.Fromlefttoright,theconductorsare:L+,L–,R–,R+(seethe
illustration to the right). The speaker-level connectors on all GX-series amp models follow this wiring configuration.
Follow the instructions in the previous sections, substituting the speaker-level connectors for the line-level
connectors.

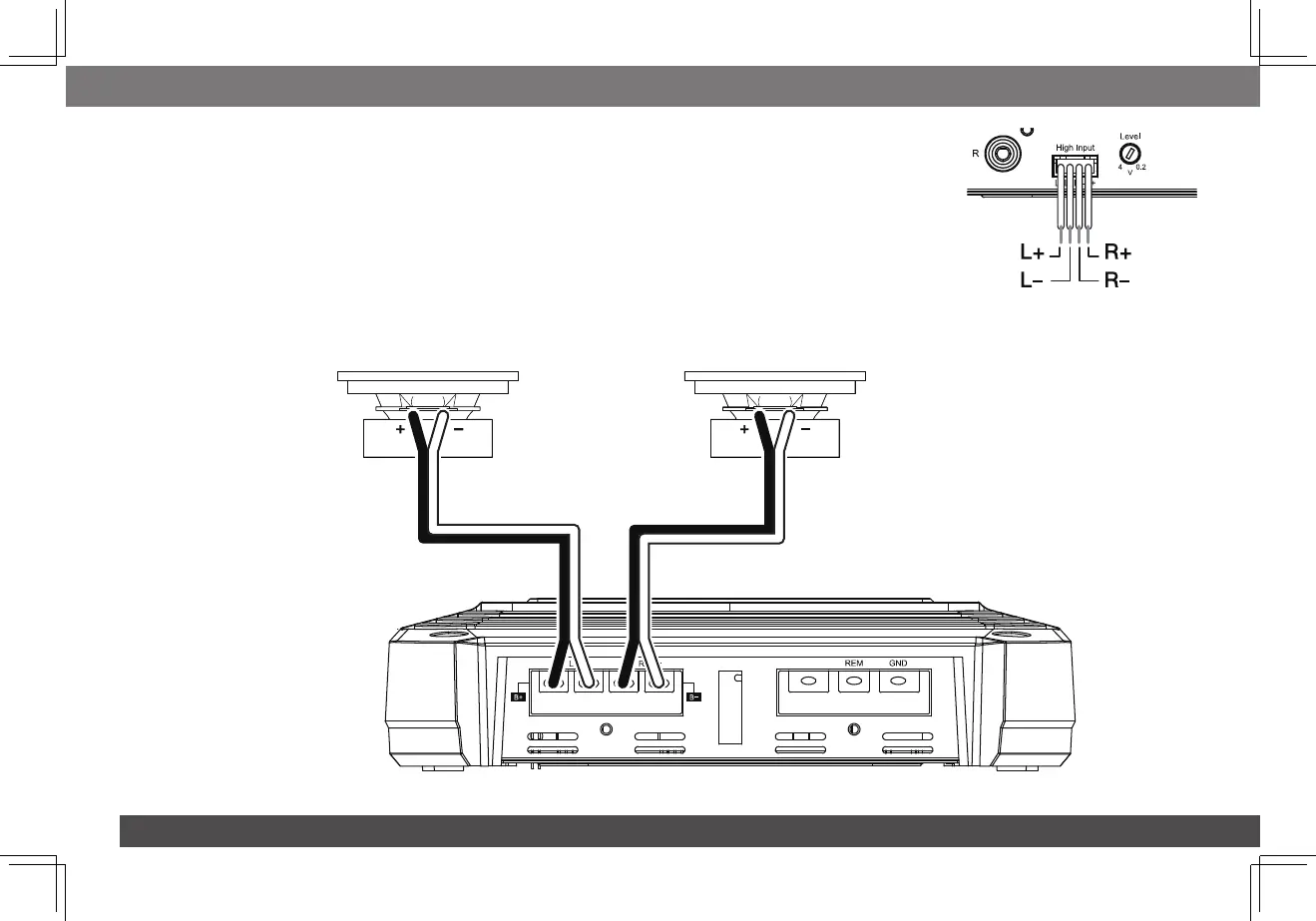

gX-a602 speaker connectIons; 2-channel operatIon
Minimum speaker impedance: 2 ohms (each)
ConnecttheleftandrightspeakerstotheFLandFR(+)and(–)terminals.
Fuse 25A
+12V
Speaker
Front Left Speaker Front Right Speaker

JBL GX-A602 Specifications

General

Signal-to-Noise Ratio (SNR)	93 dB
Number of amplifier channels	2 channels
Frequency response	20 Hz
