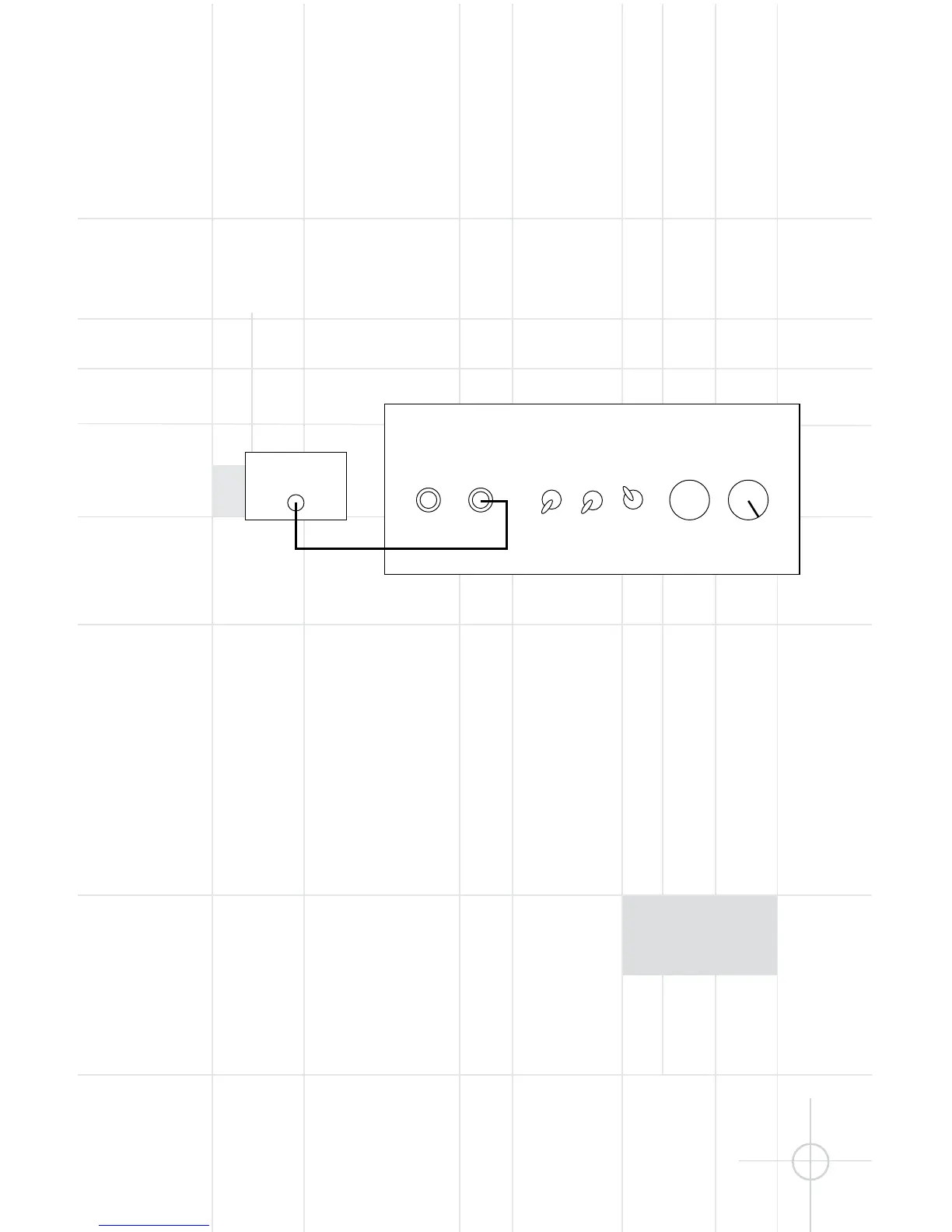

Normal Mode:
Use this hookup for all non-
THX processors, including
Dolby* Digital, DTS
®
, Dolby
Pro Logic* or stereo.
Note: If using Dolby Digital or
DTS, set the crossover
frequency knob fully clockwise
to the maximum position. Make
sure the THX/Normal switch is
in the Normal position.
.
Subwoofer
Out
Receiver/Amplifier
OFF
AUTO
ON
OUT
IN
0
° THX
180
°
NORMAL
MIN.
MAX.
50Hz
150Hz
GREEN–ON
RED–STANDBY
LINE
PHASE
GAIN
CROSSOVER
EQ
Note: Some receivers/
processors have stereo
subwoofer outputs. In that
case, you must use a “Y”-
connector (not included) in
order to maximize the
subwoofer’s performance.
