JBL/Infinity Soundbar Quick-Start Guide


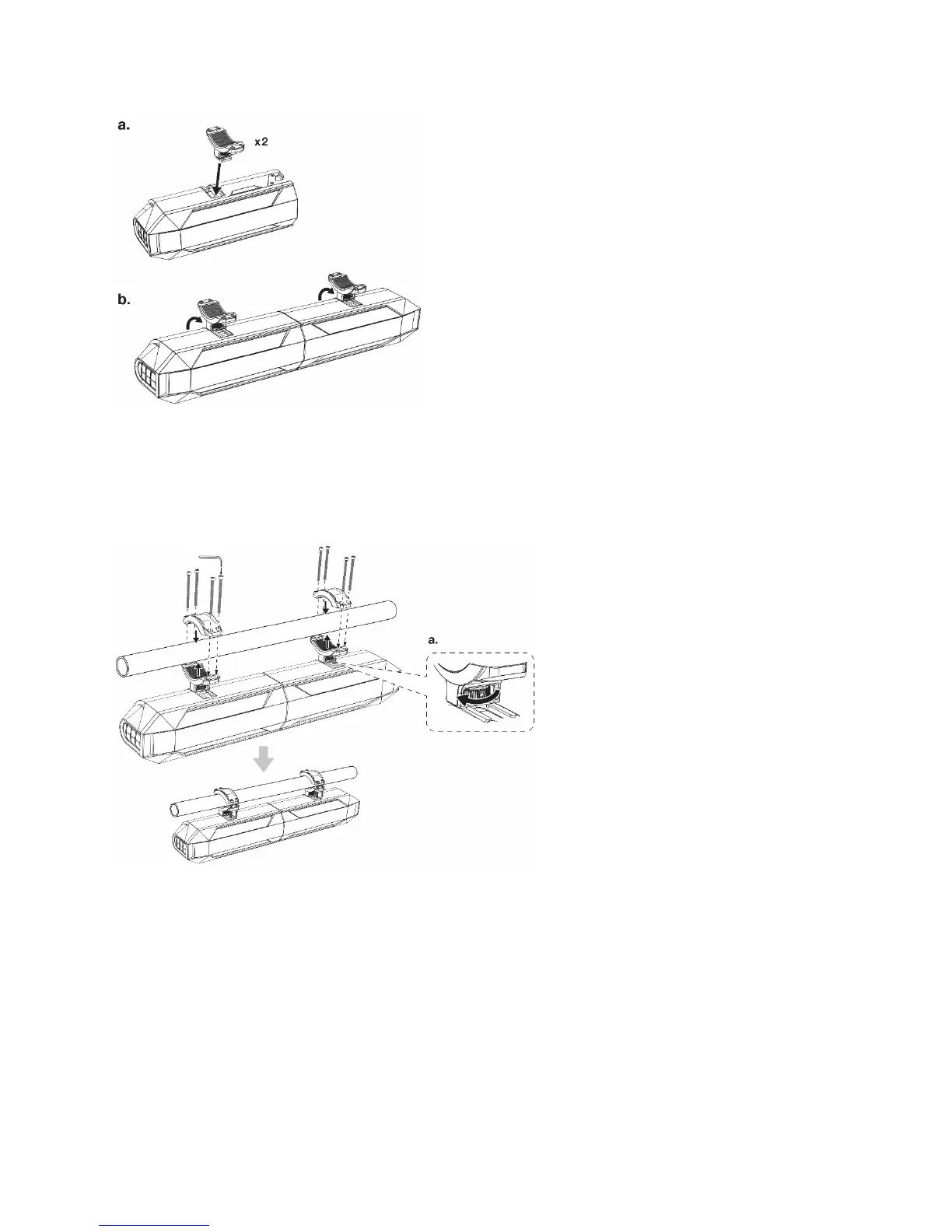

2.Positionthesoundbarinthedesiredlocationagainstthevehiclemountingbar.Use4ofthesupplied
mountingbracketboltstosecureeachbrackettoptoabracketbase.(Two setsofboltsaresupplied,
allowingthesoundbartobemountedtopipesuptoXXXindiameter.)
a.
Whenthesoundbarisinthecorrectposition,tightenthemountingbracketadjustmentscrews.
[Insertillustration:“Mounting_2_082816.ai]

3.Installthe2safetyharnessassemblies[TBD]
Ground,Power,IlluminationandRemoteConnections
IMPORTANT:Disconnectthevehicle’snegative(–)batteryterminalbeforebeginningtheinstallation.
Connectthesoundbar’s+12Vpower(red),ground(black),illumination(orange)andremoteturn‐on
(blue)wiresasshownbelow.
 Usesandpapertoclearthepaintfromthemetalsurfaceatthegroundconnection.Useastar‐type
lock
washertosecuretheconnection.
 Installafuseholderfora40Afuseonthepower(12V)wirewithin18”(46cm)ofthe(+)battery
terminal.Donotinstallthefuseintheholderatthistime.
