JBL LSR User Manual

22

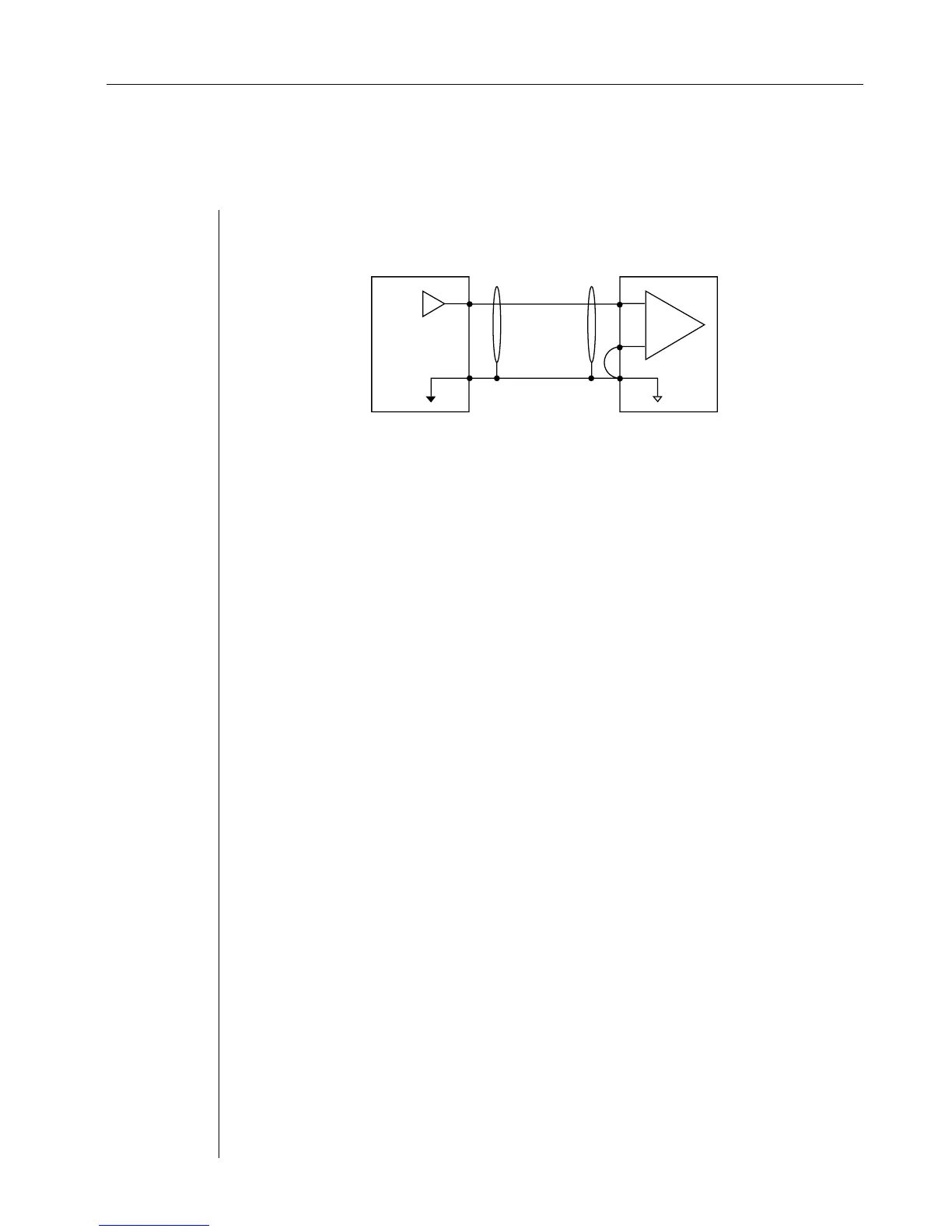

Figure E details the connections using unbalanced cable and Tip/Sleeve connections to the 1/4”
input. In this mode, the Ring and Sleeve of the LSR input are shorted by the plug automatically.
Unbalanced Figure E
Tip
Sleeve
Tip
Ring
Sleeve
+ +
-
LSR T/R/S InputUnbalanced Source
Unbalanced Tip/Sleeve Connectors
short the Ring and Sleeve Automatically

JBL LSR Specifications

General

Brand	JBL
Model	LSR
Category	Speakers
Language	English
