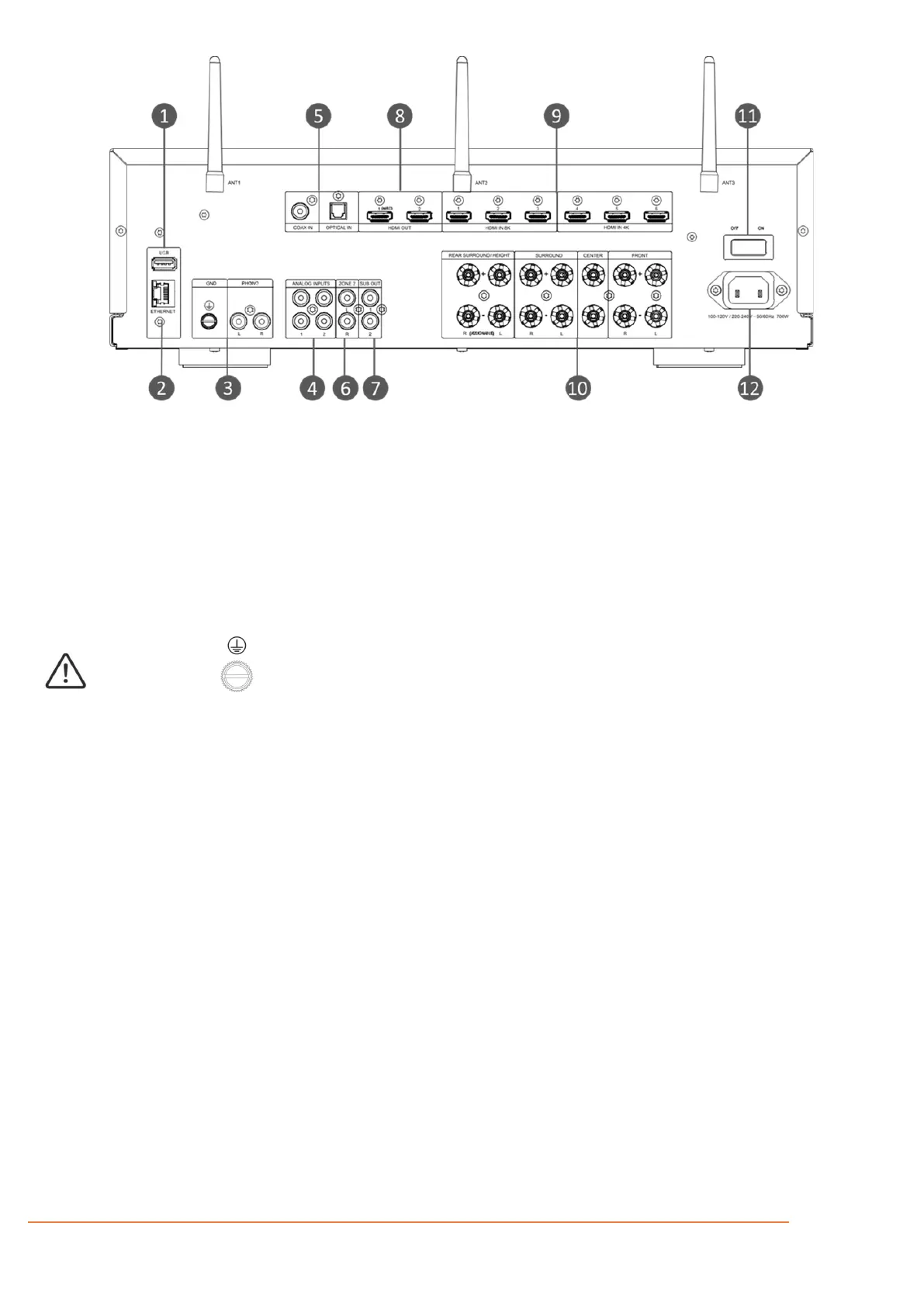

Rear Panel
*MA7100HP shown
1. USB Input
2. Ethernet Socket
3. Phono Input and Ground
4. Analog Inputs
5. Digital Inputs
6. Zone 2 “PARTY” Output
7. Subwoofer Outputs
8. HDMI Outputs
9. HDMI Inputs
10. Speaker Level Output Connectors
11. Power Switch
12. Power Input
Phono Ground This terminal must not be used as a safety earth.
