JBL SDP-5 - Page 60

SETUP
SDP-5
3-21
S-VIDEO 16:9 AUTO, OFF
Controls the passage of anamorphic trigger signals present in some
video sources. When set to AUTO, the SDP-5 allows anamorphic
video input signals to pass through the S-video switcher, enabling
compatible display devices to automatically switch between
anamorphic and non-anamorphic display modes. When set to OFF,
the SDP-5 prevents anamorphic video input signals from passing
through the S-video switcher, preventing compatible display
devices from automatically switching between anamorphic and
non-anamorphic display modes.
. . . MAIN ADVANCED continues on page 3-22
S-VIDEO 16:9

MAIN ADVANCED

DVD1

INPUTS

SETUP
DVD1 INPUT SETUP
NAME DVD1
DIGITAL IN COAX-1
ANALOG IN NONE
ANLG IN LVL +0dB
VIDEO IN S-VIDEO-1
COMPONENT IN 1
2-CH L7 FILM
%!D 5.1 L7 FILM
DTS-ES DTS-ES L7 FILM
MAIN ADVANCED
ZONE2 IN DIGITAL

MAIN ADVANCED
MAIN MENU
MODE ADJUST
AUDIO CONTROLS
SETUP
SETUP

SETUP
INPUTS
SPEAKERS
REAR PANEL CONFIG
DISPLAYS
VOLUME CONTROLS
TRIGGER
LOCK OPTIONS
INPUT SETUP
DVD1
DVD2
SAT
VCR
TV
CD
TUNER
AUX
INPUTS DVD1

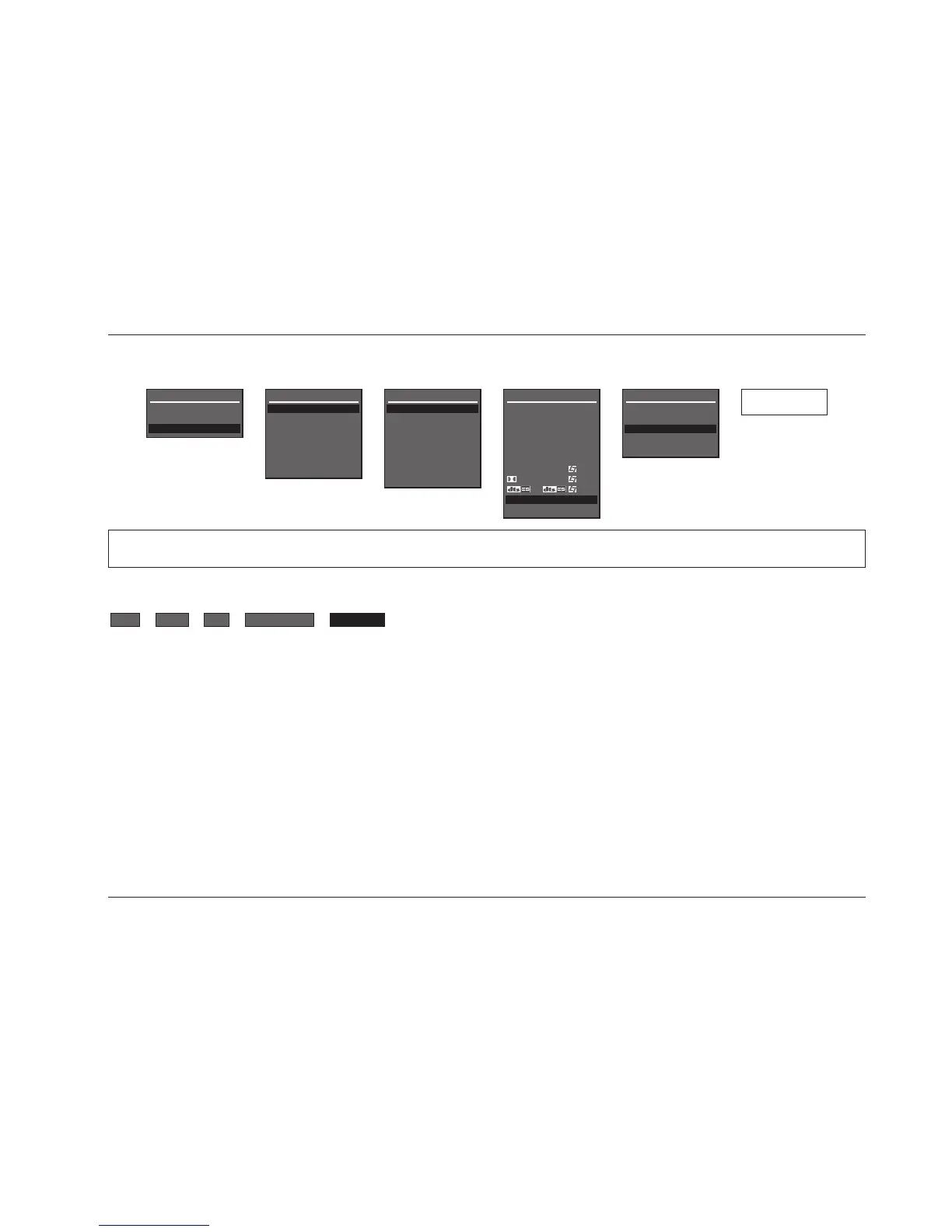

The DVD1 INPUT SETUP menu is shown here as an example, and will continue to be shown as an example throughout this section. Whenever it appears, any other INPUT SETUP menu
may be substituted. Likewise, whenever the DVD1 input appears as a step in a menu path, any other input may be substituted.
DVD1 MAIN ADV
INPUT SELECT DIGITAL
2-CH ANLG BYP OFF
S-VIDEO 16:9 AUTO
S-VIDEO OSD 4:3 ON
COMPONENT OSD OFF
S-VIDEO 16:9 AUTO

AUTO
OFF
