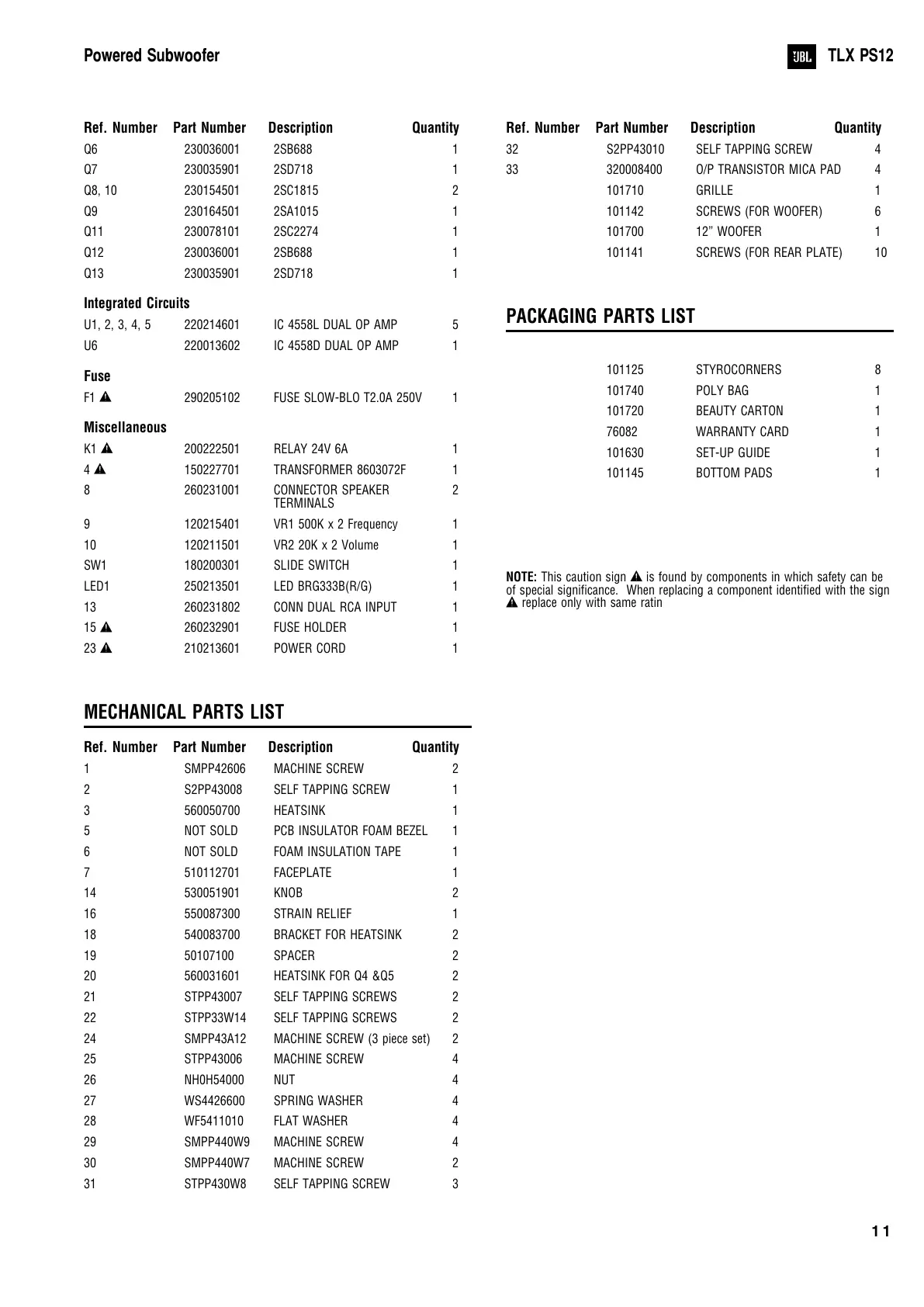

Powered Subwoofer TLX PS12
Ref. Number Part Number Description Quantity
Q6 230036001 2SB688 1
Q7 230035901 2SD718 1
Q8, 10 230154501 2SC1815 2
Q9 230164501 2SA1015 1
Q11 230078101 2SC2274 1
Q12 230036001 2SB688 1
Q13 230035901 2SD718 1
Integrated Circuits
U1, 2, 3, 4, 5 220214601 IC 4558L DUAL OP AMP 5
U6 220013602 IC 4558D DUAL OP AMP 1
Fuse
F1 290205102 FUSE SLOW-BLO T2.0A 250V 1
Miscellaneous
K1 200222501 RELAY 24V 6A 1
4 150227701 TRANSFORMER 8603072F 1
8 260231001 CONNECTOR SPEAKER 2
TERMINALS
9 120215401 VR1 500K x 2 Frequency 1
10 120211501 VR2 20K x 2 Volume 1
SW1 180200301 SLIDE SWITCH 1
LED1 250213501 LED BRG333B(R/G) 1
13 260231802 CONN DUAL RCA INPUT 1
15 260232901 FUSE HOLDER 1
23 210213601 POWER CORD 1
MECHANICAL PARTS LIST
Ref. Number Part Number Description Quantity
1 SMPP42606 MACHINE SCREW 2
2 S2PP43008 SELF TAPPING SCREW 1
3 560050700 HEATSINK 1
5 NOT SOLD PCB INSULATOR FOAM BEZEL 1
6 NOT SOLD FOAM INSULATION TAPE 1
7 510112701 FACEPLATE 1
14 530051901 KNOB 2
16 550087300 STRAIN RELIEF 1
18 540083700 BRACKET FOR HEATSINK 2
19 50107100 SPACER 2
20 560031601 HEATSINK FOR Q4 &Q5 2
21 STPP43007 SELF TAPPING SCREWS 2
22 STPP33W14 SELF TAPPING SCREWS 2
24 SMPP43A12 MACHINE SCREW (3 piece set) 2
25 STPP43006 MACHINE SCREW 4
26 NH0H54000 NUT 4
27 WS4426600 SPRING WASHER 4
28 WF5411010 FLAT WASHER 4
29 SMPP440W9 MACHINE SCREW 4
30 SMPP440W7 MACHINE SCREW 2
31 STPP430W8 SELF TAPPING SCREW 3
Ref. Number Part Number Description Quantity
32 S2PP43010 SELF TAPPING SCREW 4
33 320008400 O/P TRANSISTOR MICA PAD 4
101710 GRILLE 1
101142 SCREWS (FOR WOOFER) 6
101700 12” WOOFER 1
101141 SCREWS (FOR REAR PLATE) 10
PACKAGING PARTS LIST
101125 STYROCORNERS 8
101740 POLY BAG 1
101720 BEAUTY CARTON 1
76082 WARRANTY CARD 1
101630 SET-UP GUIDE 1
101145 BOTTOM PADS 1
NOTE: This caution sign is found by components in which safety can be
of special significance. When replacing a component identified with the sign
replace only with same ratin
