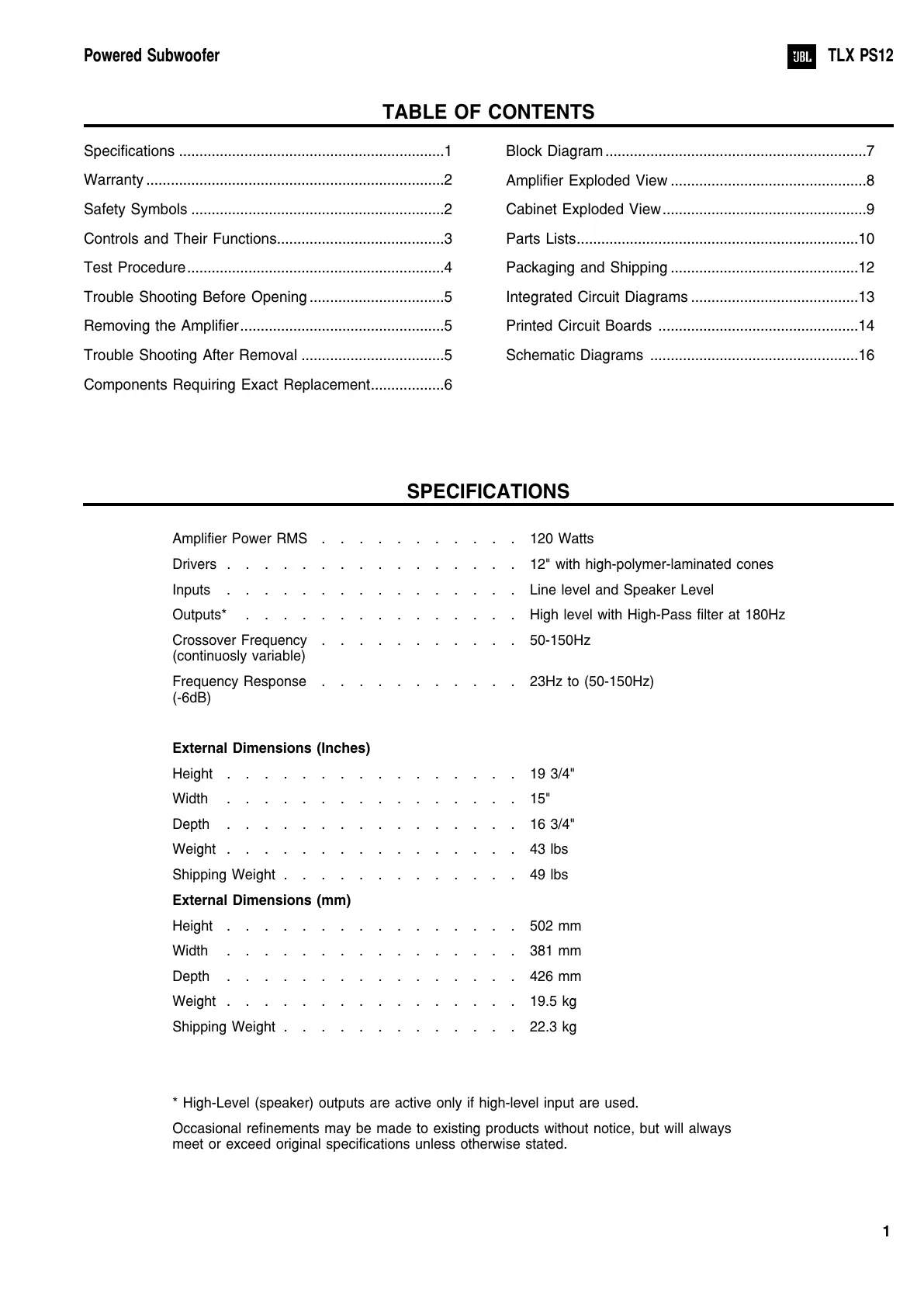

JBL TLX PS12 - Table of Contents; Specifications

1
Powered Subwoofer TLX PS12
TABLE OF CONTENTS
Specifications .................................................................1
Warranty .........................................................................2
Safety Symbols ..............................................................2
Controls and Their Functions.........................................3
Test Procedure...............................................................4
Trouble Shooting Before Opening .................................5
Removing the Amplifier..................................................5
Trouble Shooting After Removal ...................................5
Components Requiring Exact Replacement..................6
Block Diagram ................................................................7
Amplifier Exploded View ................................................8
Cabinet Exploded View..................................................9
Parts Lists.....................................................................10
Packaging and Shipping ..............................................12
Integrated Circuit Diagrams .........................................13
Printed Circuit Boards .................................................14
Schematic Diagrams ...................................................16
SPECIFICATIONS
Amplifier Power RMS ...........120Watts
Drivers ................12"with high-polymer-laminated cones
Inputs ................Line level and Speaker Level
Outputs* ...............High level with High-Pass filter at 180Hz
Crossover Frequency ...........50-150Hz
(continuosly variable)
Frequency Response ...........23Hz to (50-150Hz)
(-6dB)
External Dimensions (Inches)
Height ................193/4"
Width ................15"
Depth ................163/4"
Weight ................43lbs
Shipping Weight .............49lbs
External Dimensions (mm)
Height ................502mm
Width ................381mm
Depth ................426mm
Weight ................19.5 kg
Shipping Weight .............22.3 kg
* High-Level (speaker) outputs are active only if high-level input are used.
Occasional refinements may be made to existing products without notice, but will always
meet or exceed original specifications unless otherwise stated.
