Powered Subwoofer TLX PS12

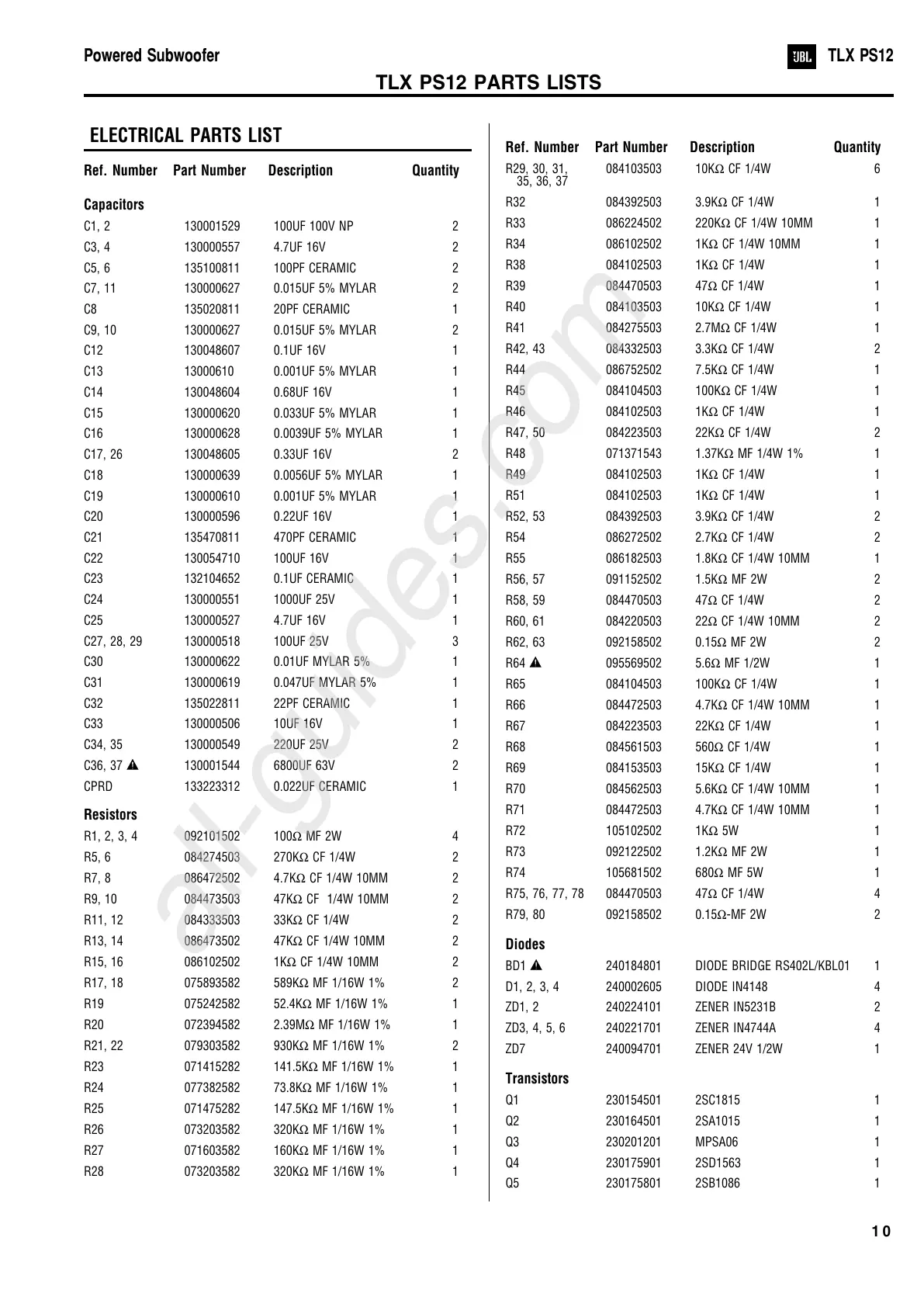

ELECTRICAL PARTS LIST
Ref. Number Part Number Description Quantity
Capacitors
C1, 2 130001529 100UF 100V NP 2
C3, 4 130000557 4.7UF 16V 2
C5, 6 135100811 100PF CERAMIC 2
C7, 11 130000627 0.015UF 5% MYLAR 2
C8 135020811 20PF CERAMIC 1
C9, 10 130000627 0.015UF 5% MYLAR 2
C12 130048607 0.1UF 16V 1
C13 13000610 0.001UF 5% MYLAR 1
C14 130048604 0.68UF 16V 1
C15 130000620 0.033UF 5% MYLAR 1
C16 130000628 0.0039UF 5% MYLAR 1
C17, 26 130048605 0.33UF 16V 2
C18 130000639 0.0056UF 5% MYLAR 1
C19 130000610 0.001UF 5% MYLAR 1
C20 130000596 0.22UF 16V 1
C21 135470811 470PF CERAMIC 1
C22 130054710 100UF 16V 1
C23 132104652 0.1UF CERAMIC 1
C24 130000551 1000UF 25V 1
C25 130000527 4.7UF 16V 1
C27, 28, 29 130000518 100UF 25V 3
C30 130000622 0.01UF MYLAR 5% 1
C31 130000619 0.047UF MYLAR 5% 1
C32 135022811 22PF CERAMIC 1
C33 130000506 10UF 16V 1
C34, 35 130000549 220UF 25V 2
C36, 37 130001544 6800UF 63V 2
CPRD 133223312 0.022UF CERAMIC 1
Resistors
R1, 2, 3, 4 092101502 100Ω MF 2W 4
R5, 6 084274503 270KΩ CF 1/4W 2
R7, 8 086472502 4.7KΩ CF 1/4W 10MM 2
R9, 10 084473503 47KΩ CF 1/4W 10MM 2
R11, 12 084333503 33KΩ CF 1/4W 2
R13, 14 086473502 47KΩ CF 1/4W 10MM 2
R15, 16 086102502 1KΩ CF 1/4W 10MM 2
R17, 18 075893582 589KΩ MF 1/16W 1% 2
R19 075242582 52.4KΩ MF 1/16W 1% 1
R20 072394582 2.39MΩ MF 1/16W 1% 1
R21, 22 079303582 930KΩ MF 1/16W 1% 2
R23 071415282 141.5KΩ MF 1/16W 1% 1
R24 077382582 73.8KΩ MF 1/16W 1% 1
R25 071475282 147.5KΩ MF 1/16W 1% 1
R26 073203582 320KΩ MF 1/16W 1% 1
R27 071603582 160KΩ MF 1/16W 1% 1
R28 073203582 320KΩ MF 1/16W 1% 1
Ref. Number Part Number Description Quantity
R29, 30, 31, 084103503 10KΩ CF 1/4W 6
35, 36, 37
R32 084392503 3.9KΩ CF 1/4W 1
R33 086224502 220KΩ CF 1/4W 10MM 1
R34 086102502 1KΩ CF 1/4W 10MM 1
R38 084102503 1KΩ CF 1/4W 1
R39 084470503 47Ω CF 1/4W 1
R40 084103503 10KΩ CF 1/4W 1
R41 084275503 2.7MΩ CF 1/4W 1
R42, 43 084332503 3.3KΩ CF 1/4W 2
R44 086752502 7.5KΩ CF 1/4W 1
R45 084104503 100KΩ CF 1/4W 1
R46 084102503 1KΩ CF 1/4W 1
R47, 50 084223503 22KΩ CF 1/4W 2
R48 071371543 1.37KΩ MF 1/4W 1% 1
R49 084102503 1KΩ CF 1/4W 1
R51 084102503 1KΩ CF 1/4W 1
R52, 53 084392503 3.9KΩ CF 1/4W 2
R54 086272502 2.7KΩ CF 1/4W 2
R55 086182503 1.8KΩ CF 1/4W 10MM 1
R56, 57 091152502 1.5KΩ MF 2W 2
R58, 59 084470503 47Ω CF 1/4W 2
R60, 61 084220503 22Ω CF 1/4W 10MM 2
R62, 63 092158502 0.15Ω MF 2W 2
R64 095569502 5.6Ω MF 1/2W 1
R65 084104503 100KΩ CF 1/4W 1
R66 084472503 4.7KΩ CF 1/4W 10MM 1
R67 084223503 22KΩ CF 1/4W 1
R68 084561503 560Ω CF 1/4W 1
R69 084153503 15KΩ CF 1/4W 1
R70 084562503 5.6KΩ CF 1/4W 10MM 1
R71 084472503 4.7KΩ CF 1/4W 10MM 1
R72 105102502 1KΩ 5W 1
R73 092122502 1.2KΩ MF 2W 1
R74 105681502 680Ω MF 5W 1
R75, 76, 77, 78 084470503 47Ω CF 1/4W 4
R79, 80 092158502 0.15Ω-MF 2W 2
Diodes
BD1 240184801 DIODE BRIDGE RS402L/KBL01 1
D1, 2, 3, 4 240002605 DIODE IN4148 4
ZD1, 2 240224101 ZENER IN5231B 2
ZD3, 4, 5, 6 240221701 ZENER IN4744A 4
ZD7 240094701 ZENER 24V 1/2W 1
Transistors
Q1 230154501 2SC1815 1
Q2 230164501 2SA1015 1
Q3 230201201 MPSA06 1
Q4 230175901 2SD1563 1
Q5 230175801 2SB1086 1
