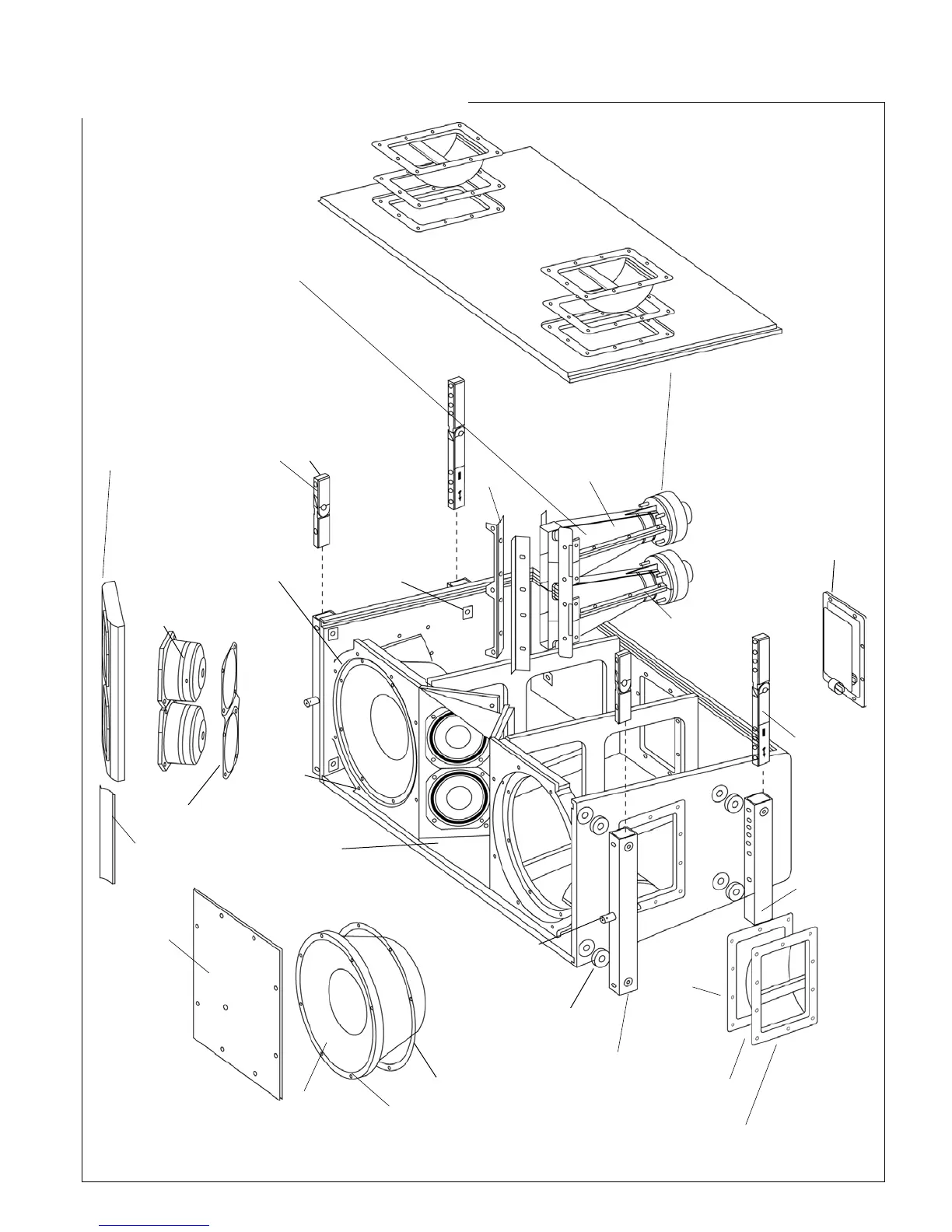

COMPONENT EXPLODED VIEW
HF Flare
351486-001
Screws (8)
881-11110-08
4 x 1/2
FLT, PH, PB,
BLK,ZINC
Screws (32)
804-72110-24
10-32 x 1
SKT, TORX,
BLK, ZINC, LCS
Screw (8)
804-42110-
12
10-32 x 3/4
PAN, TORX,
BLK ZINC,
LCS
Input
Connector
443294-001
Wire Harness
350989-001
Connector
Assembly
350988-001
Front Hinge (2)
364136-001
Rigging Bracket (8)
351922-001
Horn Bracket (2)
350782-001
Screws (6)
804-11110-16
10-32 x1
FLT, PH, BLK,
OXIDE, LCS
RBI Assy (2)
350779-001
Screw (2)
804-72110-24
10-32 x 1 1/2
SCT,TORX,
BLK ZINC,
LCS
Driver, High Freq (2)
2431H
(339894-002X)
Diaph Repl
D8R2431
Screw (8)
705-90002-14
1/4-20 x 7/8
SOCKET SET
CUP POINT
Nut (8)
834-30010-00
1/4-20
KEPS, BLK ZINC,
LCS,RIGHT
Threadlocker
69437
Locktite 242
Waveguide Gasket (2)
350841-001
Horn Gasket
Top/Bottom (2)
351415-001
Driver,Low Freq
2262H (2)
(338312-001X)
Cone Repl
C8R2262
Gasket 12” (2)
339391-001
Handle (6)
923-00022-07
Gasket (6)
382-00337-00
Handle
Screws (24)
804-42110-12
10-32 x3/4
PAN,TORX,BLK
ZINC,LCS
Screws (36)
884-42110-12
10 X 3/4
PAN, TORX, PB, BLK,
ZINC, LCS
Front Rigging
Tube (2)
350572-002
Screw (4)
338885-001
1/4 x 1
FLTHD
SOCKT GRD
8, PATCH
Dolly Lock Pin (2)
351797-002
Nut (2)
836-36110-00
3/8-24
Nylon,BLK, ZINC,
LCS
Dolly Retainer, Pin
(2) 351696-001
Rear Hinge
Assy. (2)
364137-001
Screws (4)
338885-001
1/4 x 1 FLTHD
Socket Grade
8,PATCH
Quick Release
Pin, (8)
361343-001
Rear Rigging
Tube (2)
350573-002
Driver, Mid Freq (4)
2106H
(339485-001X)
Mid-Range Gasket (2)
350819-001
Rigging
Tube Pad (8
351001-001
Grille Right
350780-001
Grille Left
350780-002
Grille Trim (2)
351526-001
Screws (16)
803-32011-04
8-32 x 1/4
TRUSS,TORX,BLK
ZINC,LCS
Grille Insert Nut (16)
350618-001
Standoff (16)
885-00082-01
8-32, 3/8
HEX 1/4, SS
H/F Grille
350827-001
Slider Knob (2)
350839-001
10-32 x 5/8
Enclosure Assy
C4888
(available to VerTec
Dealers and
Service Centers)
Screw (16)
802-11010-10
6-32 x 5/8
FLT, PH, BLK,
ZINC, LCS
Washer, Amp Mount (8)
351905-002
7/8”
(Drive Pack Attachment
only)
Screw (8)
806-42010-16
1/4-20 x 1
PAN,TORX,BLK ZINC,
LCS
(Cabinet Back)
Screw (16)
804-72110-24
10-32 x 1 1/2
SKT,TORX,BLK ZINC,
LCS
HF Center Horn
Gasket
359-00225-00
Bolt, (8)
854-00003-08
1/4-20 x 1/2
HEX, CLR, ZINC,
MCAS
External Tooth Lock
Washer (8) 1/4”
844-10100-06
REG, CLR, ZINC, CS
Washer (8)
844-01110-07
1/4,SAE,REG,BLK,
ZINC,LCS
Horn (2)
337055-001
R.A.P
354965-001
