JBL VTX Series Wiring Guide

5
c

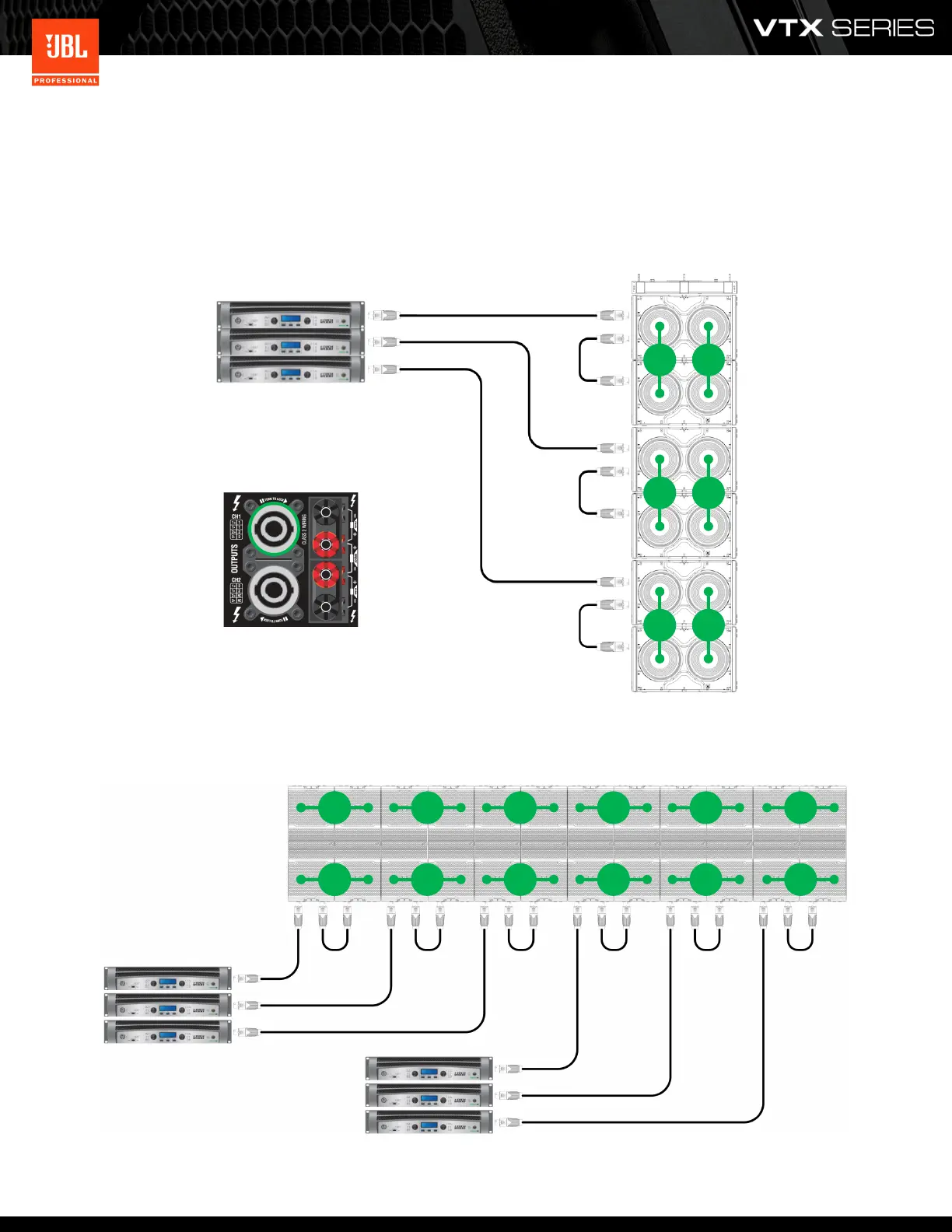

I-Tech 12000HD Standard Wiring Examples:
Standard NL4 jumper cables can be used to connect mulple subwoofer enclosures together in a daisy chain wiring
scheme. When connecng VTX subwoofers in this manner, each amplier channel powers half of the subwoofer group.
Below are some examples using VTX Subwoofers and discrete wiring:
Example: 6x VTX S25 powered by iTech 12000HD ampliers
Example: 12x VTX S28 powered by iTech 12000HD ampliers
CH1
CH2
CH1
CH2
CH1
CH2
Crown I-Tech 12000HD
CH1
CH2
CH1
CH2
CH1
CH2
CH1
CH2
CH1
CH2
CH1
CH2
CH1
CH2
