1
2
M
[6] [7][7]
[6]

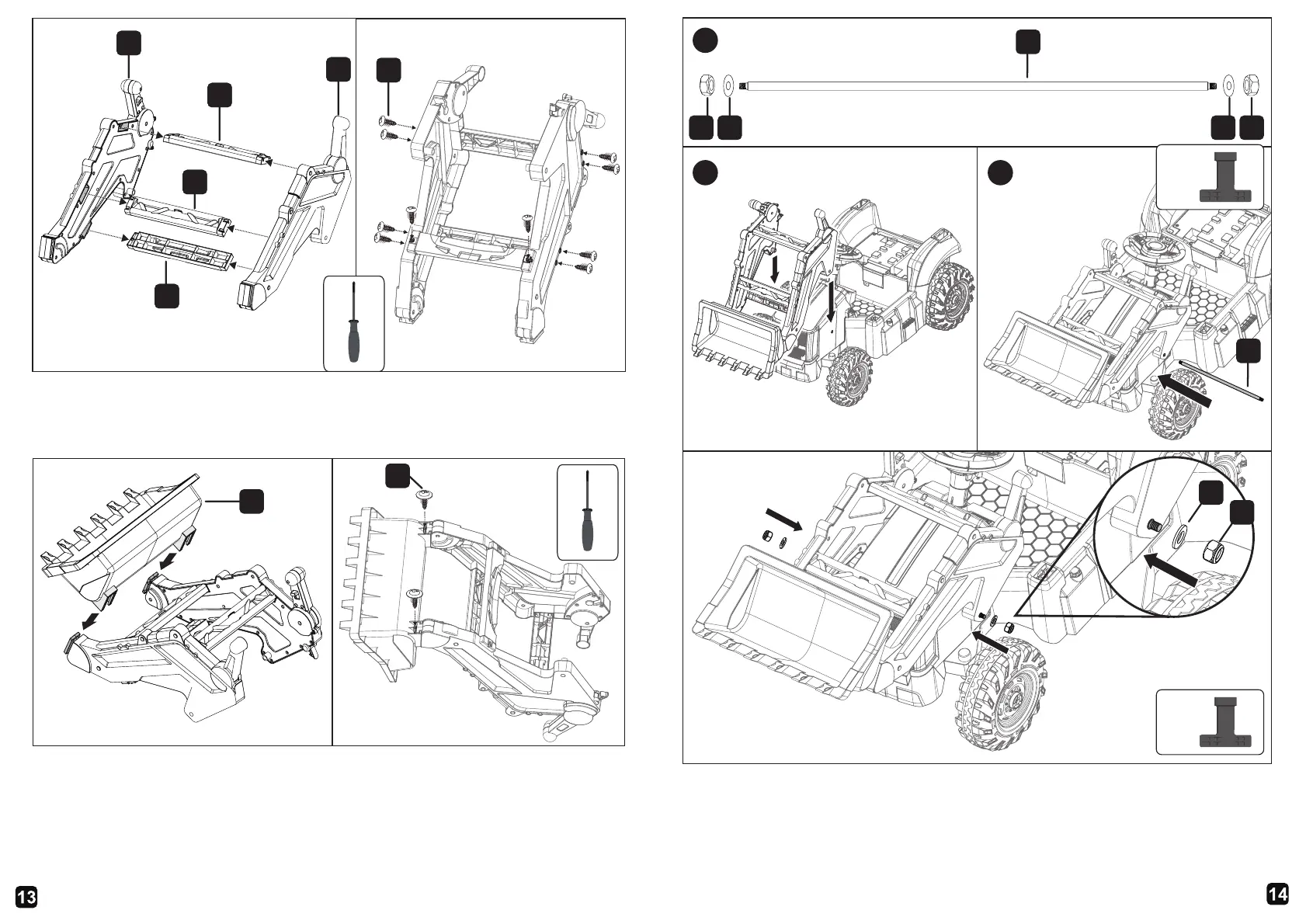

Step 5-3: Install the bucket
1. Remove the [7] and [6] on M(bucket fixed axle).
2. Install the whole bucket on the front head as shown in the picture.
3.Pass M (bucket fixed axle) through bucket frame and front head.
4.Replace [6], [7] on M (bucket fixed axle).
3
M
[6]
[7]
Note: Two A (M8 Spanner) wrenches are required use at same
time when removing and installing the nut [7].
A*2
A*2
E
F
E
G
E
H
E
I
E
F
E
J
Step 5-1: Install the bucket
1. Assemble the bucket frame as shown in the picture.
2. Turn the bucket over and tighten it with 10 J (4*16 self-tapping screws).
Step 5-2: Install the bucket
1. Insert K(bucket) into the bucket frame as shown.
2. Turn the whole bucket over and fix it with 2 L(4*12 with washer screws).
L
K
