Install the O(digging arm support) to
car body , as shown in the figure.

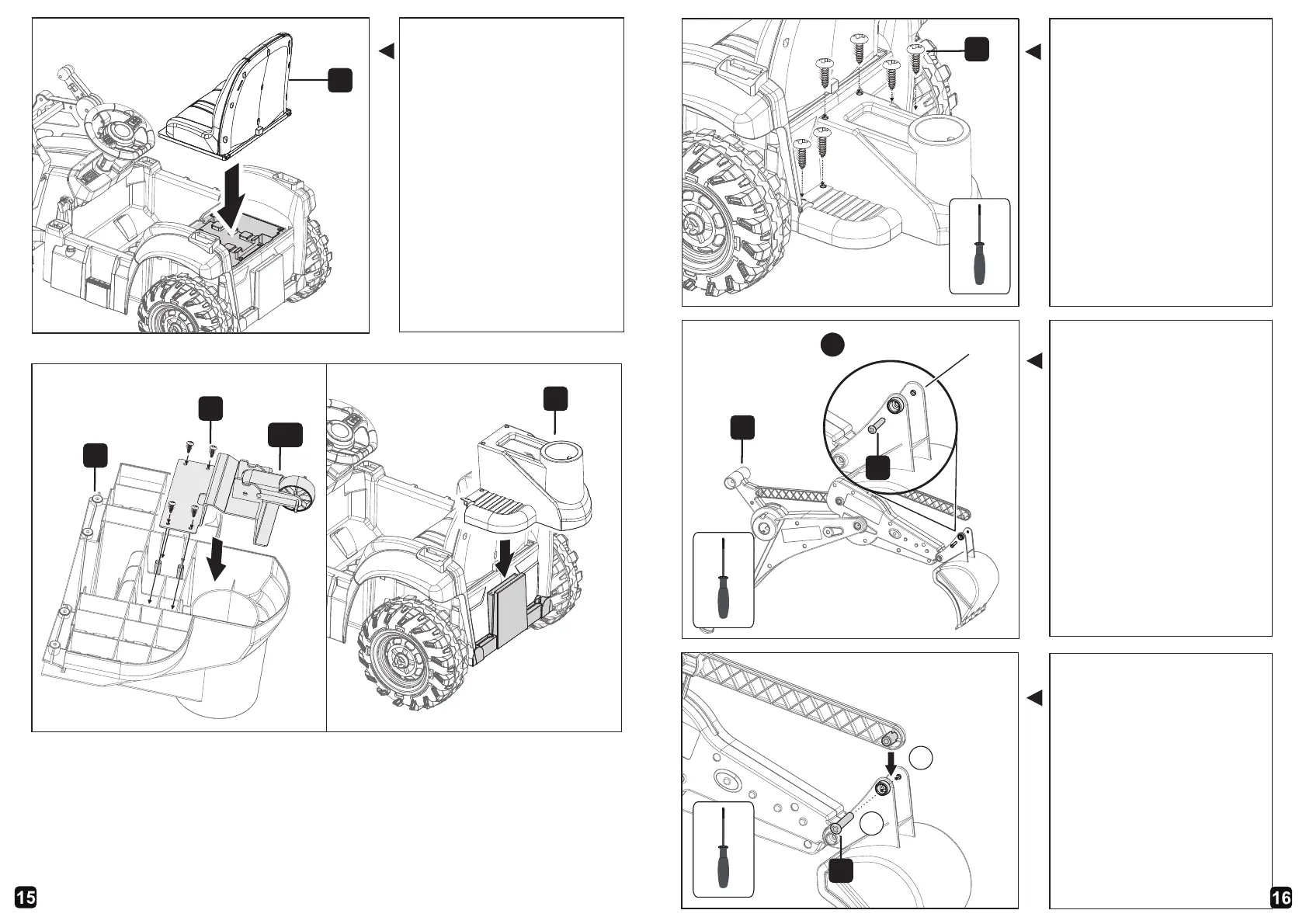

Step 6: Install the seat
N
N Recline the seat first,
front part insert into the
body and push down hard
on the back end of the
seat.
O
Step 8: Assemble the
digging arm support
Assemble the O(digging
arm support) with 6 J
(4*16 self-tapping
screws) , as shown in the
figure.
J
Step 7-1: Assemble the
digging arm support
Install the AD(Support wheel) on
the O(digging arm support) and
tighten it with four J(4*16 self-
tapping screws).
Step 7-2: Assemble the
digging arm support
J
AD
O
1. Insert the bucket
connecting rod into the
middle of the bucket.
2. Screw on [7] again
Step 9-1: Assembling
the Digging Arm
Unscrew the [7] on
the digging arm.
[7]
!
Don’t remove the nut!Don’t remove the nut!
[7]
1
2
Q
Step 9-2: Assembling
the Digging Arm
