03 - Attachments and Options
09 - Lift Arm Quickhitch
09 - Electronic Quickhitch
03 - 12 9813/6750-1 03 - 12
Disconnect and Connect
Disconnect
1. Rest the attachment on the ground.
2. Press and hold the unlock switch located in the
left hand panel.
3. Verify visually that the actuator is fully extended.
Refer to Figure 21.

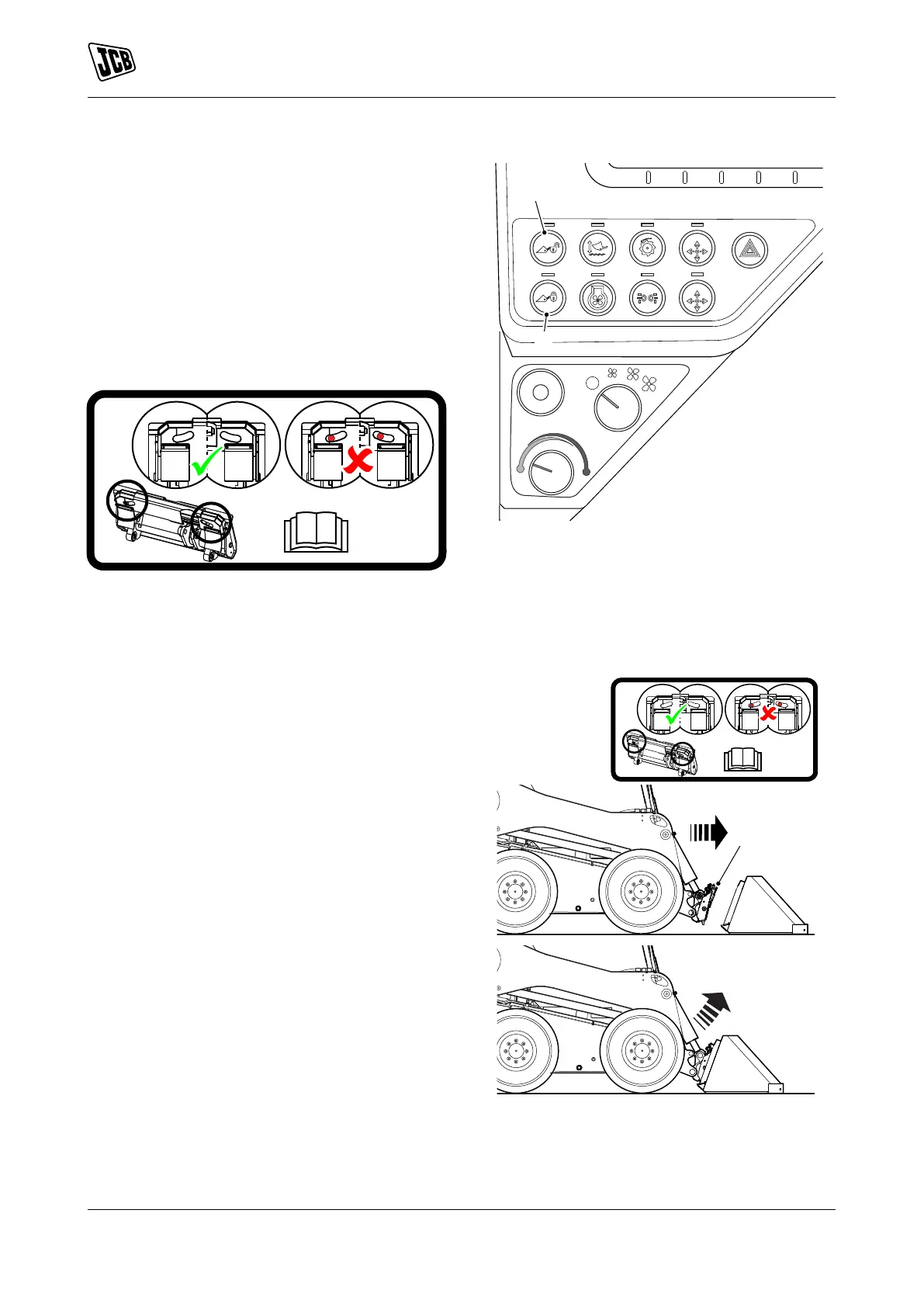

Figure 21.
4. If appropriate disconnect the attachment
hydraulic hoses lift arm pipework.
5. Lower the lift arm fully to bring the quickhitch
plate below the level of the lips on the shovel/
attachment.
6. Operate the lift arm control lever as if to
roll forward the shovel/attachment. When the
quickhitch plate has disengaged from the lips
on the shovel/attachment, reverse the machine
clear.
Figure 22.
A Unlock switch
B Lock switch
Connect
1. Align the machine square to the shovel/
attachment.
Figure 23.
C Hitch plate
2. Lower the lift arm fully to bring the quickhitch
plate below the level of the lips on the shovel/
attachment.
