jcb 3CX - Operator Station; Component Locations

About the Product
Operator Station
15 9831/2700-3 15
Operator Station
Component Locations

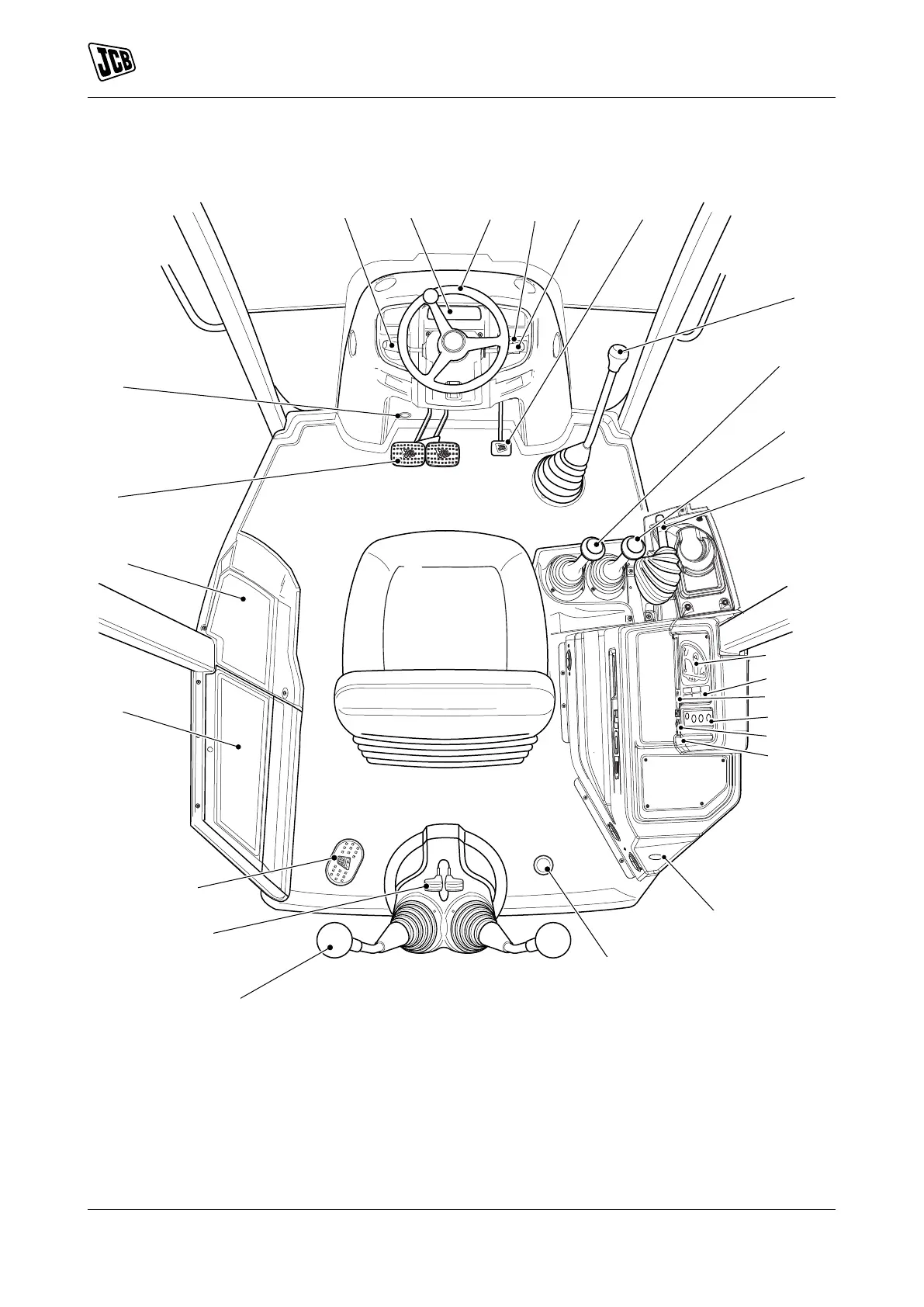

Figure 11.
A
C
B
D
AAZ
Y
X
E
F
H
V
W
S
R
U
T
G
Q
J
K
L
M
N
P
A Steering wheel B Console switches
C Multi-purpose switch D Accelerator pedal
E Gear lever F Loader controls
G Auxiliary circuit controls H Park brake lever
J Instrument panel K Console switches
L Auxiliary power socket M HVAC (Heating Ventilation Air Conditioning)
controls
N Starter switch P Hand throttle lever
Q Boom lock pull knob R Rockbreaker switch (if fitted)
S Excavator controls T Stabiliser controls
