About the Product
Interior Switches
17 9831/2700-3 17
Interior Switches
Ignition Switch
The ignition key operates the four-position ignition switch. The ignition key can only be inserted or removed
in position 0.
If the engine fails to start, the ignition key must be returned to position 0 before the starter motor is re-engaged.

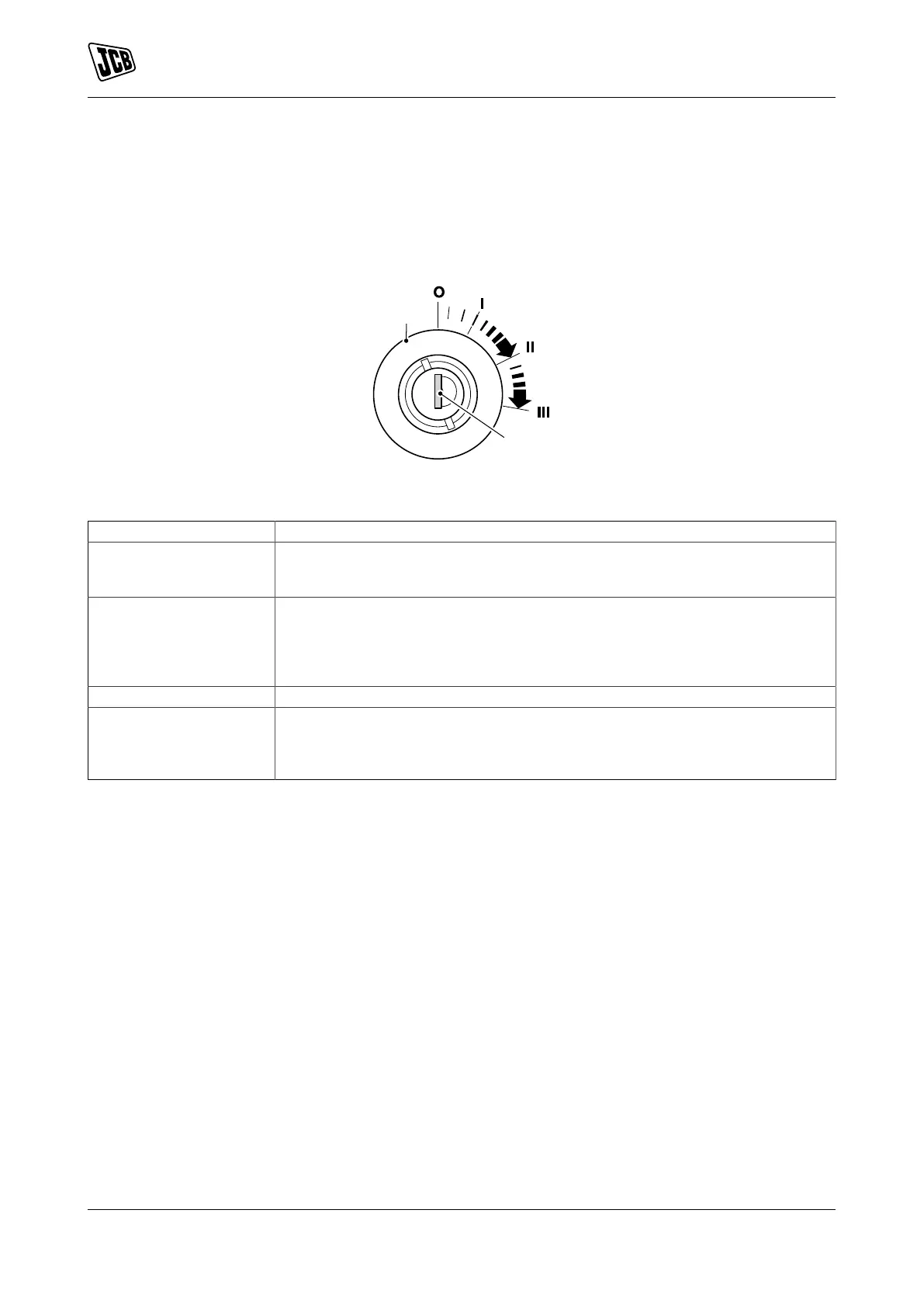

Figure 12.
B
A
A Ignition switch B Ignition key
Table 7. Switch Positions
Position Function
0 Off/Stop the Engine: Turn the ignition key to this position to stop the engine.
Make sure the controls are in neutral, the attachments are lowered and the park
brake is applied before you stop the engine.
I On: Turn the switch to this position to connect the battery to all the electrical
circuits except the lights and the hazard warning circuit (the lights and hazard
warning circuits are permanently live). The starter key will spring back to this po-
sition when it is released from II or III. At -10°C (14°F), the cold start warning
light will illuminate to indicate the cold start inlet manifold heater has come on.
II This position is not used.
III Start: Operates the starter motor to turn the engine. As soon as the engine
starts, release the key. If the engine fires but does not fully start, do not operate
the starter for more than 40s. Let the starter motor cool for at least two minutes
between starts.
Multi-Purpose Switch
Direction Indicators
Push the stalk forwards to indicate a left turn. Pull the stalk backwards to indicate a right turn. Place in central
position to cancel.
Windscreen Wiper
Rotate the switch barrel to activate and cancel the windscreen wipers. The wiper speed can vary dependant
on machine specification.
Two Speed (Optional)
J = Intermittent Wipe
0 = Off
I = Slow
II = Fast
