15 - Engine
45 - Oil Sump
00 - General
15 - 175 9823/0000-1 15 - 175
Remove and Install
(For: JCB Tier 2/3 Mech Engine 4 Cyl)
Special Tools
Description Part No. Qty.
Template for Sealant
Oil Sump - Pressed
892/01149 1
Oil Sump Location
Dowel
892/01150 2
Template for Sealant
Oil Sump (Cast)
892/12354 1
Consumables
Description Part No. Size
Clear Silicone Sealant 4102/0901 0.31L
Before Removal
1. Make sure that the engine is safe to work on.
If the engine has been running, make sure the
engine has cooled sufficiently before you start.
2. Drain the engine oil.
Removal
1. Remove the fixing bolts and remove the oil sump
from the engine. The oil sump may be difficult to
remove due to adhesion of sealing compound.
If necessary, carefully lever the mating flanges
apart. Do not use excessive force, the oil sump
could be damaged. Be sure to retrieve the oil pick
up seal.
2. Use a gasket removal compound, carefully
remove all traces of sealing compound from the
oil sump and engine mating faces. Do not allow
the sealing compound to enter the engine.
3. Use a suitable degreasing agent to thoroughly
clean the oil sump.

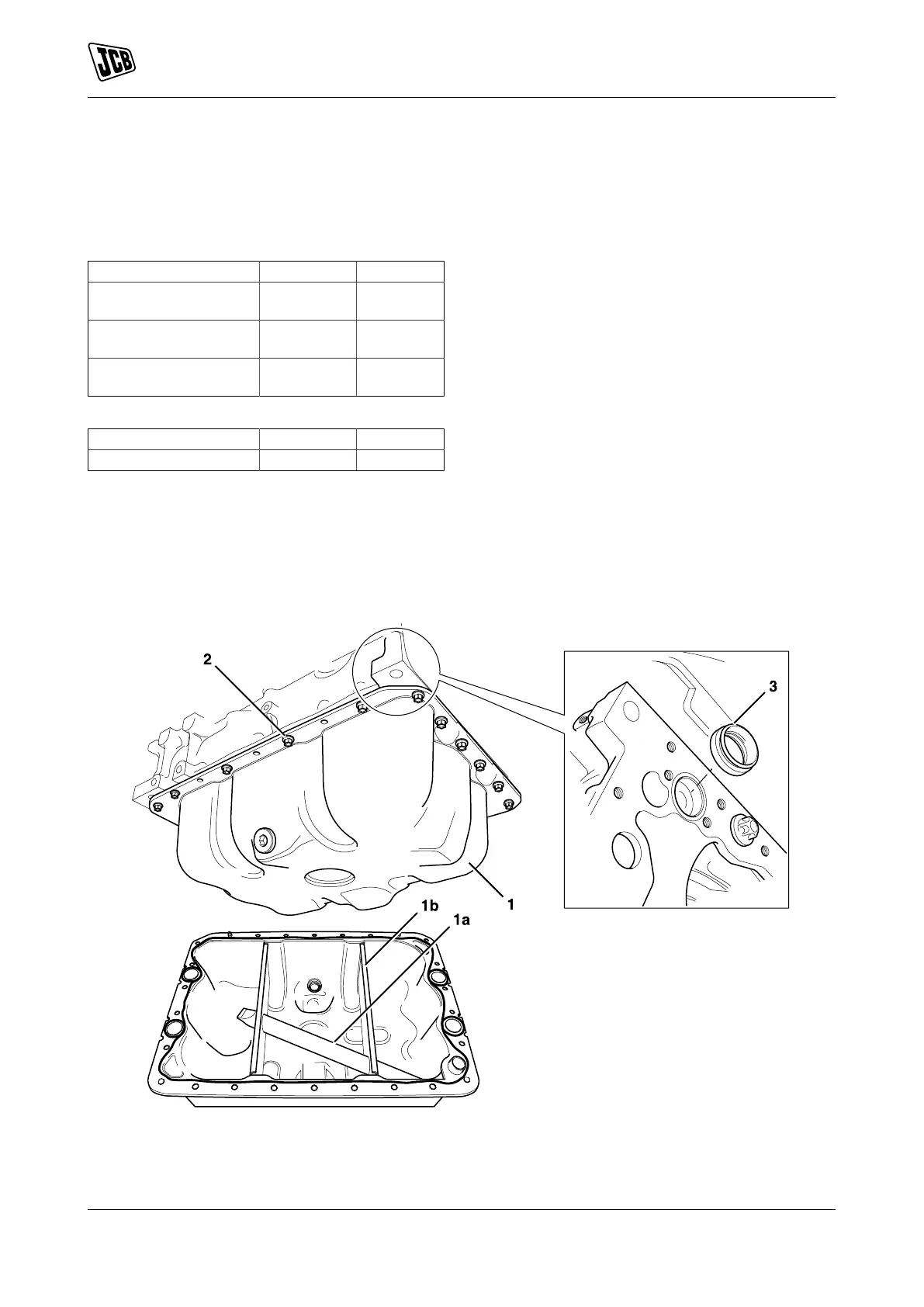

Figure 211.
1 Oil sump 1a Integral suction tube
1b Integral baffle plates 2 Oil sump fixing bolts (x20)
3 Oil pick up seal
