jcb 8008 CTS - Excavator Controls; Excavator Lever Functions; Swing Pedal Operation

10 Please see operator manual for full details.

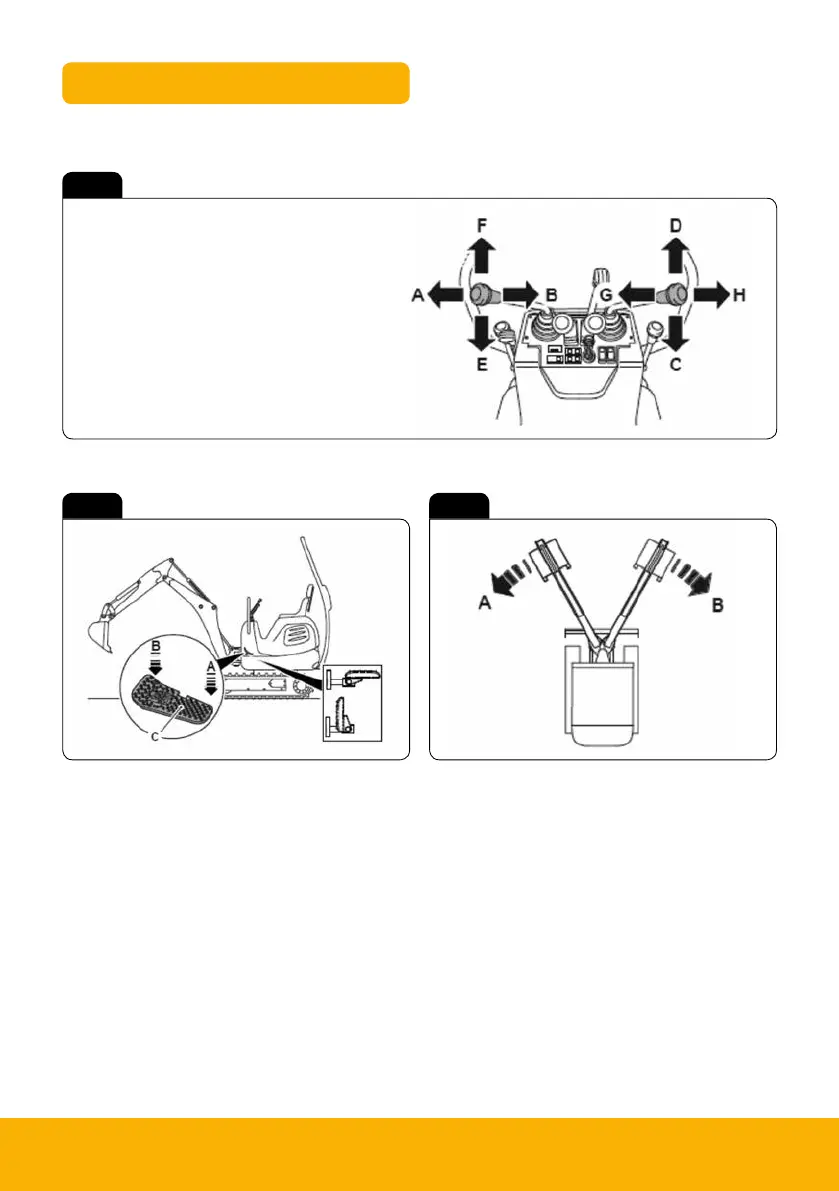

Excavator Controls
A Slew cab left
B Slew cab right
C Raise boom
D Lower boom
E Dipper in
F Dipper out
G Close bucket (to gather a load)
H Open bucket (to dump a load)
WARNING: The swing and auxiliary pedals must be in their folded positions when not in use.
A Swing left
B Swing right
C Swing pedal (fold down into operating position)
Fig 8
Fig 9 Fig 10
Excavator Levers
Swing Pedal
