jcb 9TFT - Service Point Locations

01 - Machine
09 - Description
15 - Service Point Locations
01 - 20 9813/5350-2 01 - 20
15 - Service Point Locations
Introduction
Engine Compartment

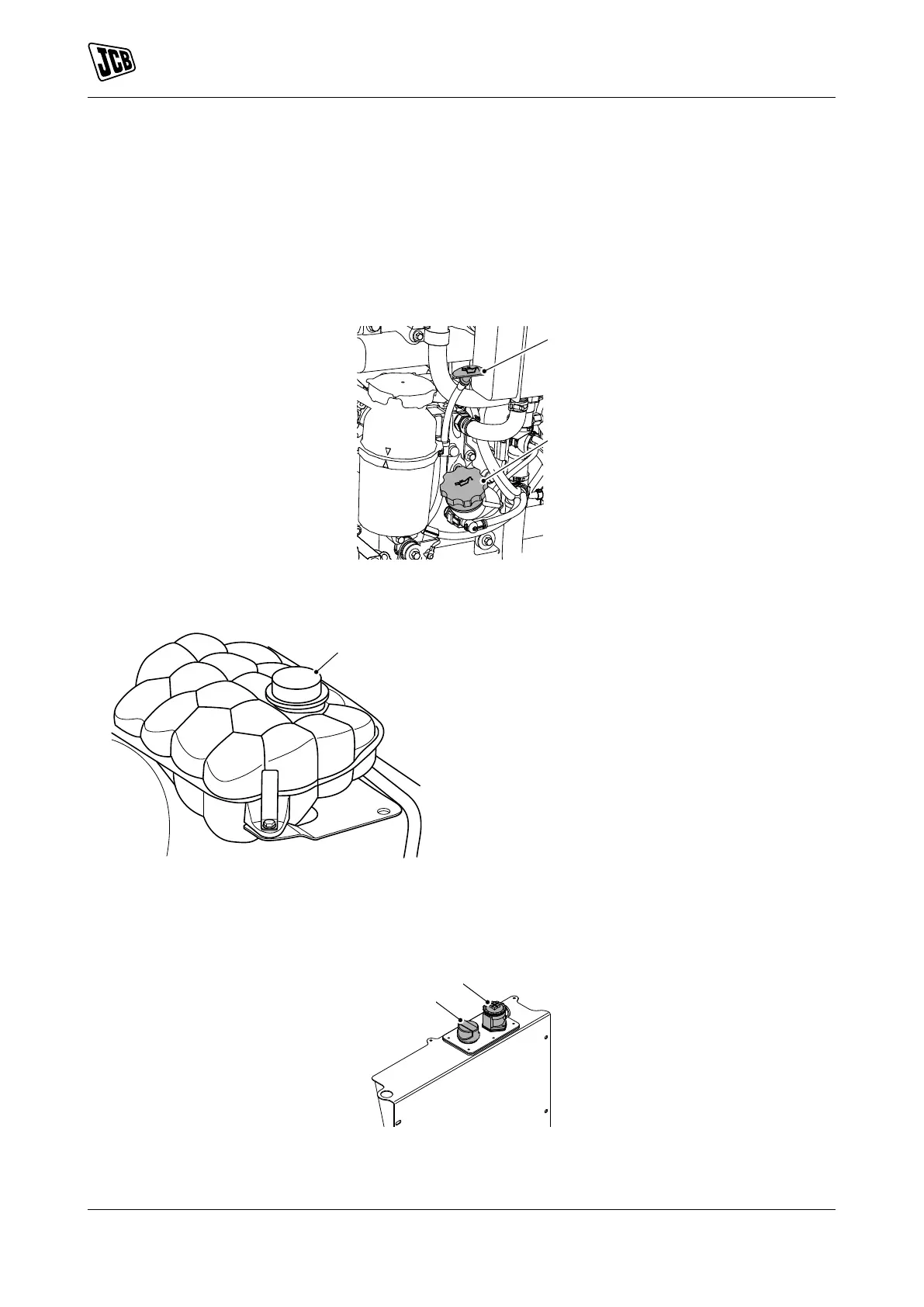

Figure 4.
A
B
A Engine oil dipstick B Engine oil filler cap
Figure 5.
A
A Coolant expansion tank
Hydraulic System
Figure 6.
B
A
A Hydraulic filler dipstick B Hydraulic return line filter
