jcb G40QS - Canopy Delete Set - Side View

About the Product
Installation and Removal
19 9831/0650-3 19

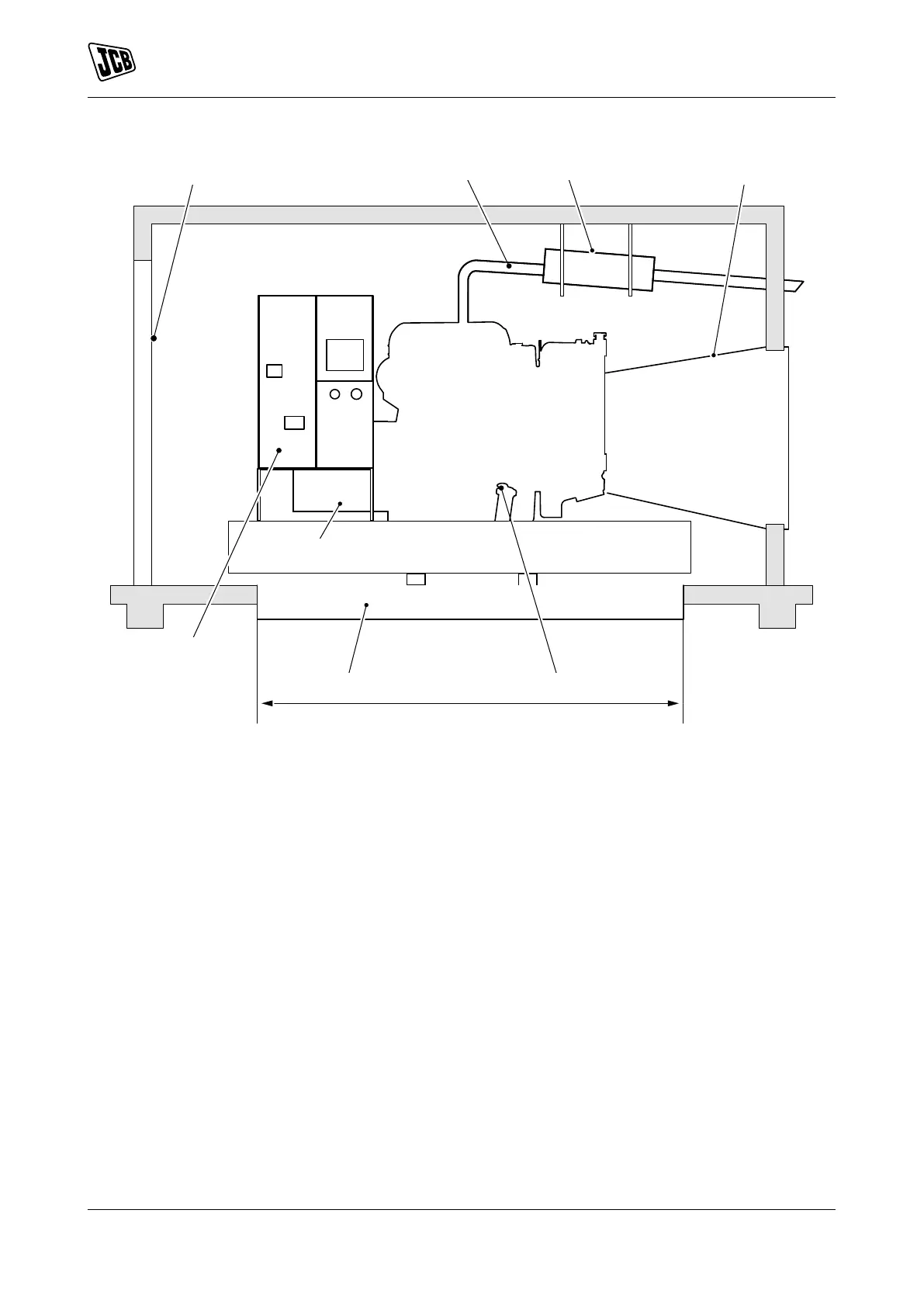

Figure 13. Canopy Delete Set - Side View
H
B
DA
C
F G
E
J
A Access door B Exhaust pipe
C Exhaust silencer D Hot air outlet ducts
E Control panel F Concrete base
G Generator set H Generator length + 200mm
J Alternator
The above figure shows a typical exhaust mounting arrangement. Operator can modified the exhaust mounting
arrangement as per their requirement.
