6 - 2
Section 1
General Information
9803/6400
Section 1
6 - 2
Issue 1
Service T
ools
(continued)

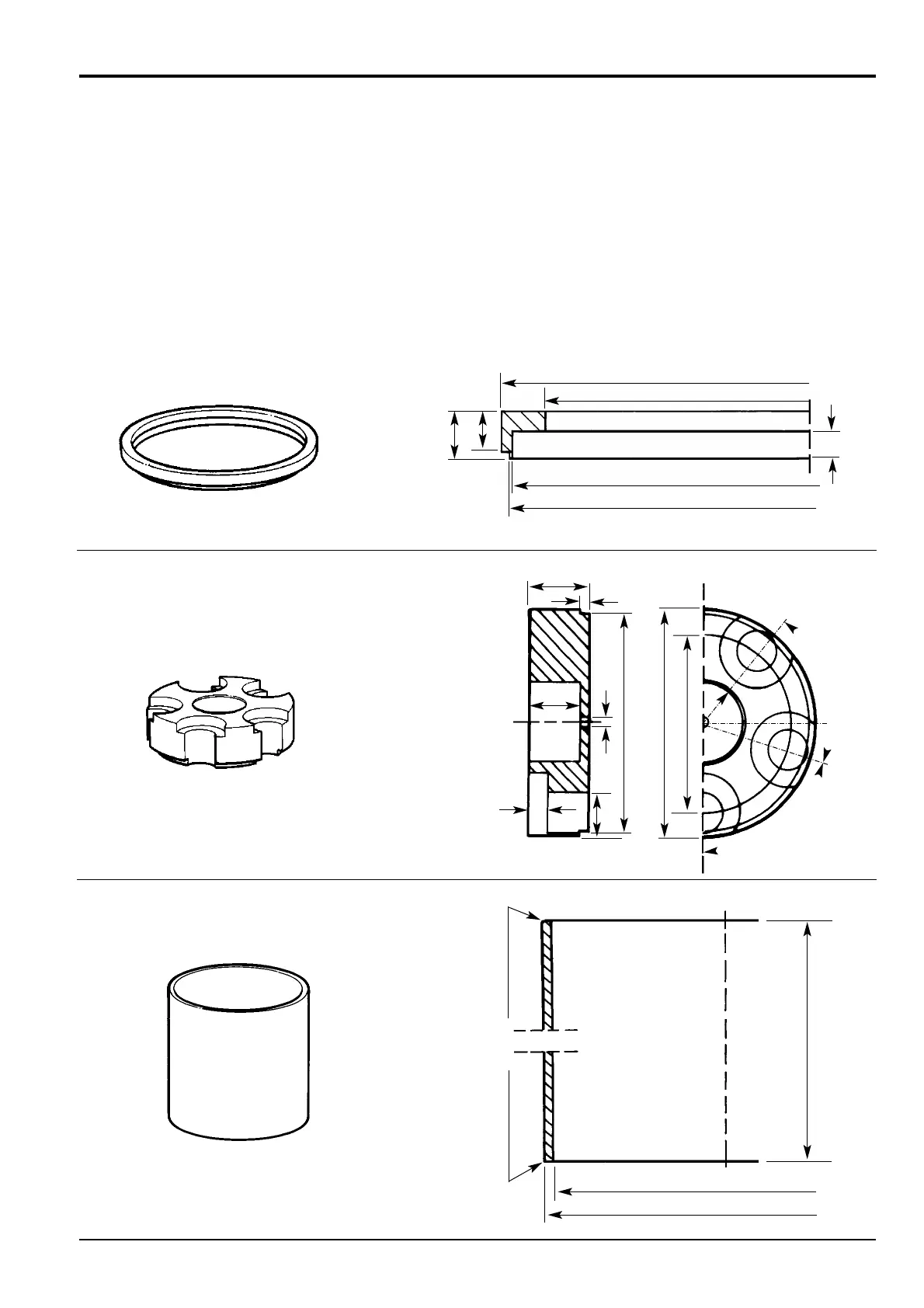

SECTION F - TRANSMISSION
T
rack Gearbox Jig
SST0037
Re-sealing Tool
SST0038
Main Bearing Tool
SST0039
Main Bearing Tool
(All dimensions are in mm.)
SST0037
SST0038
SST0039
24
21
ø315
ø270
ø304
ø306
14
M10
62
52
20
Ø230
Ø182.5
Ø44
10
220
72°
72°
Ø240
Ø250
195
Chamfer 1 x 45°
Chamfer 1 x 45°
R40
10
12
