Service Tools (continued)
SECTION F - TRANSMISSION

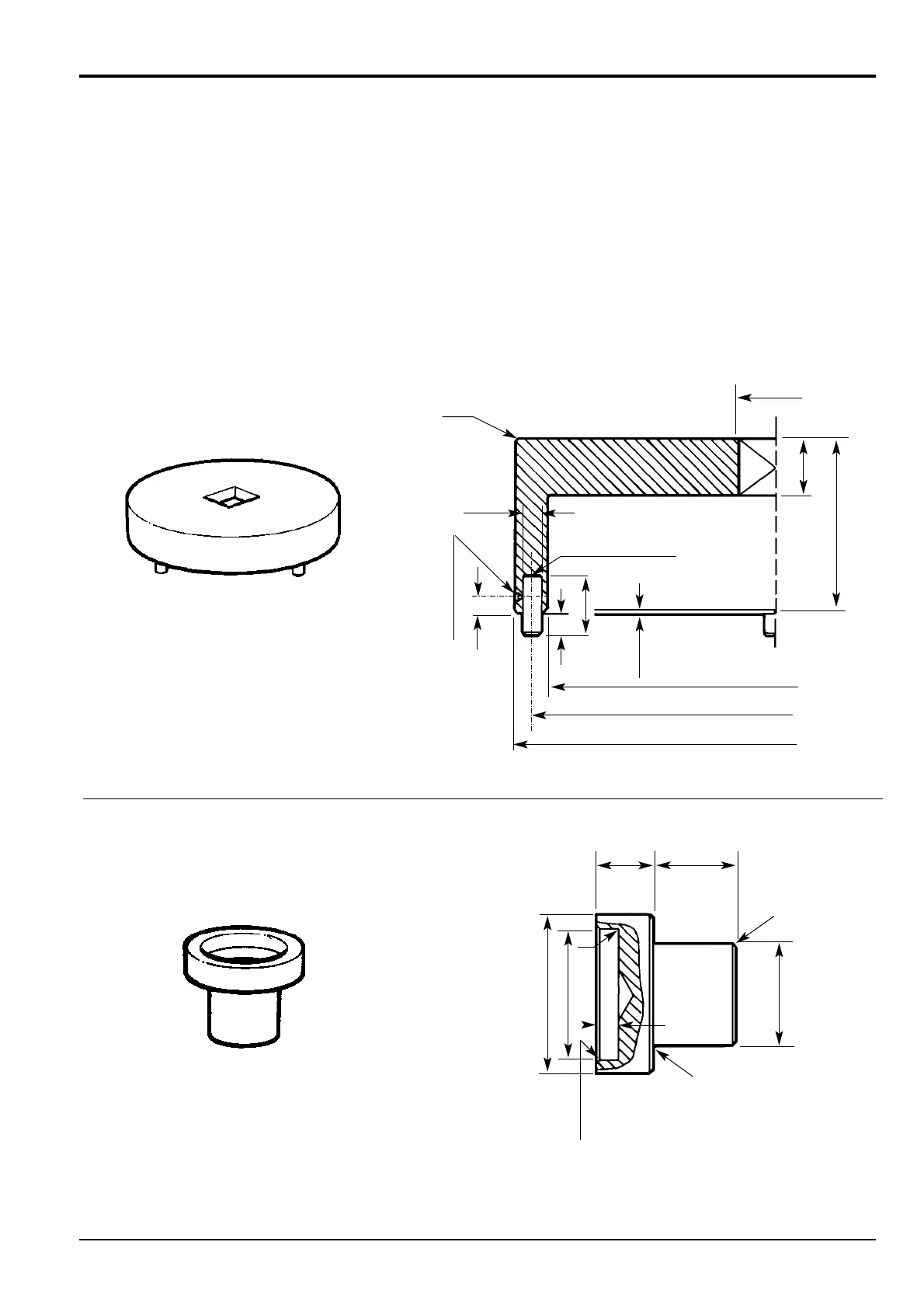

Track Gearbox Jig
SST0040 Ring Nut Tool
SST0041 Planet Gear Tool
(All dimensions are in mm.)
SST0040
SST0041
ø233.5
ø248
ø265
30
8
90
30
38.1sq
ø9.7
11
1.5x45°
ø9.5 no.4 dowel
M4x4 no.4 screw
1x45°
30
20
8
R2
Ø35
Ø56
Ø46
1.5X4.5°
R.8
