13
JCB
-MS-254SB
Instruction & User Manual
18.
Mitre scale
19.
Bevel pointer
20.
Locking screw for drag guide
21.
Drag guide
22.
Locking screw knob
23.
Fastening bolt
24.
Screw for cutting depth limiter
25.
Stop for cutting depth limiter
26.
Fastening bolt for turn table
27.
Support foot
28.
Mitre detent
29.
Flange bolt
30.
Outer flange
31.
Saw shaft lock
32.
Inner flange
33.
Laser
34.
ON/OFF switch for laser
35.
Laser compartment
36.
Laser holder
37.
Guide bar

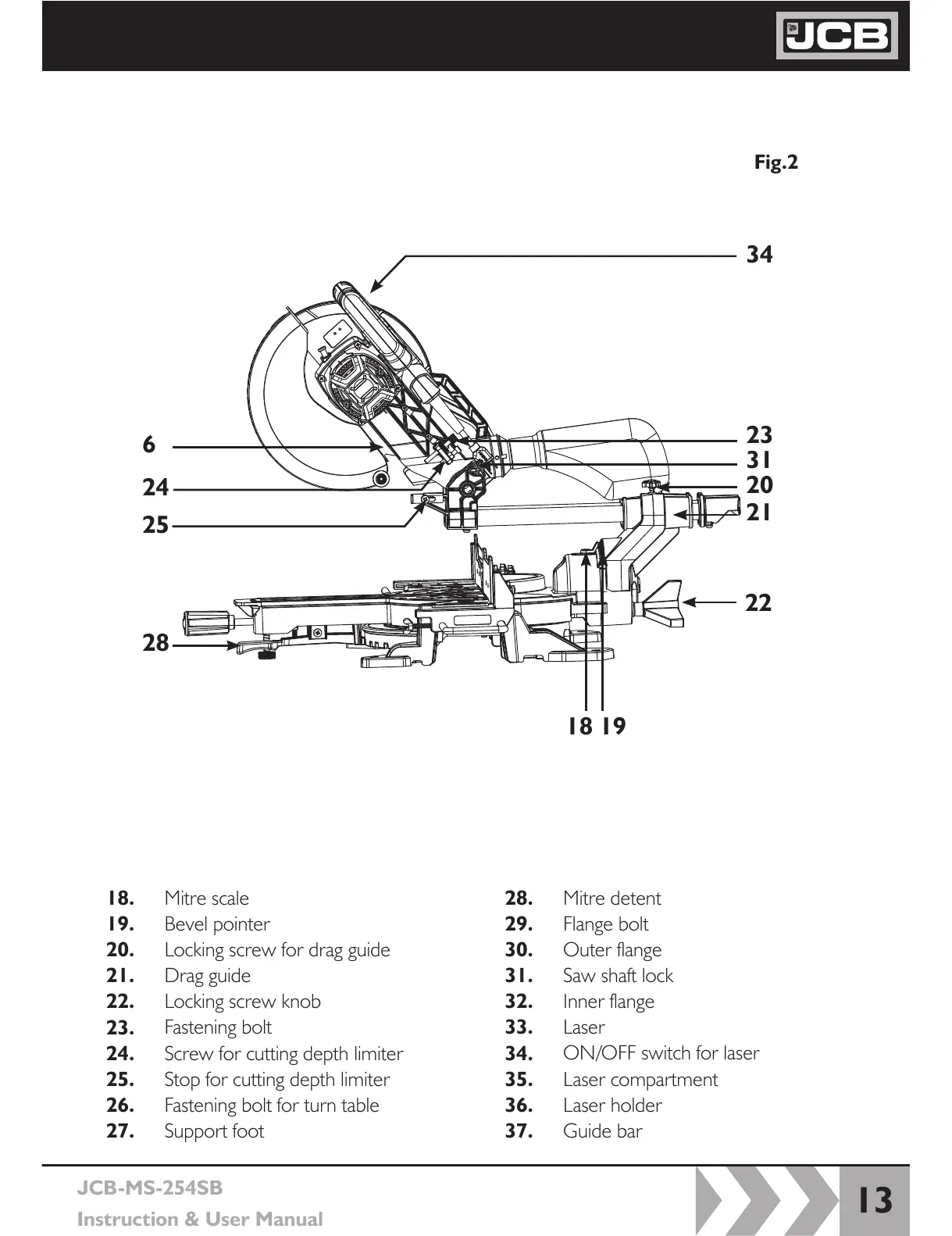

Fig.2
34
23
31
22
18 19
20
21
6
24
25
28
