jcb MS-254SB User Manual

14
JCB-MS-254SB
Instruction & User Manual

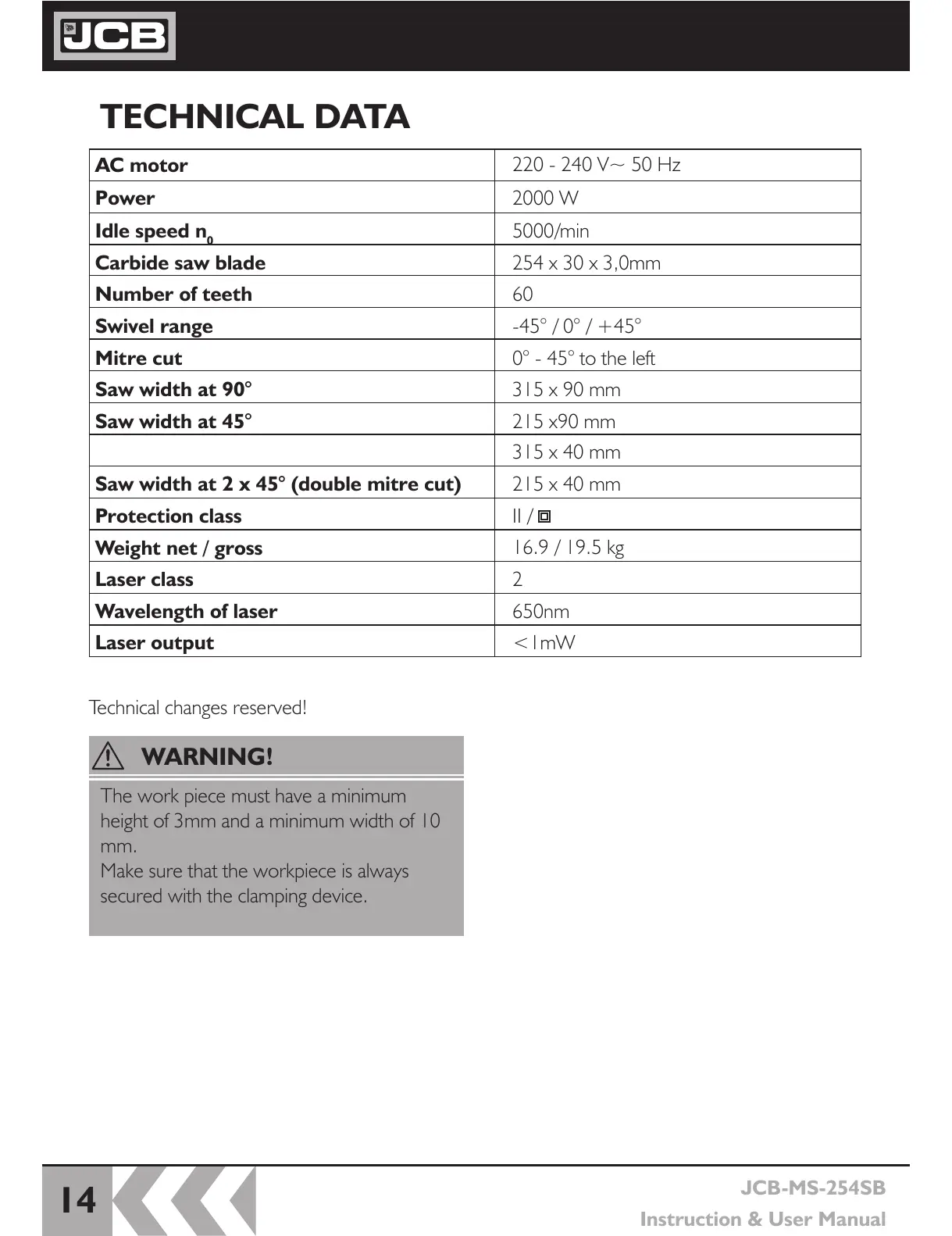

TECHNICAL DATA
Power
2000 W
AC motor
220 - 240 V~ 50 Hz
Idle speed n
0
5000/min
Carbide saw blade
254 x 30 x 3,0mm
Number of teeth
60
Swivel range
-45° / 0° / +45°
Mitre cut
0° - 45° to the left
Saw width at 90°
315 x 90 mm
Saw width at 45°
215 x90 mm
315 x 40 mm
Saw width at 2 x 45° (double mitre cut)
215 x 40 mm
Protection class
II /
Weight net / gross
16.9 / 19.5 kg
Laser class
2
Wavelength of laser
650nm
Laser output
<1mW
Technical changes reserved!
The work piece must have a minimum
height of 3mm and a minimum width of 10
mm.
Make sure that the workpiece is always
secured with the clamping device.
WARNING!
