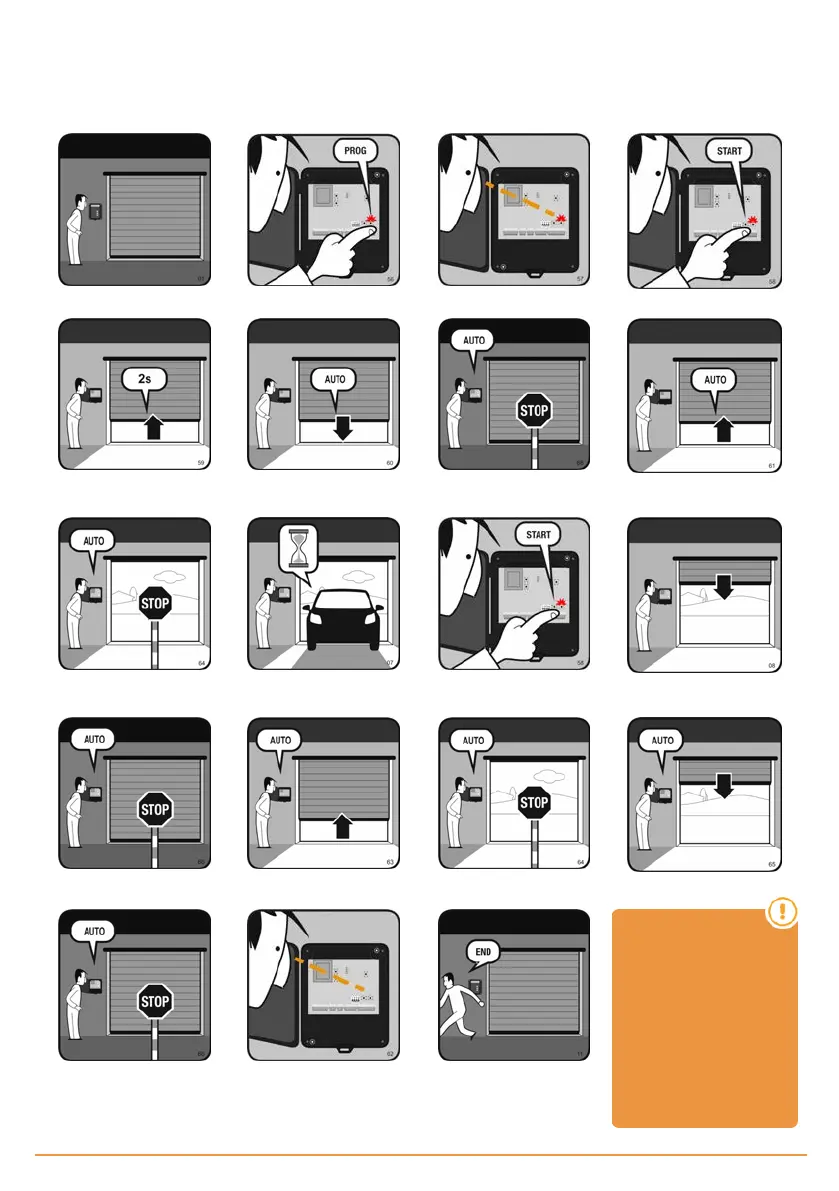

Programming the door maneuver with RadioSens3 system
DOOR CLOSED
PRESS RPROG
PUSHBUTTON
LED TURNS ON
PRESS START
PUSHBUTTON
DOOR OPENS 2 SECONDS DOOR CLOSES DOOR STOPS AUTO DOOR OPENS AUTO
DOOR STOPS AUTO AUTOCLOSE TIME
PRESS START
PUSHBUTTON
DOOR CLOSES
DOOR STOPS AUTO DOOR OPENS AUTO DOOR STOPS AUTO
DOOR CLOSES AUTO
*INHIBITION ZONE:
DOOR STOPS AUTO LED TURNS OFF END PROGRAMMING
*INHIBITION ZONE:
Optionally press START to
set inhibition point. From this
point to the closing edge, the
safety device will be inhib-
ited. The inhibition zone must
comply with the safety stand-
ards, it must be less than
40mm from the floor.
jcmtechnologies
10
