General Information DBV® Series DBV-400 Banknote Validator Section 1
Component Names

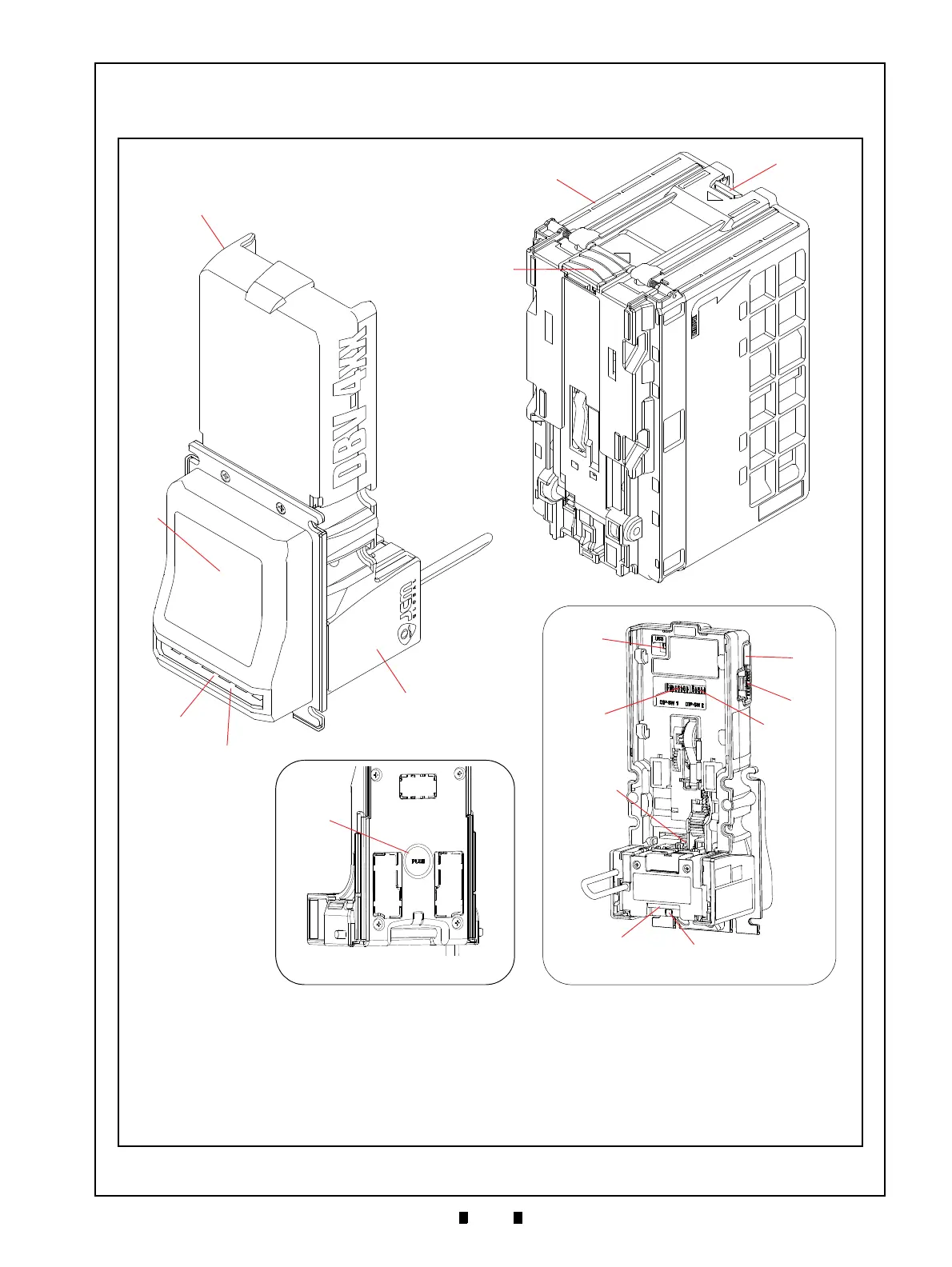

Figure 1-4 illustrates the DBV-400 component names and locations.
Figure 1-4 DBV-400 Component Names
Figure 1-4 DBV-400 Component Names
a) Transport Unit
b) Bezel (Option)
c) Banknote Insertion Slot
d) Bezel LED
e) Validation Guide
f) Cash Box Release Button
g) Cash Box Door Open/Close Button
h) Cash Box
i) USB Connector (for Maintenance)
j) USB Interface Connector
k) Interface Connector
l) DIP Switch 1
m) DIP Switch 2
n) Cash Box DT Lever
o) Validation Guide Open/Close Latch
p) Status LED
q) Push Button
a
b
c
e
d
g
h
i
j
l
m
n
k
f
DBV-400 Unit (Without Cash Box)
o
q
Validation Guide Bottom View
p

JCM DBV-400 Series Specifications

General

Brand	JCM
Model	DBV-400 Series
Category	Bank Note Validator
Language	English
