Exploded Views and Parts Lists DBV™ Series DBV-400 Banknote Validator Section 7
DBV-400 Main Unit Exploded View 1

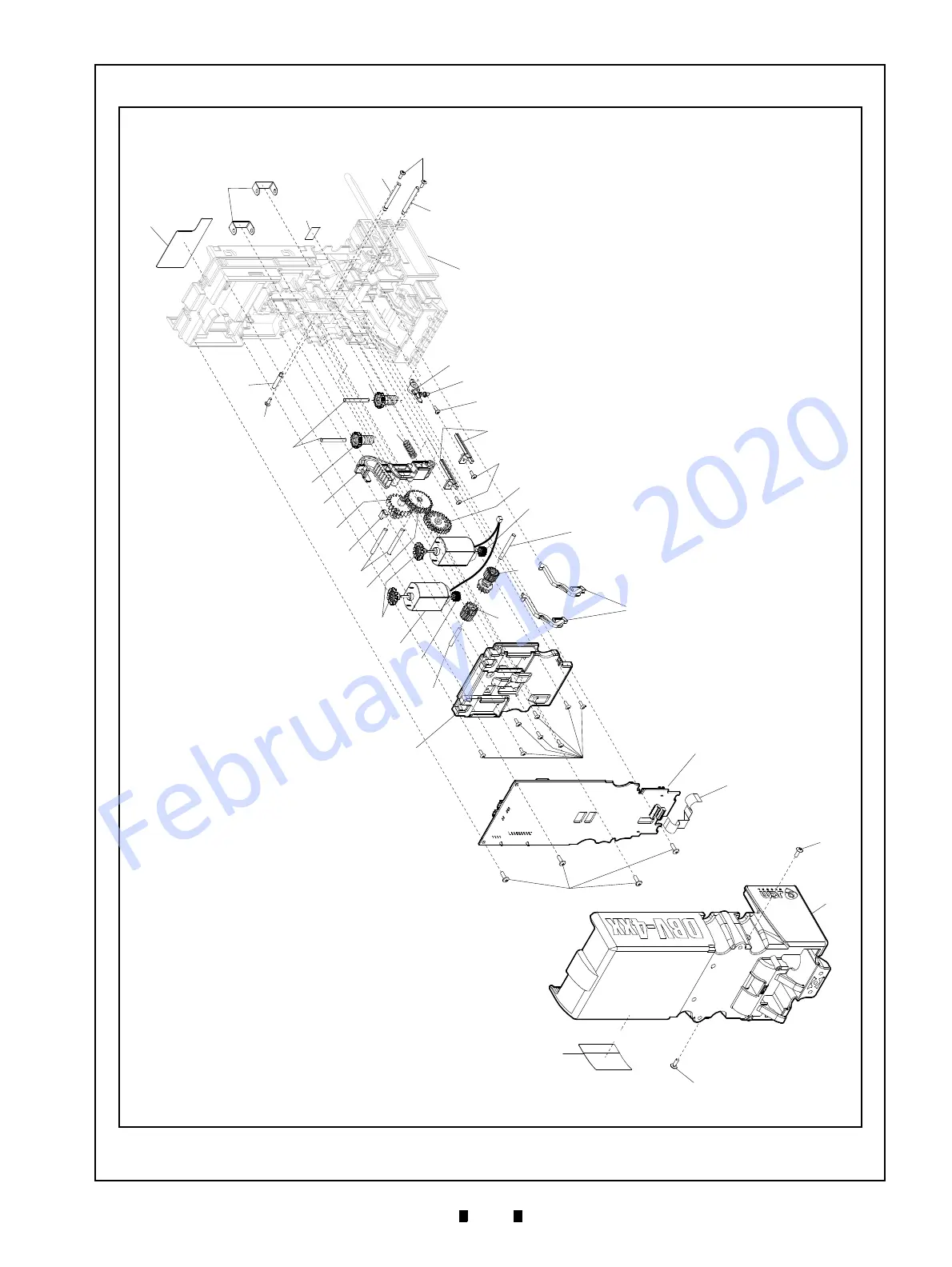

Figure 7-2 DBV-400 Main Unit Exploded View 1
Figure 7-2 DBV-400 Main Unit Exploded View 1
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
105
115
116
117
118
119
120
121
122
123
124
124
125
126
127
128
128
129
128
128
130
128
Main Frame Assy.
110
131
131
132
