INSTRUMENT PANEL

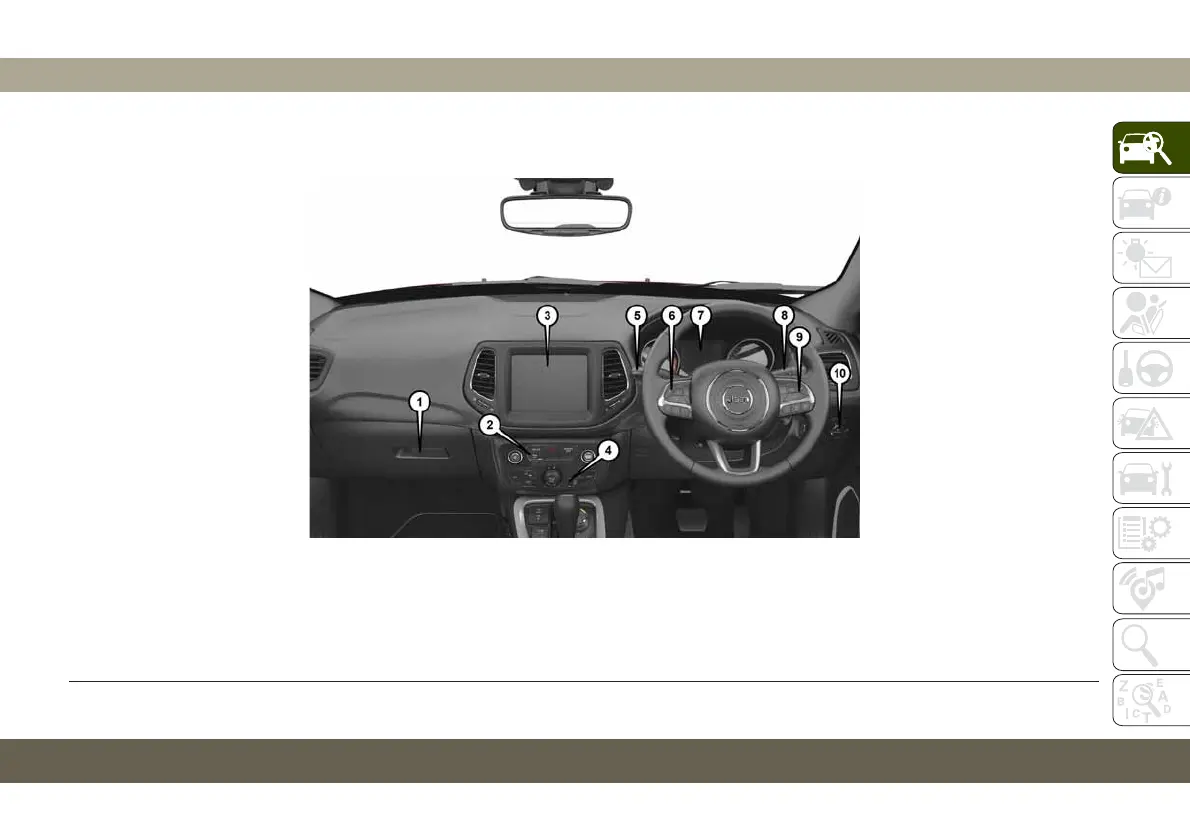

Instrument Panel

1 — Glove Compartment 6 — Instrument Cluster Display Controls

2 — Switch Panel 7 — Instrument Cluster

3 — Uconnect System 8 — Windshield Wiper Lever

4 — Climate Controls 9 — Speed Controls

5 — Multifunction Lever 10 — Headlight Switch
