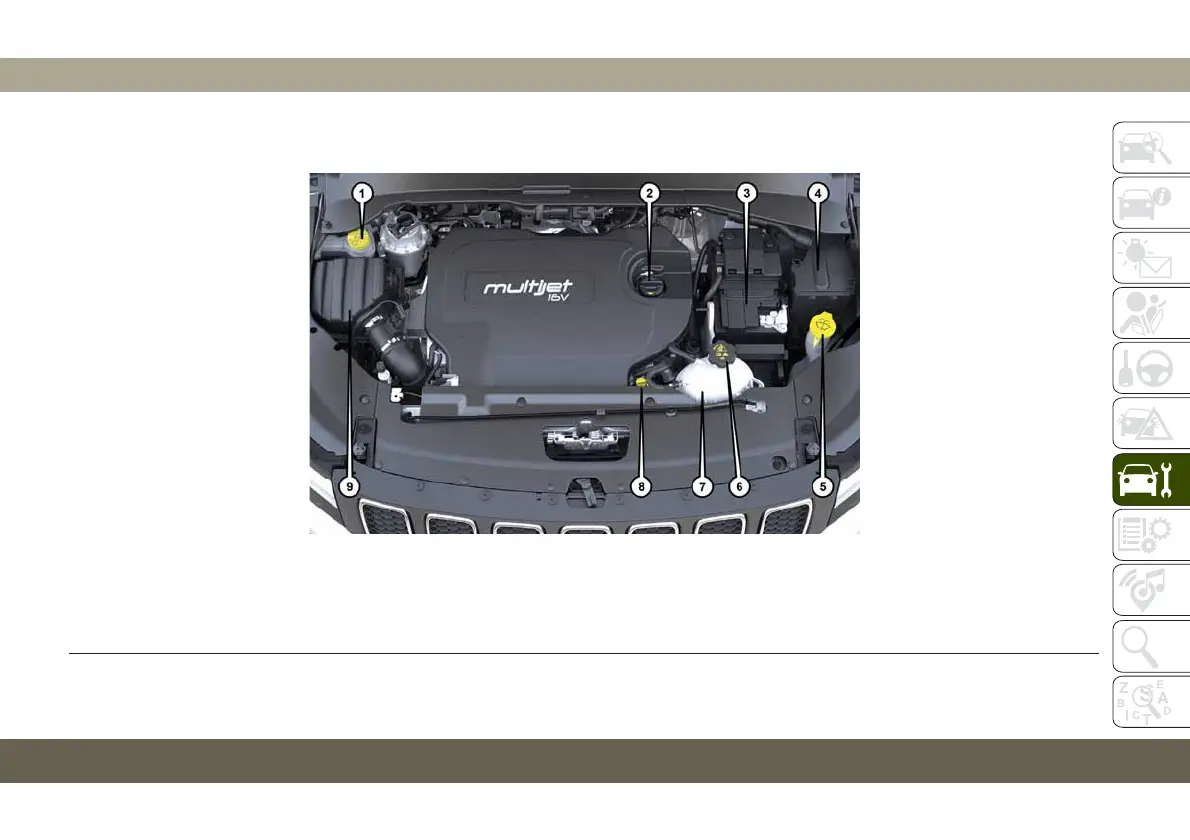

2.0L Diesel Engine

1 — Brake Fluid Reservoir 6 — Engine Coolant Pressure Cap

2 — Engine Oil Fill 7 — Engine Coolant Pressure Bottle

3 — Battery 8 — Engine Oil Dipstick

4 — Power Distribution Center (Fuses) 9 — Engine Air Cleaner Filter

5 — Washer Fluid Reservoir
