Jeep Compass
Electrical system
3.2 VEHICLE FUSES
There are a range of components on the car to disconnect the
system and protect it with dedicated fuses.
The fuses are grouped in the following components:
• Engine compartment junction unit;
• Engine compartment junction box;
• Engine compartment relay module;
• Body Computer control module;
• Luggage compartment fusebox;
• Maxifuse box on the battery;
3.2.1 Distribution unit/fusebox in engine compart-
ment

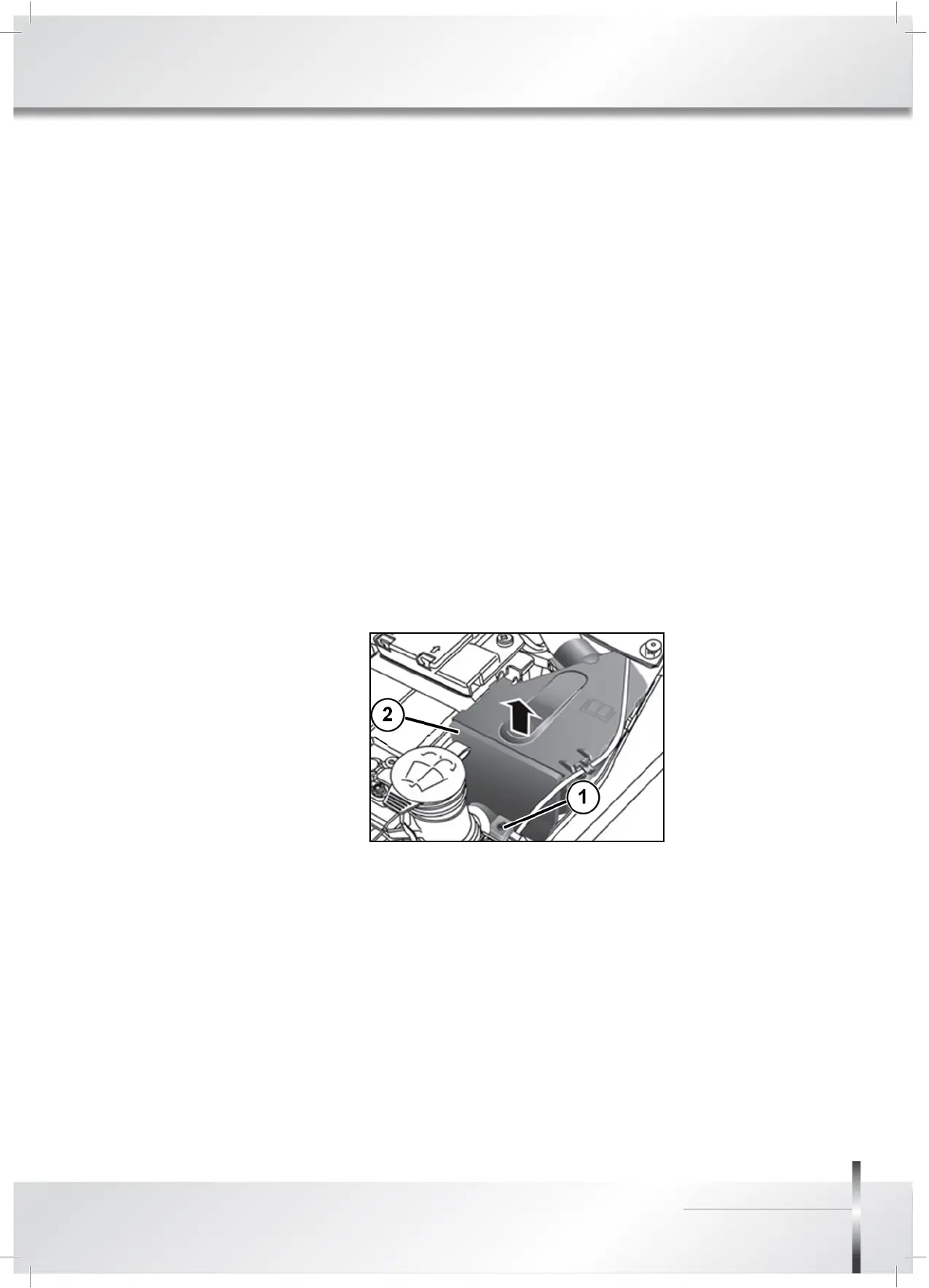

The engine compartment fuse panel is located on the left side of the
engine compartment. Undo the screw (1) and lift the protection (2).
