Electrical system

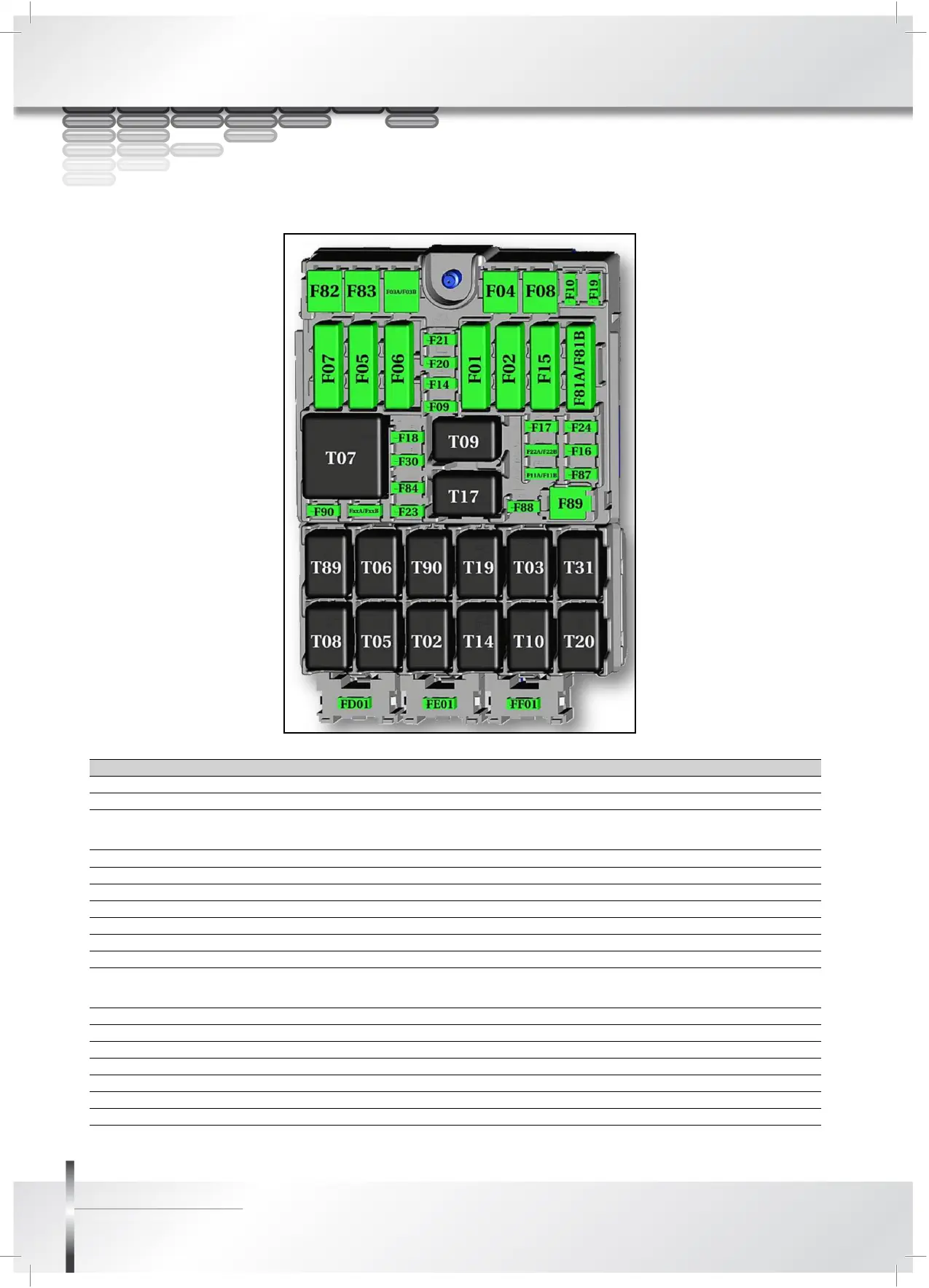

Description Fuse Ampere
Body control module F01 70 A
Body control module, rear distribution unit F02 70 A
Body power module F03 30 A with HID lights
20 A without HID
lights
Electronic braking assist module
F04 40 A
PTC heater F05 40 A
Starter relay F06 40 A
Rear distribution unit for trailer use F07 40 A
Power for F24, F87, steering control F08 30 A
Engine Control Module F09 5 A
Horn F10 20 A
Secondary power loads F11 20 A 1.4L petrol and
diesel engines
25 A 2.4L engines
Diesel motor crankcase heater F14 7.5 A
Brake cylinder control module F15 40 A
Engine control module power supply, automatic transmission F16 10 A
Engine secondary loads F17 10 A
12 V ignition-switch powered socket in rear luggage compartment F18 20 A
A/C compressor and radiator fan activation PWM F19 7.5 A
Cigarette lighter F20 20 A
