Jeep Compass
Electrical system
3.2.2 Distribution unit on battery

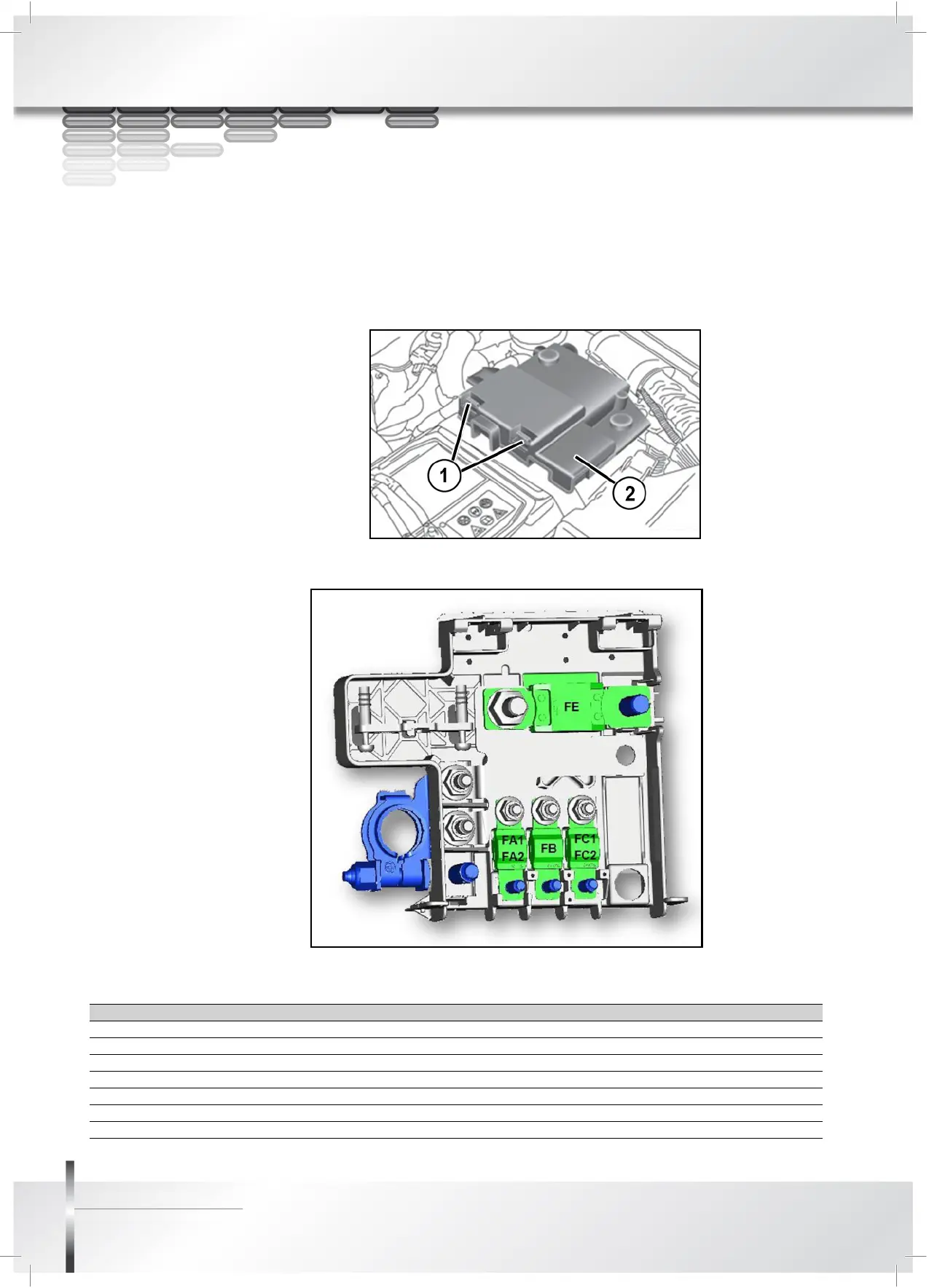

The control unit is positioned in the engine compartment on the
battery.
Press the tabs (1) and lift the lid (2).
Description Fuse Ampere
Radiator fan 400W FA1 50 A
Radiator fan 600W FA2 80 A
EPS FB 70 A
Heater PTC 2 FC1 70 A
Starter motor relay power (ESS) FC2 40 A
Starter motor power FE N/A
Alternator FE N/A
