STEP 4: Adjust the Load Resis-
tance and Gain settings on the
plug-in Phono Card as shown in
FIGURE 9.
STEP 5: Replace the bottom
cover.
Using a
5/64" hex wrench,
reinstall
the nine screws that
secure the bottom cover to the
chassis.
Gain=60 dB, Load=100
ohms: Settings used for
Moving Coil cartridges only.
H1 H2
Gain=40 dB, Load=47K
ohms. Settings used for Mov-
ing Magnet cartridges only.
H1 H2
Gain=50 dB, Load=47K
ohms: Settings
used for
High Output Moving Coil.
H1 H2
Gain=60 dB, Load=400
ohms: Settings used for
Moving Coil cartridges only.
H1 H2
(Default Settings)

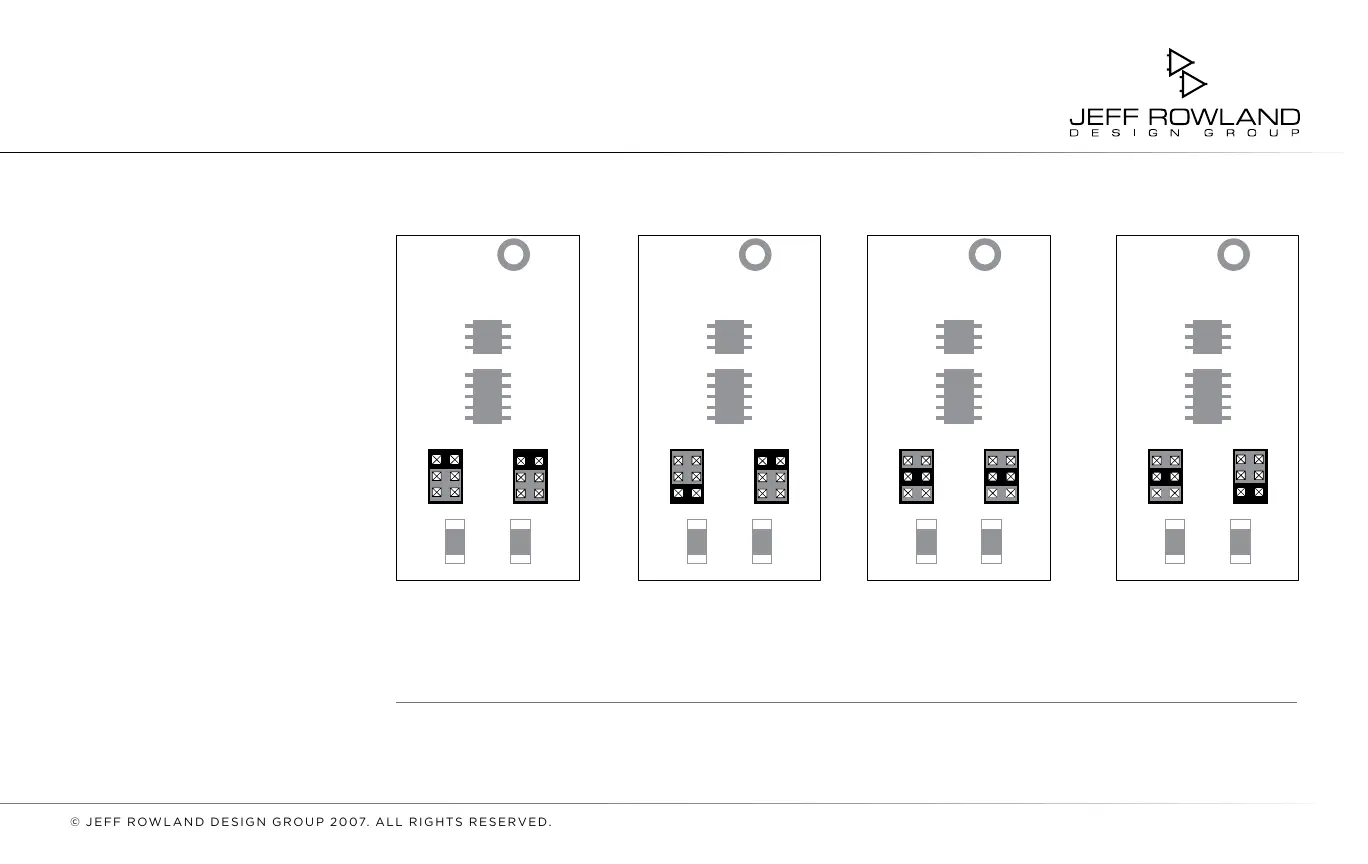

FIGURE 9: CAPRI Phono Card Details
H1: LOAD RESISTANCE SETTINGS:
Settings in
order
from
top to bottom:
400 ohm, 47K
ohm, 100 ohm
H2: GAIN SETTINGS: Settings in order from top to bottom: 60 dB,
40 dB, 50 dB
