16

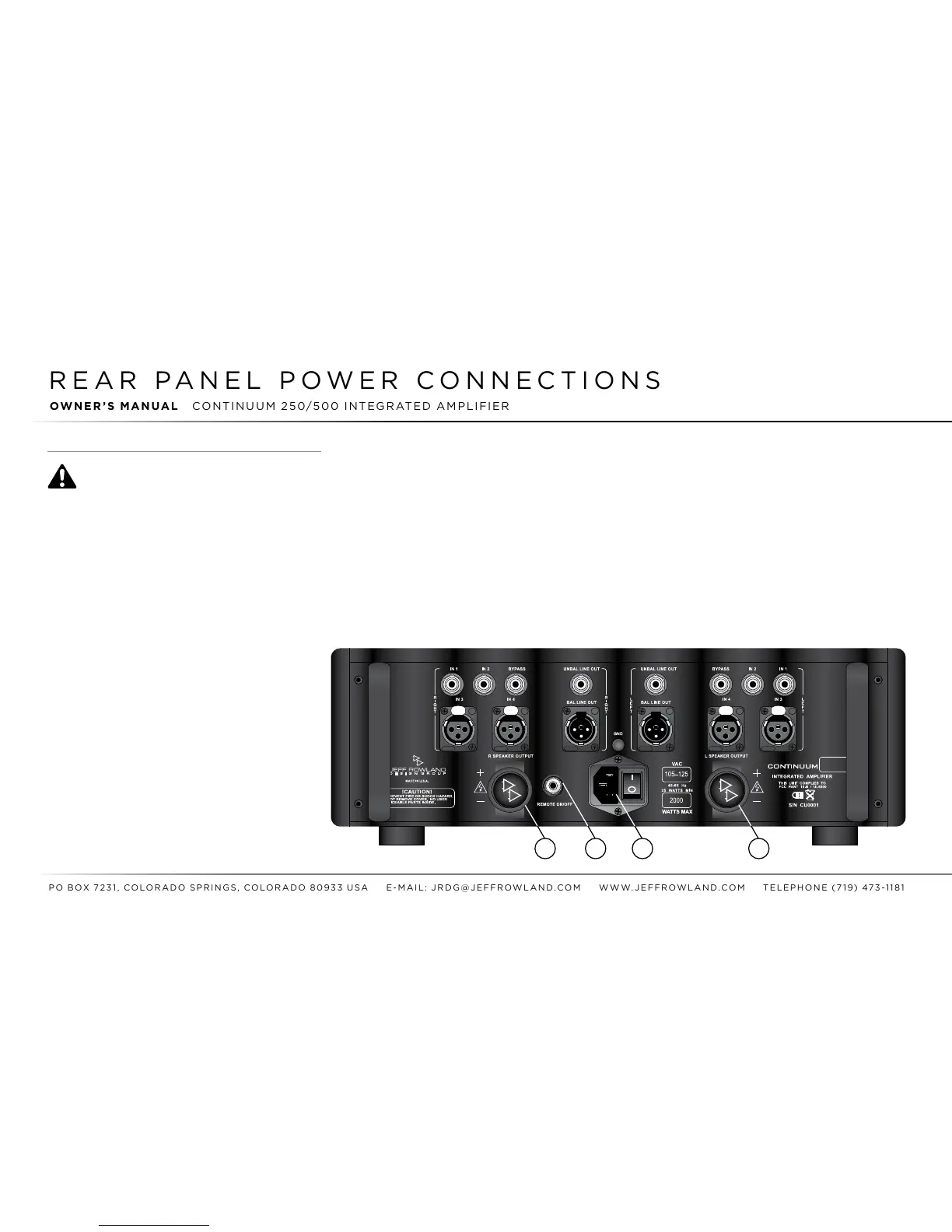

(A) LOUDSPEAKER OUTPUTS: Unscrew the knob that secures the speaker output connec-
tors on both the LEFT SPEAKER OUTPUT and the RIGHT SPEAKER OUTPUT and pull the
securing block out far
enough to allow access to the binding posts. Install the positive (usually
red) loudspeaker cable spade terminal to the positive (+) binding post and the negative spade
terminal to the negative (-) binding post on both the LEFT and RIGHT CHANNEL. Secure the
loudspeaker connections by tightening the knob securely with your fingers. The CONTINUUM
will only accept spade terminated loudspeaker cables. Banana plugs or bare wire connections
can be used but require an optional clamp available from your JRDG Dealer.
WARNING:
Both positive and negative outputs
are
electrically active with respect to chassis
and/or
system ground potential. Therefore, this amplier cannot
be used in certain loudspeaker
switching congurations,
such as those used in retail demonstrations. Failure to
avoid these precautions may short the outputs to ground
and can result in damage to the amplier and will void the
warranty. Certain subwoofer speakers which derive signals
from amplier outputs will require additional circuitry to
properly isolate the amplier output. Please contact JRDG
before connecting these types of subwoofers.
