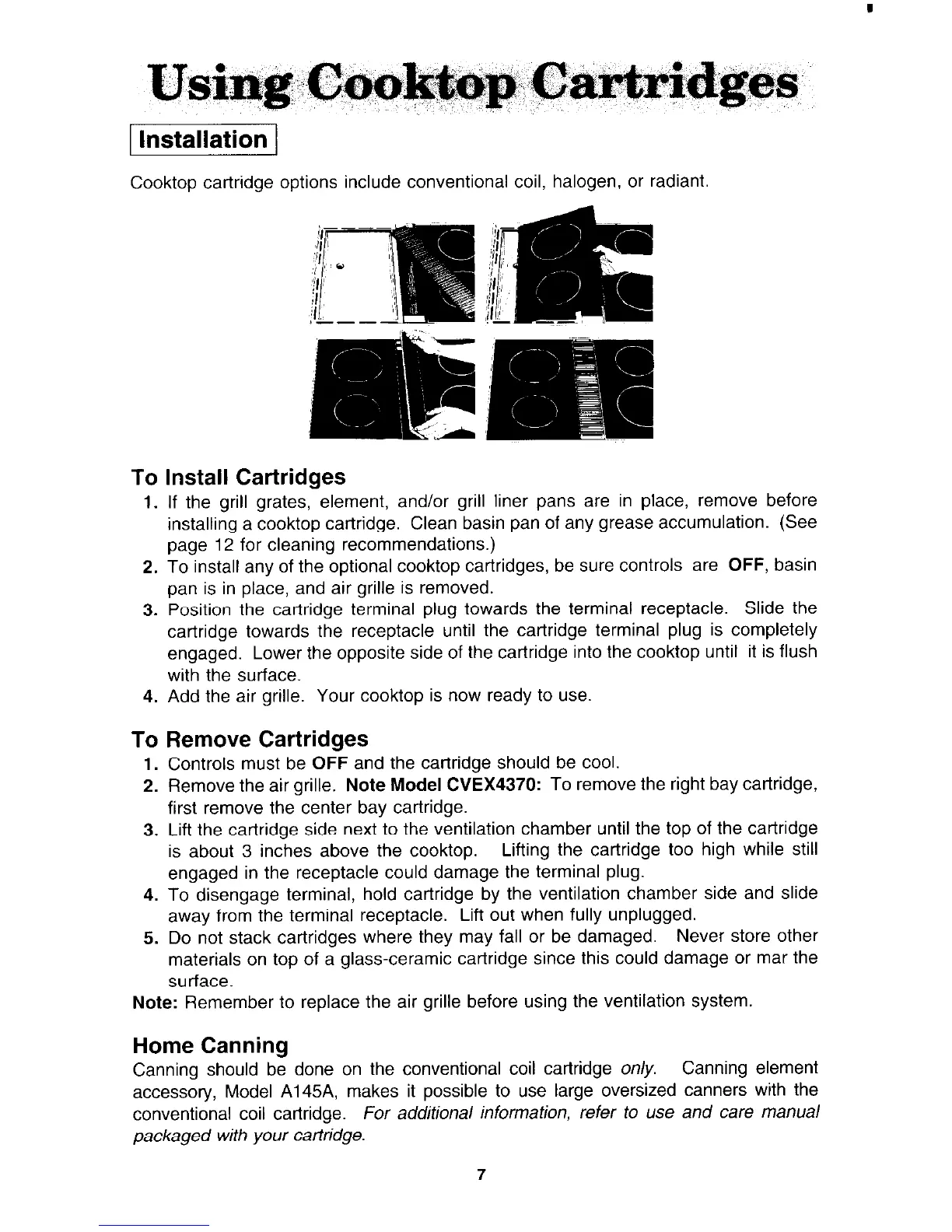

1 Installation 1
Cooktop cartridge options include conventional coil, halogen, or radiant
To Install Cartridges
1. If the grill grates, element, and/or grill liner pans are in place, remove before
installing a cooktop cartridge. Clean basin pan of any grease accumulation. (See
page 12 for cleaning recommendations.)
2. To install any of the optional cooktop cartridges, be sure controls are OFF, basin
pan is in place, and air grille is removed.
3. Position the cartridge terminal plug towards the terminal receptacle. Slide the
cartridge towards the receptacle until the cartridge terminal plug is completely
engaged. Lower the opposite side of the cartridge into the cooktop until it is flush
with the surface.
4. Add the air grille. Your cooktop is now ready to use.
To Remove Cartridges
1. Controls must be OFF and the cartridge should be cool.
2. Remove the air grille. Note Model CVEX4370: To remove the right bay cartridge,
first remove the center bay cartridge.
3. Lift the cartridge side next to the ventilation chamber until the top of the cartridge
is about 3 inches above the cooktop.
Lifting the cartridge too high while still
engaged in the receptacle could damage the terminal plug.
4. To disengage terminal, hold cartridge by the ventilation chamber side and slide
away from the terminal receptacle. Lift out when fully unplugged.
5. Do not stack cartridges where they may fall or be damaged.
Never store other
materials on top of a glass-ceramic cartridge since this could damage or mar the
surface.
Note: Remember to replace the air grille before using the ventilation system.
Home Canning
Canning should be done on the conventional coil cartridge only. Canning element
accessory, Model A145A, makes it possible to use large oversized canners with the
conventional coil cartridge. For additional information, refer to use and care manual
packaged with your cartridge.
