16 16023510 ©2004 Maytag Services
WARNI NG
!
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.

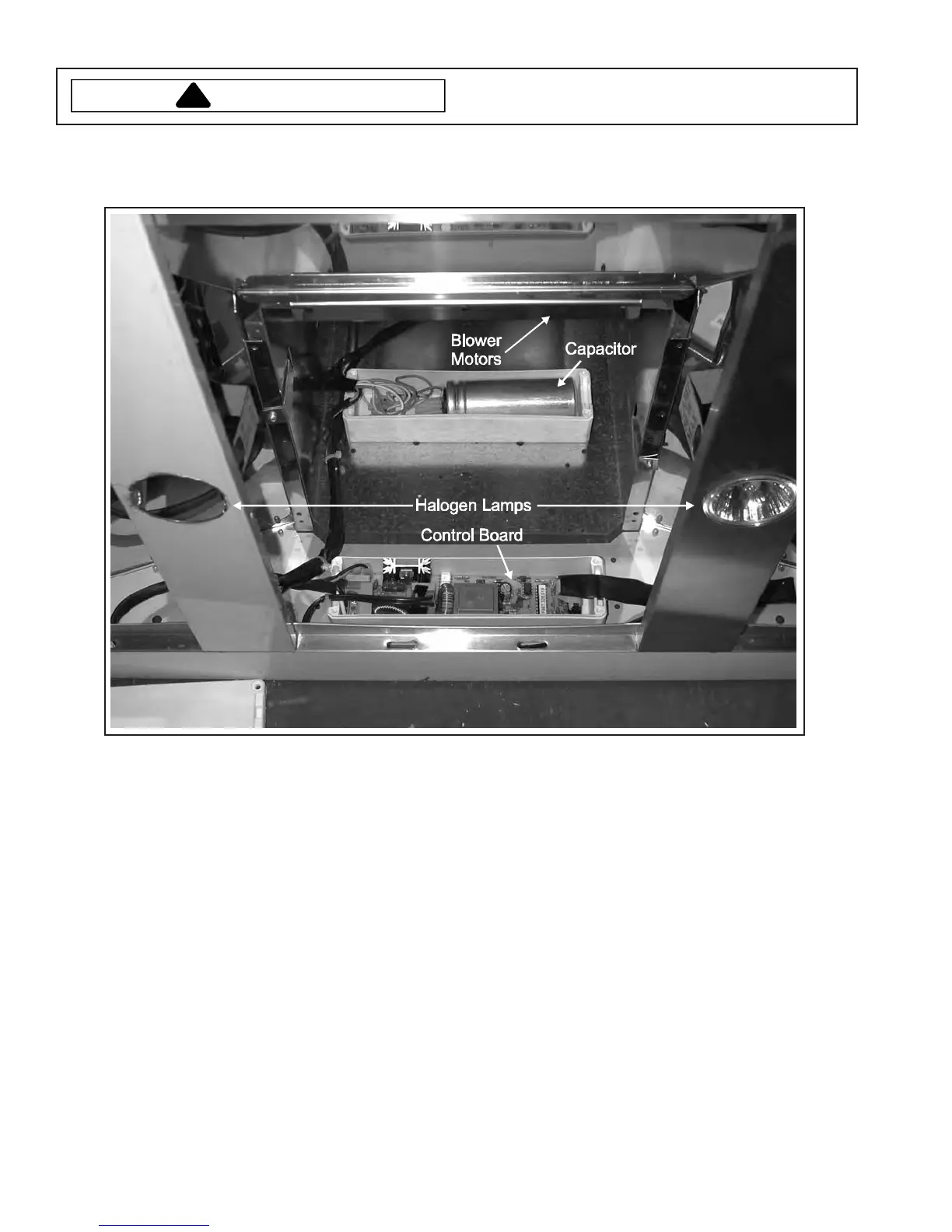

Disassembly Procedures
Disassembly for models JXT8042ADS,
JXT8142ADS, JXT5830AD*, JXT5836AD*
Halogen Light Removal
1. Turn off power to the light bulb.
2. Twist light bulb counterclockwise from the socket.
NOTE: A suction cup may be required for light bulb
removal. One may be obtained from a local
hardware store.
3. Reverse procedure to reinstall light bulb.
Halogen Light Socket Removal
1. Disconnect power to vent hood.
2. Remove halogen light, see "Halogen Light Removal"
procedure.
3. Remove grease filters and covers, see "Grease Filter/
Grease Filter Cover Removal" procedure.
4. Remove light panel, see "Light Panel Removal"
procedure.
5. Remove screws securing light socket and remove
light socket.
6. Reverse procedure to reinstall light socket.
Grease Filter/Grease Filter Cover Removal
1. Turn off power to the blower motors.
2. Remove grease filter covers by using handles and
pulling filter cover toward the rear of the vent hood.
3. Pivot front of grease filter upward, then pull the filter
downwards and toward the rear to remove.
4. Reverse procedure to reinstall grease filters and
grease filter covers.
Control Board Removal
1. Disconnect power to vent hood.
2. Remove center grease filter.
3. Remove screws securing center vent hood cover.
4. Remove screws securing vent hood control cover.
5. Remove vent hood control cover.
6. Slide control board out, label and disconnect wires.
7. Remove control board.
8. Reverse procedure to reinstall control board.
