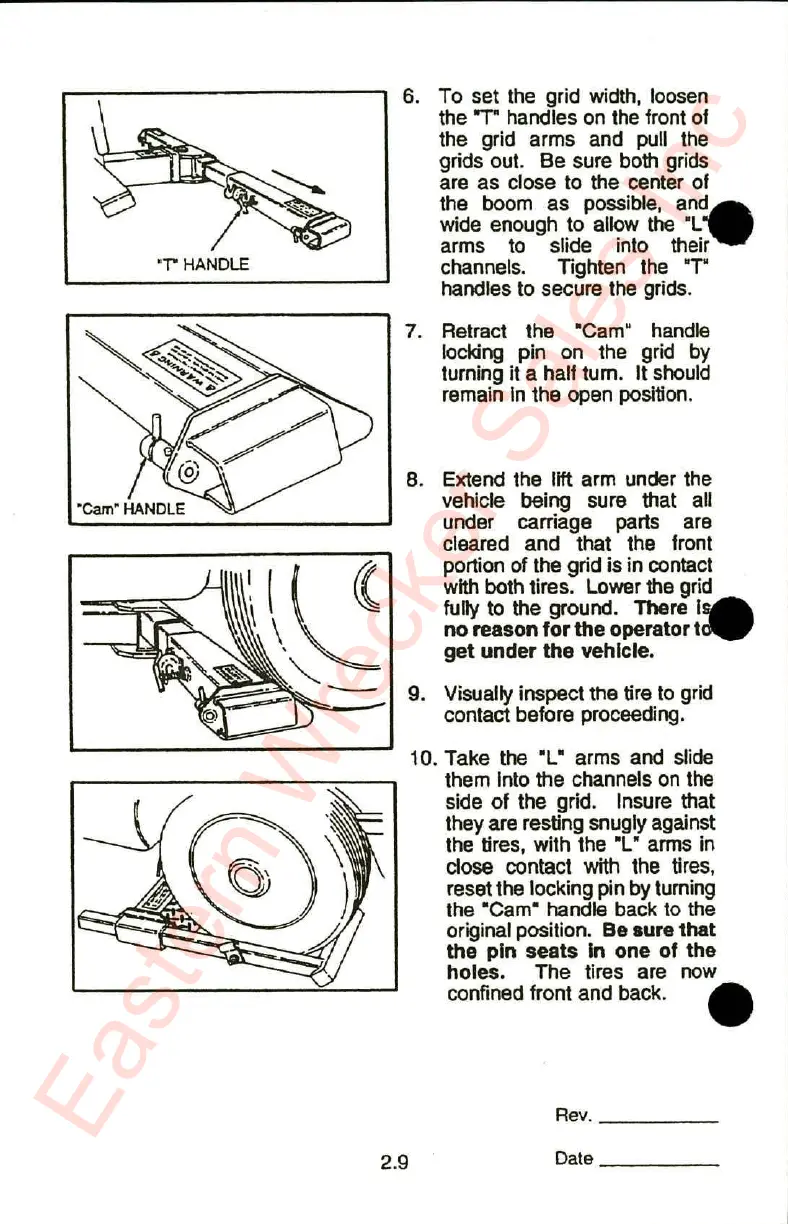

6. To set the grid width, loosen
the
"T"
handles on the front of
the grid arms and pull the
grids out. Be sure both grids
are as close to the center of
the boom as possible, an:.
wide enough to allow the 'L
arms to slide into their
channels. Tighten the
"T"
handles to secure the grids.
7. Retract the 'Cam' handle
locking pin on the grid by
tuming it a half tum. It should
remain In the open position.
B. Extend the lilt arm under the
vehicle being sure that all
under carriage parts are
cleared and that the front
portion of the grid is in contact
with both tires. Lower the grid
fully to the ground. There
I.
no reason for the operator t
get under the vehicle.
9. Visually inspect the tire 10grid
contact before proceeding.
10.
Take the 'L' arms and slide
them Inlo the channels on the
side of the grid. Insure that
they are resting snugly against
the tires, with the 'L' arms In
close contact with the tires,
reset the locking pin by tuming
the 'Cam' handle back to the
original position. Be aure that
the pin seats In one of the
holes. The tires are now
confined front and back. •
Rev. _
2.9
Date _
