Jerr-Dan LIGHT DUTY - Towbar Cylinder

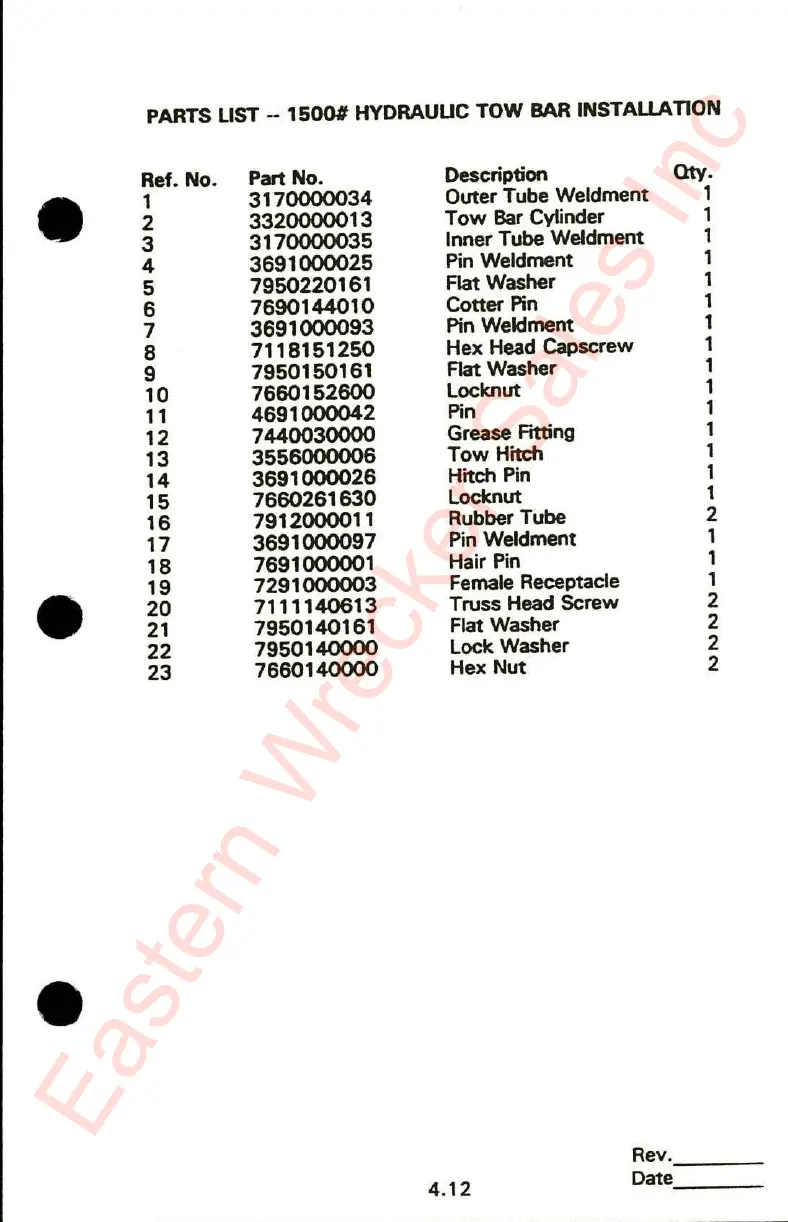

PARTS LIST -- 1500# HYDRAULIC TOW BAR INSTAUATION
Ref. No.
Part No.
Description
Qty.
•
1
3170000034
Outer Tube Weldment
1
2
3320000013
Tow Bar Cylinder
1
3
3170000035
Inner Tube Weldment
1
4
3691000025
Pin Weldment
1
5
7950220161
Flat Washer
1
6
7690144010
Cotter Pin
1
7
3691000093
Pin Weldment
1
8
7118151250
Hex Head Capscrew
1
9
7950150161
Flat Washer
1
10
7660152600
Locknut
1
11
4691000042
Pin
1
12
7440030000
Grease Rtting
1
13
3556000006
Tow Hitch
1
14
3691000026
Hitch Pin
1
15
7660261630
Locknut
1
16
7912000011
Rubber Tube
2
17
3691000097
Pin Weldment
1
18
7691000001
Hair Pin
1
•
19
7291000003
Female Receptacle
1
20
7111140613
Truss Head Screw
2
21
7950140161
Flat Washer
2
22
7950140000
Lock Washer
2
23
7660140000
Hex Nut
2
•
4.12
Rev. _
Date _
Eastern Wrecker Sales Inc
