Jerr-Dan LIGHT DUTY - Page 57

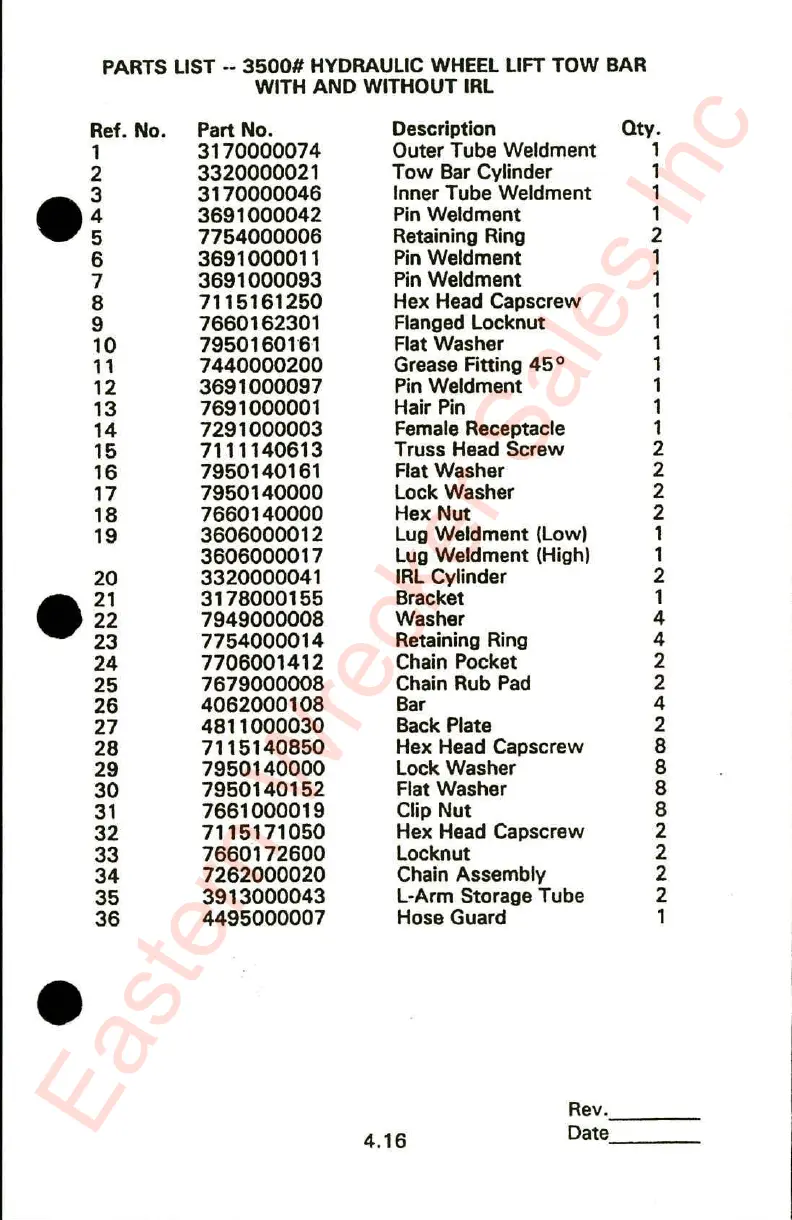

PARTS LIST -- 3500# HYDRAULIC WHEEL LIFT TOW BAR
WITH AND WITHOUT IRL
Ref. No.
1
2
.!
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
•
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
•
Part No.
3170000074
3320000021
3170000046
3691000042
7754000006
3691000011
3691000093
7115161250
7660162301
7950160161
7440000200
3691000097
7691000001
7291000003
7111140613
7950140161
7950140000
7660140000
3606000012
3606000017
3320000041
3178000155
7949000008
7754000014
7706001412
7679000008
4062000108
4811000030
7115140850
7950140000
7950140152
7661000019
7115171050
7660172600
7262000020
3913000043
4495000007
Description
Outer Tube Weldment
Tow Bar Cylinder
Inner Tube Weldment
Pin Weldment
Retaining Ring
Pin Weldment
Pin Weldment
Hex Head Capscrew
Flanged Locknut
Flat Washer
Grease Fitting 45
0
Pin Weldment
Hair Pin
Female Receptacle
Truss Head Screw
Flat Washer
Lock Washer
Hex Nut
Lug Weldment (Low)
Lug Weldment (High)
IRL Cylinder
Bracket
Washer
Retaining Ring
Chain Pocket
Chain Rub Pad
Bar
Back Plate
Hex Head Capscrew
Lock Washer
Flat Washer
Clip Nut
Hex Head Capscrew
Locknut
Chain Assembly
L-Arm Storage Tube
Hose Guard
Qty.
1
1
1
1
2
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
4
4
2
2
4
2
8
8
8
8
2
2
2
2
1
4.16
Rev.
----
Date
----
