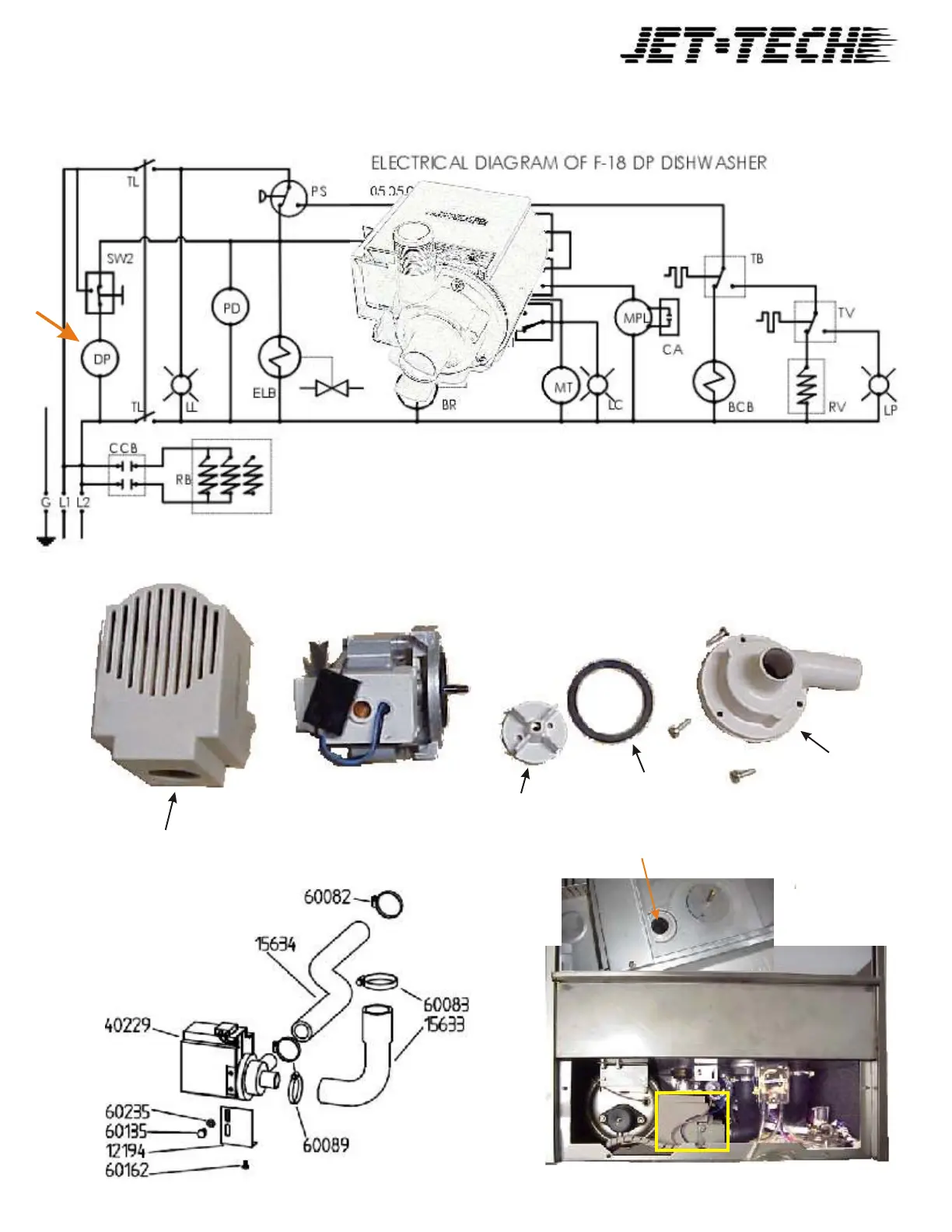

Jet-tech F18 - Drain Pump (40229); Parts and Location

DRAIN PUMP 40229
Drain Pump Location
Drain opening in wash tank
20
TL- Power Switch
PS- Pressure Switch
SW2- Drain Switch
CR1 + CR2 - Micro Relay Switches
M1 + M2 + M3: Timer Cam Switches
TC- Start Switch
MP - Door Switch
TB - Thermostat
TV - Thermostat
CCB - Booster Contactor Contacts
ELB - Solenoid Coil
PD - Soap Pump
BR - Micro Relay coil
BCB - Booster Contactor coil
RV - Wash Tank Heater Element
RB - Booster Tank Heater Element
DP - Drain Pump
MT - Timer Motor
MPL - Wash Pump Motor
LL - Indicator Light - Power
LC - Indicator Light - Wash Cycle
LP - Indicator Light - Temperature Ready
CA - Capacitor - wash pump
40128
40115
40127
40129
