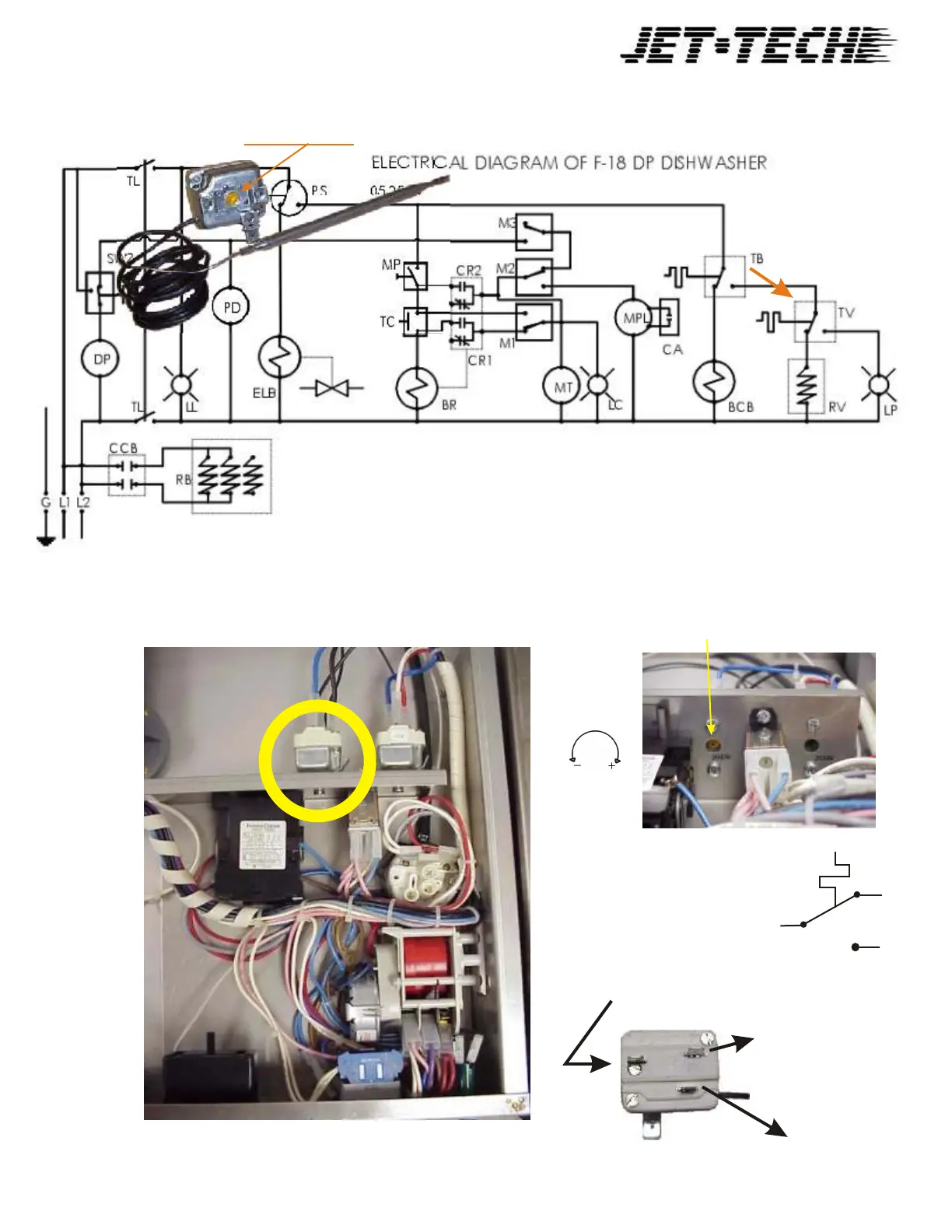

Jet-tech F18 - Wash Thermostat (20570); Wiring and Connections

THERMOSTAT 20570
1
2
3
160F +/- 2160F +/- 2
1
2
3
Nc
No
C
Orange paint
To ready light
(small black)
To wash heater element
(Large black)
From rinse thermostat (blue)
G
9
TL- Power Switch
PS- Pressure Switch
SW2- Drain Switch
CR1 + CR2 - Micro Relay Switches
M1 + M2 + M3: Timer Cam Switches
TC- Start Switch
MP - Door Switch
TB - Thermostat
TV - Thermostat
CCB - Booster Contactor Contacts
ELB - Solenoid Coil
PD - Soap Pump
BR - Micro Relay coil
BCB - Booster Contactor coil
RV - Wash Tank Heater Element
RB - Booster Tank Heater Element
DP - Drain Pump
MT - Timer Motor
MPL - Wash Pump Motor
LL - Indicator Light - Power
LC - Indicator Light - Wash Cycle
LP - Indicator Light - Temperature Ready
CA - Capacitor - wash pump
