Collector Bag Installation – DC-1200C/RC
1. Place the ring over the top of the plastic bag and
fold over the bag approximately three inches,
Figure 9.
2. Insert the snap ring (A, Fig. 10) of the collector
bag into the bottom of the housing at an angle.
3. Pull down on the ring to make sure it “seats” in the
housing.
Note: make sure the snap ring “snaps” into place
in the housing, and also that the plastic bag
hangs down approximately 3” so that there are no
air leaks.
Canister Filter Assembly and Installation –
DC-1200C/RC
4. Mount the handle onto the canister filter with two
M10 hex nuts, two M10 flat washers, and a M10
lock washer (Figure 11).
5. Mount the canister filter on top of the collector
housing (A, Fig. 5) and tighten the knobs on the
canister filter (Figure 11).

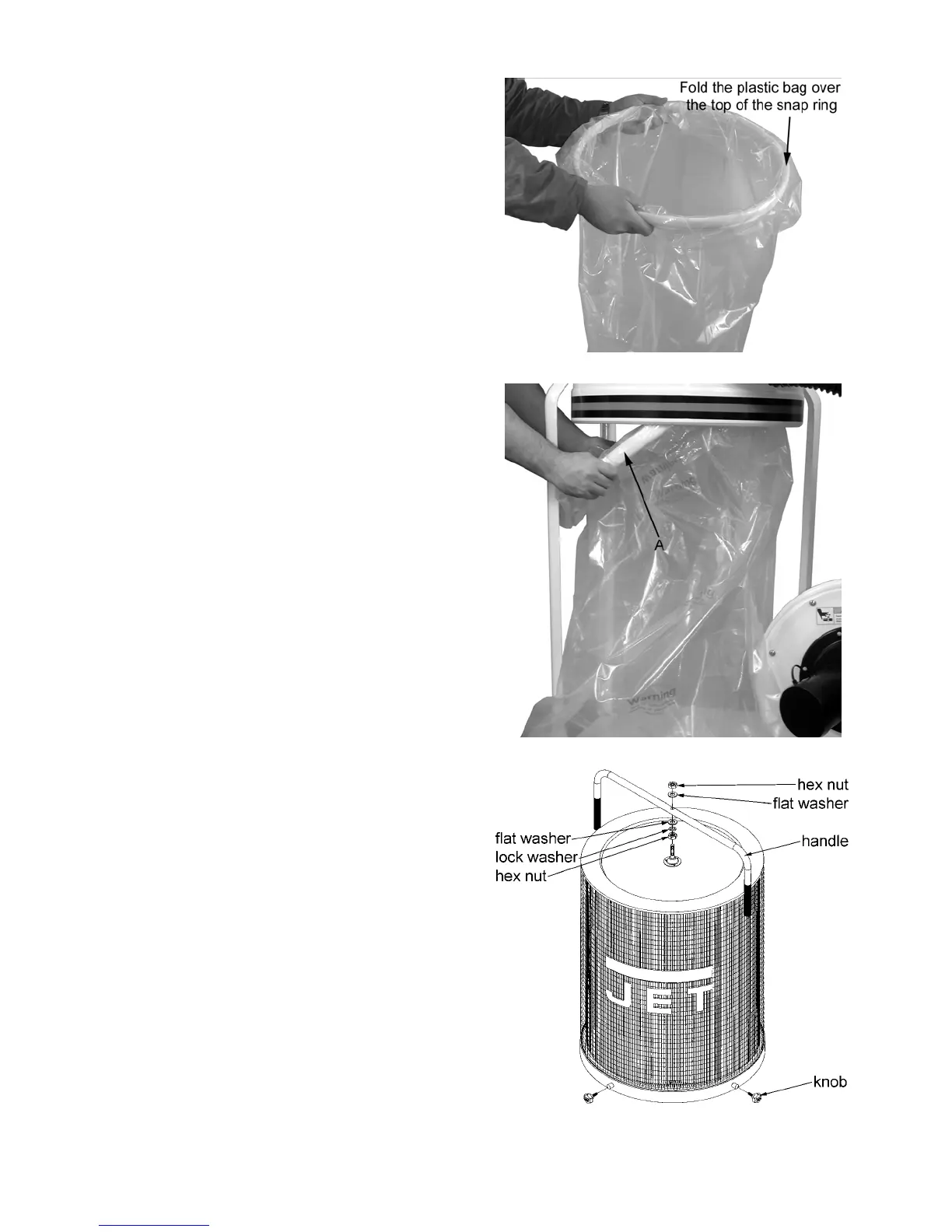

Figure 9
Figure 10
Figure 11
