Jet GHD-20 Operating Instructions And Parts Manual

7
Unpacking
Contents of the Shipping Container
1 Gear Head Drill Press
1 Lug Wrench
1 Can of White Touch-Up Paint
1 Drill Chuck Arbor (MT-3 x JT-6)
1 Drawbar
1 Drift Key
1 Crank
1 Handle
3 Downfeed Handles (GHD-20/20T only)
3 Knobs (two with GHD-20PF/20PFT)
1 3mm Hex Wrench
1 4mm Hex Wrench
1 5mm Hex Wrench
1 Main Shaft Cover
1 Owner's Manual
1 Warranty Card
1. Finish removing the contents of the shipping
container.
2. Compare the contents of the shipping container with
the list above. Report any shortages or damage to
your JET distributor.
3. Clean all rust protected surfaces with kerosene or a
light solvent. Do not use lacquer thinner, paint
thinner or gasoline. These will damage plastic
components and painted surfaces.
Assembly
1. Slide crank (A, Figure 1) onto the table raising
assembly shaft.
2. Tighten the set screw (B, Figure 1) to hold the crank
in place
3. Install the handle (C, Figure 1) onto the crank
4. For the GHD-20/20T, install three handles with knobs
(A, Figure 2) into the downfeed hub. For the GHD-
20PF/20PFT, screw two knobs onto the handles of
the power downfeed assembly.
5. Install chuck guard by sliding the support bar up into
the base mounted to the head. Tighten screws.

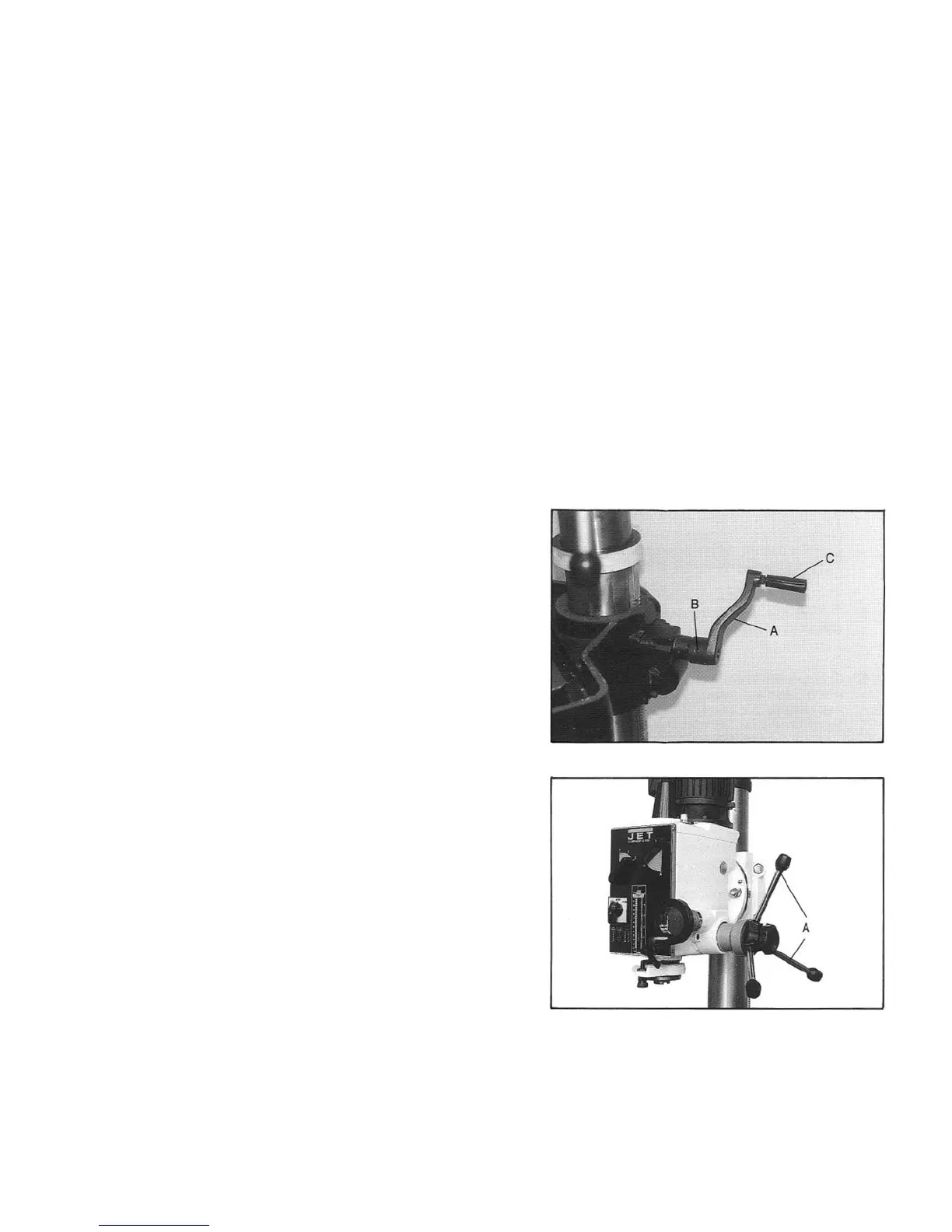

Figure 1
Figure 2
